Product Details:
|
| Name: | 14 Gauge Stainless Steel Lacing Hook Anchors | Head Thickness: | 1.0mm |
|---|---|---|---|
| Material: | Stainless Steel | Head Size: | 22mm Or 30mm |
| Feature: | Easy Bending, Easy Installation | Pin Diameter: | 14ga, 12ga Is Standard |
| Application: | Insulation Covers, Insulation Blankets | Pin Length: | 4-1/2" Or 2-1/2" Is Standard |
| Samples: | Supported | Self Locking Washer Size: | 25mm |
| High Light: | 14 gauge stainless steel lacing anchors,stainless steel lacing hook anchors,thermal insulation stainless steel lacing anchors |
||

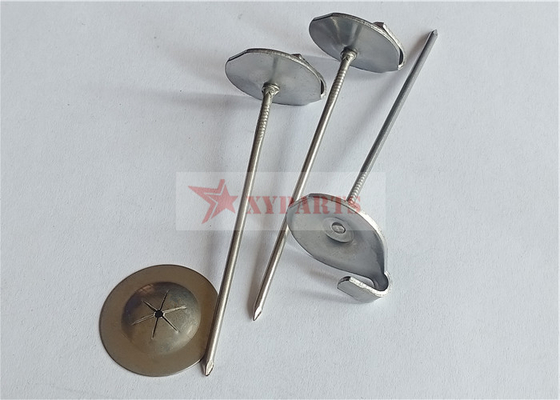

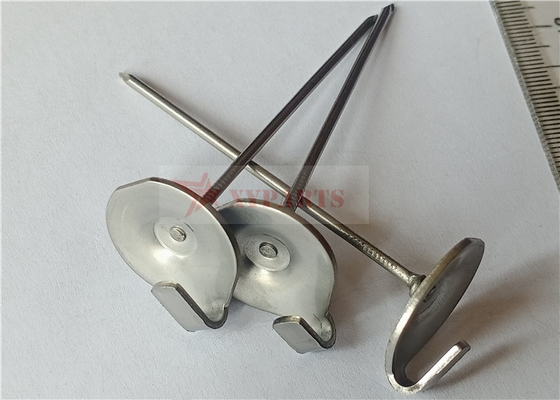

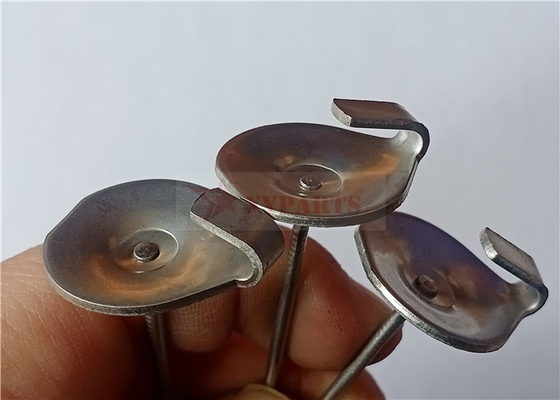

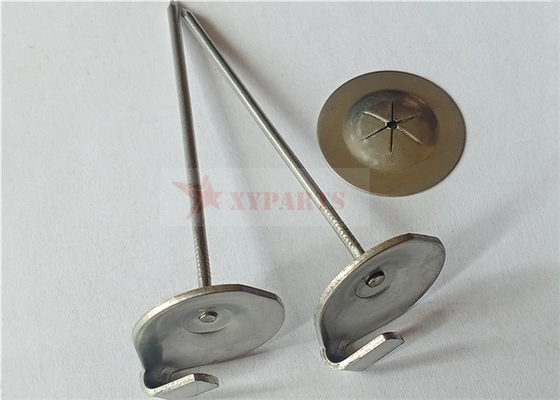

14 Gauge Stainless Steel Lacing Hook Anchors are used for such thermal insulation products,
such as expansion joints and removable/reusable thermal insulation blankets.
|
Item: 14 Gauge Stainless Steel Lacing Hook Anchors For The Fabrication Of Thermal Insulation Products Manufacture: Xiangyi Parts Material: Stainless Steel Head Thickness: 1.0mm Head Diameter: 22mm Hook Size: 5x11mm Hook Thickness: 1.0mm Pin Diameter: 2.0mm (other diamter also available) Pin Length: 63.5mm (other length also available) Self Locking Washer Material: Stainless Steel Self Locking Washer Size: 25mm
|
|
 |
|
1. Stainless steel is a popular material while this lacing hook anchors is also made in mild steel.
2. Stamped "no ab" to denote 'no asbestos'.
3. The tabbed head is about 7/8" (22mm) diameter or 1-1/5" (30mm) diameter.
4. The nail can be 12 gauge (2.7mm) or 14 gauge (2.0mm) or others in pin diameter.
5. 2-1/2" (63mm )& 4-1/2" (114mm) are standard pin length
6. Typical application is for the fabrication of removable insulation blankets or covers of pads.
| Origin | Hebei, China |
| Factory | Xiangyi Metal Products Co.,Ltd |
| Name | Stainless Steel Lacing Hook Anchors With Self-locking Washers |
| Material | stainless steel |
| Head | one side is stamped with "A" "B" |
| Head Type | round or rectangle |
| Head Size | 22mm, 30mm, |
| Head Thickness | 1mm |
| Hook Size | 5mmx11mm or 5mmx15mm |
| Pin Diameter |
2mm, 2.7mm etc. |
| Pin Length | 63.5mm, 114mm etc. |
| Self-locking Washer Size | 25mm etc. |
| Self-locking Washer Thickness | 0.4mm etc. |
| Self-locking Washer Material | stainless steel |
|
|
|
Item: Stainless Steel Lacing Washers Material: Stainless Steel Diameter: 1" / 25mm Thickness: 1mm Type: With two 3/16" / 5mm hole in the center |
|
Item: Stainless Steel Lacing Hook Washers Material: Stainless Steel Diameter: 7/8" / 22mm Thickness: 1mm Type: With one 3/16" / 5mm hole in the center Hook Size: 5x11mm |
|
Item: Stainless Steel Lacing Anchor Washers Material: Stainless Steel Diameter: 7/8" / 22mm Thickness: 1mm Type: With two 3/16" / 5mm hole in the center Hook Size: 5x11mm |
|
Item: Stainless Steel Lacing Rings Material: Stainless Steel Ring Diameter: 30mm Wire Diameter: 3mm |
|
Item: Stainless Steel Lacing Rings Material: Stainless Steel Ring Diameter: 25x30mm Wire Diameter: 1mm |
