Product Details:
|
| Name: | Insulation Lacing Anchors | Usage: | For Heat Blanket Ship Pipeline Heat |
|---|---|---|---|
| Lacing Anchor Size: | 63.5 Mm, 114mm In Standard | Length Custom: | The Pin Length Can More Than 300 Mm |
| Standard Pin: | 14 Ga , 12 Ga | Material: | 1mm Stainless Steel In Standard |
| Pin Treatment: | Anneaded Soft Wire | Material Type: | A2 In Common |
| High Light: | Insulation lacing anchor,stainless steel insulation anchors,heat blanket lacing anchors |
||

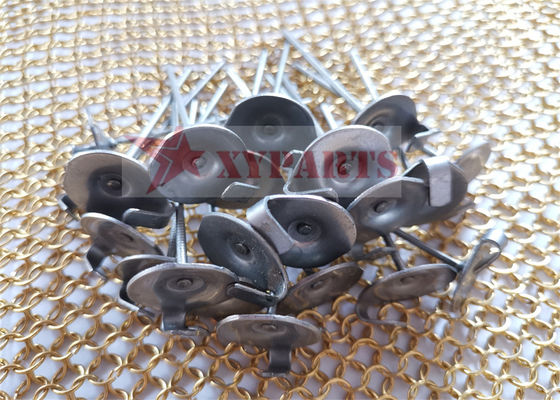

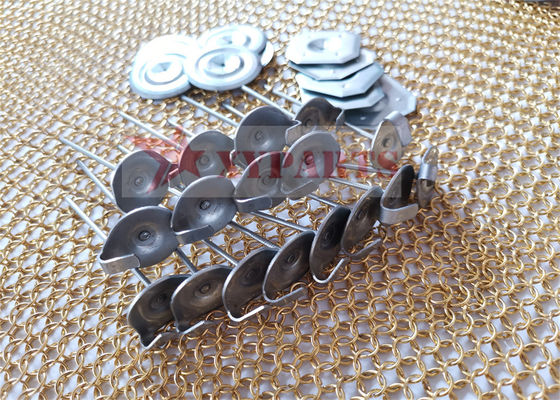

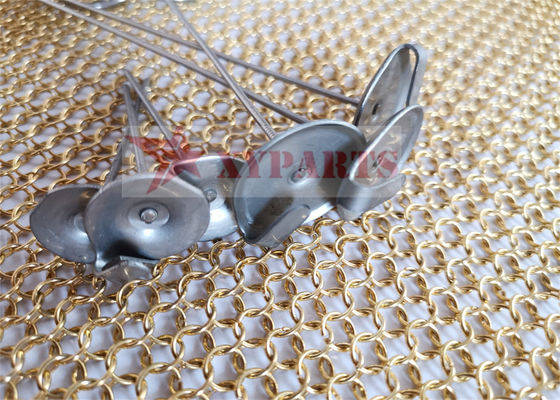

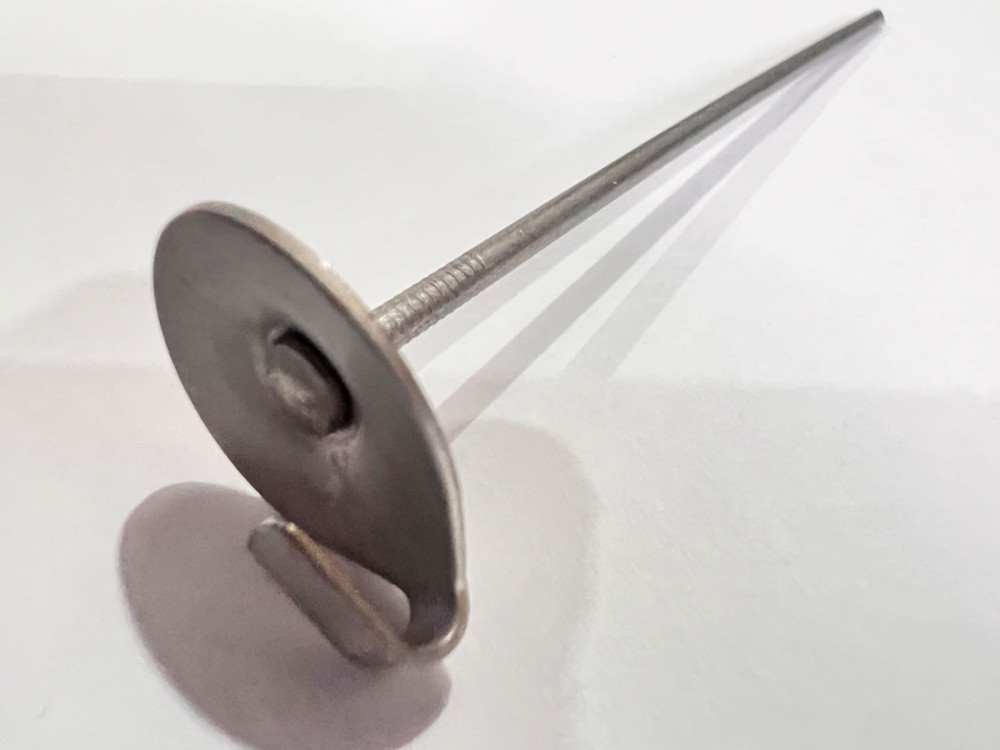

1. Material type: A2
2. Material details: stainless steel 304 in common
3. Round hook base is made of the hardness stainless steel plate, the pin is made of soft stainless steel wire, and the wire is 2mm in common, others to be your request.
4. Insulation lacing anchor is one kind of connect fasteners , usually used for fixing remover balanket with other fixing parts. why choose lacing anchors? the important reason is that insulation lacing anchor is speed clips, installation is very easy and speed and firmly.
|
head size
|
thickness
|
hook size
|
pin diameter
|
pin length
|
|
22mm
|
1mm
|
5mmx11mm
|
2mm-3mm
|
38mm-300mm
|
|
30mm
|
1mm
|
5mmx15mm
|
2mm-3mm
|
38mm-300mm
|
|
20mmx25mm
|
1mm
|
5mmx11mm
|
2mm-3mm
|
38mm-300mm
|
For the fixing parts for insulation lacing anchors, usually made of stainless steel materials, Characteristics of corrosion resistance and high temperature resistance. common material is stainless steel 304, others you can choose stainless steel 304L, 316, 316L.
 |
|
Lacing Anchors are used in the fabrication of insulation blankets or removable covers/pads. The nail is pressed through the insulation material, so the hook portion sits on the top edge and the nail is secured on the opposite side of the insulation with a washer. The two sides of the blanket can then be "laced" together by the hooks with tie wire.
1.How to make a inquiry of square self locking washers ?
You need to provide material, clips size and thickness ,nail size and the quantity to ask an offer, you can also indicate if you have any special requirement. The formal quotatiom list will be send to you after receiving the inquiry
2.Could you provide free sample with square self locking washers ?
Yes, Free sample is possible. But the courier charge will on your side.and the courier charge will be send back to you if you place an order.
3.What is the Payment Term ?
Generally, our payment term is T/T 30% in advance and the balance 70% against the copy of B/L. Other payment term we can also discuss.
4.Do you any certificate ?
Yes , Such as ISO9001:2015
