280MM Stainless Steel Lacing Hook Insulation Pins

I'm Online Chat Now

280MM Stainless Steel Lacing Hook Insulation Pins

280MM Stainless Steel Lacing Hook Insulation Pins
280MM Stainless Steel Lacing Hook Insulation Pins 280MM Stainless Steel Lacing Hook Insulation Pins 280MM Stainless Steel Lacing Hook Insulation Pins 280MM Stainless Steel Lacing Hook Insulation Pins 280MM Stainless Steel Lacing Hook Insulation Pins

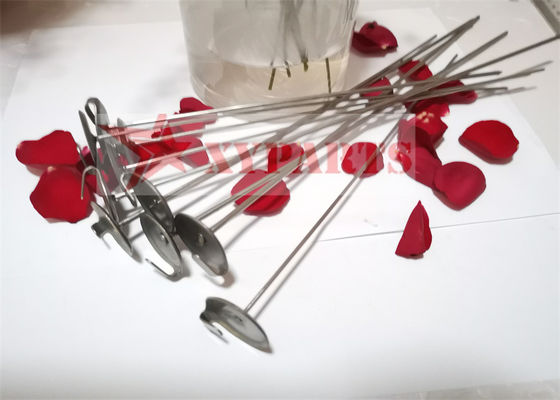

Large Image :  280MM Stainless Steel Lacing Hook Insulation Pins

Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: HOOK-30
Payment & Shipping Terms:
Minimum Order Quantity: 5000 pcs
Packaging Details: 500 PCS per carton
Delivery Time: 8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,by alibbaba
Supply Ability: 10000 pcs oer hour

280MM Stainless Steel Lacing Hook Insulation Pins

Description
Name: Lacing Hook Insulation Pins Hook Size: 30mm X1mm
Type: Round Hook Head Anchor Pin Diameter: 2mm
Pin Length: 280mm
High Light:

280MM insulation lacing anchors

,

30mmx1mm insulation lacing anchors

,

Lacing Hook Insulation Pins



280MM Fastening System Accessories Stainless Steel Lacing Hook Insulation Pins




Specification details of lacing hook insulation pins



part No. Base size hook size Pin material pin length
XY30-250 30mm 5mmx15mm anneaded steel / stainless steel 250mm
XY30-280 30mm 5mmx15mm anneaded steel / stainless steel 280mm



Description details of lacing hook insulation pins

The slim style lacing hook insulation pins anchor, an insulation fastener, is a fabricated metal anchor consisting of a pin and tabbed, or hooked, washer. Stainless steel is a popular material while this type lacing anchors is also made in mild steel. Stamped "no ab" to denote 'no asbestos', the tabbed head is about an inch across, and 7/16" wide. The nail can be 12 gauge or 14 gauge in pin diameter.



Image details of the lacing hook insulation pins

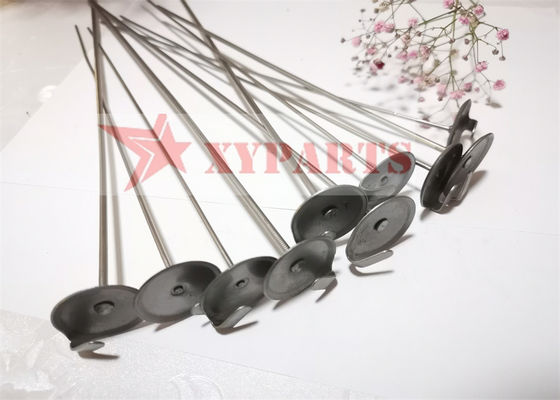

280MM Stainless Steel Lacing Hook Insulation Pins 0

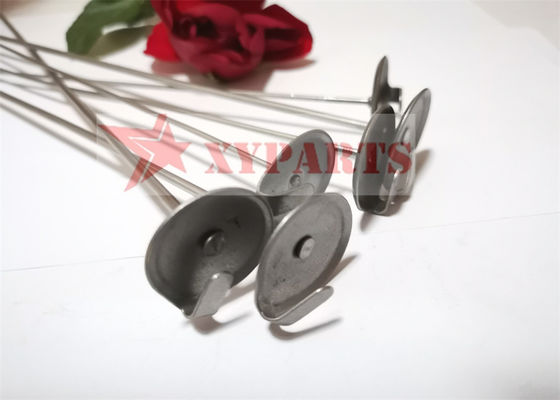

280MM Stainless Steel Lacing Hook Insulation Pins 1

Applications of lacing hook insulation pins



Lacing hook insulation pin installation:

Lacing hook insulation pins are used in the fabrication of insulation blankets or removable covers/pads. The nail is pressed through the insulation material, so the hook portion sits on the top edge and the nail is secured on the opposite side of the insulation with a washer. The two sides of the blanket can then be “laced” together by the hooks with tie wire.

  • Rooftop insulation (can be applied under shingles)
  • Process piping and tanks
  • Petrochemical processing
  • Refineries and manufacturing plants
  • Hot and cold food processing
  • Wine tank insulation
  • Retort ovens
  • Refrigerated rooms and buildings
  • Heat conservation applications
  • Boats and ships

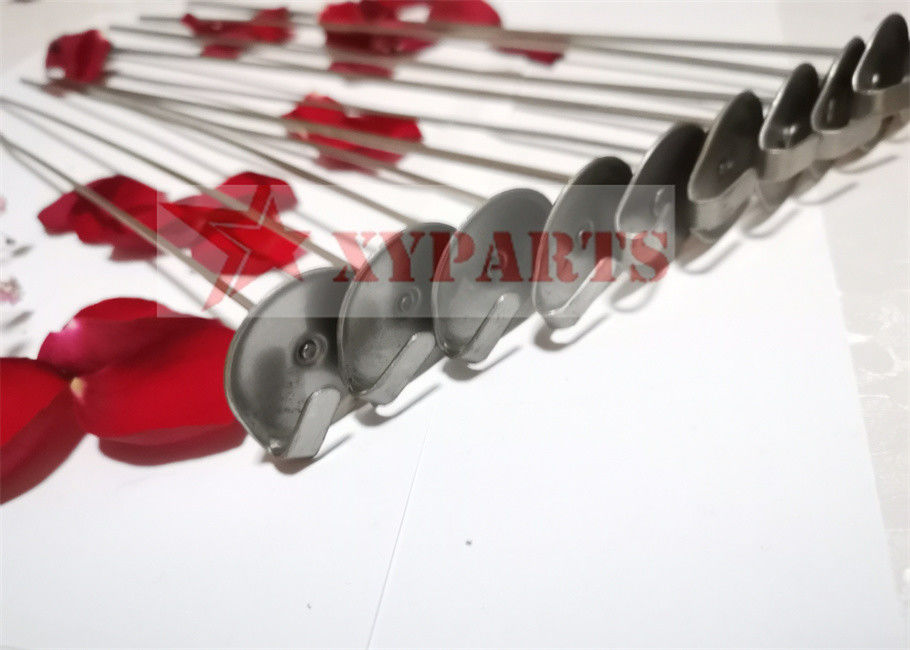

280MM Stainless Steel Lacing Hook Insulation Pins 2



Package details of lacing hook insulation pins



Product Size(mm) Quantity Caton(cm) Weight
Lacing Anchors 14Gauge * 250 1000Pcs 26 * 26 * 18 13.5kgs
Lacing Anchors 14Gauge*  250 1000Pcs 26 * 26 * 25 16.5kgs

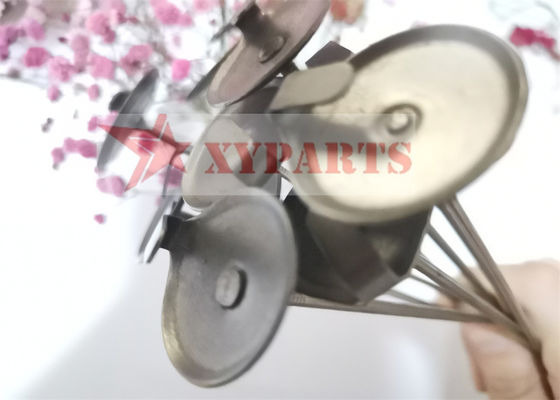

280MM Stainless Steel Lacing Hook Insulation Pins 3


HEBEI XIANGYI METAL PRODUCT CO., LTD



Our production includes a full line of insulation fasteners:

  • Self adhesive insulation pins
  • Insulation hangers, Insulation anchors
  • Lacing anchor, Lacing ring
  • Cup head weld pins
  • Perforated base pins
  • Quilting pins & Duct liner pins
  • CD weld pins
  • Self locking washers & dome caps
  • Insulation Impaling Clips
  • drive pins

280MM Stainless Steel Lacing Hook Insulation Pins 4

  • One-to-one order service
  • Door to door logistics service
  • Cartographic confirmation service
  • Processing customization service
  • Packaging design service
  • Document making service
  • Inspection and inspection service

280MM Stainless Steel Lacing Hook Insulation Pins 5

Why choose HEBEI XIANGYI METAL PRODUCT CO.,LTD

1. we could supply metal stamping service,CNC machining service,laser cutting service and welding service.
2. Years of production experience, successful completion of different specifications of products, complete mold.
3. Advanced production equipment and guaranteed product quality.
4. Timely freight arrangement, no delay, and door-to-door freight service
5. Sample service. General specifications are provided free of charge. Customers are required to provide sample fees for customized products. After the order is completed, it will be deducted from the purchase price.
6. We can provide customized packaging for you.
