Stainless Steel Lacing Hangers With Washers For Removable Insulation Blankets

I'm Online Chat Now

Stainless Steel Lacing Hangers With Washers For Removable Insulation Blankets

Stainless Steel Lacing Hangers With Washers For Removable Insulation Blankets
Stainless Steel Lacing Hangers With Washers For Removable Insulation Blankets Stainless Steel Lacing Hangers With Washers For Removable Insulation Blankets

Large Image :  Stainless Steel Lacing Hangers With Washers For Removable Insulation Blankets

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: SS-LA1463
Payment & Shipping Terms:
Minimum Order Quantity: 10000 sets
Packaging Details: cartons+ wooden pallet or packed as request.
Delivery Time: within 12 days
Payment Terms: L/C,T/T
Supply Ability: 100000 sets per week

Stainless Steel Lacing Hangers With Washers For Removable Insulation Blankets

Description
Name: Lacing Hangers With Washers Material: SS 304, SS 316, Mild Steel
Pin Dia: 14Ga,12Ga Pin Length: 38mm-120mm , Could Be Customized
Washers Size: 25mm In Common Usage: Fixing Removable Blankets
Related Parts: Speed Clips , Lacing Rings, Tie Wire, Lacing Hooks Sample: Yes
High Light:

ss 304 lacing anchor

,

stainless steel lacing anchor with washers

,

removable insulation blankets lacing anchor

Stainless Steel Lacing Hangers With Washers For Removable Insulation Blankets

Details of the lacing hangers with washers

Lacing Anchor is a type of insulation fastener, it forms by lacing hangers and self locking washers /speed clips. that is used to secure removable&reusable insulation blanket or covers, Push the lacing anchors through the front of insulation blanket or cover during installation, one the reverse side, use a self locking washer to lock the lacing anchor. Finally, using the tie lacing wire to tie the hook(anchor) so that the insulation blanket or cover is fixed in place.

Lacing Anchors are available in stainless steel or low carton steel, the pin diameter is available in 12 Gauge& 14 Gauge, the pin length is available in 1-1/2", 2-1/2",3-1/2" or 4-1/2" etc. Round head or Rectangular Head Lacing Anchors are available. others are available by special order.

  • Material: stainless steel 304/316 in common
  • Pin diaemter:12Ga,14Ga or customized dia
  • Pin length: 1/ 1/2''- 4 1/2'', customized length is also okay.
  • Head types: 22m round head hook
  • Stamped "NO AB" to denote 'no asbestos', the tabbed head is 7/8" in diameter.
  • Other parts: self speed clips, dome cap washer, Lacing wire, lacing ring, lacing hook and lacing washer
  • Washers size :22mm,25mm,30mm in common.
Product name
Lacing anchors
Material
Low Carbon Steel, 304 Stainless Steel. Material specifications or certification available upon request.
Finish
Mild Steel pins are galvanized, Mild Steel tops are zinc plated.
Hooks size
22mm in common with 1mm T plate
Washers
Selflocking washers are available in a variety of sizes, shapes and materials
NO-AB
Furnished stamped NO AB to indicte non-asbestos materials
Size-D
12GA and 14GA are standard, other sizes are available for special order
Size-L
1.5" and 4.5" are standard, other sizes are available for special order





ICommon type of the lacing hangers with washers

NAME  Material Pin Diameter Pin Length Quantity Per Box Washers size
 Lacing Anchors SS , Mild steel 14Ga,12Ga 1 1/2'' 2000 Pieces 25/30/38mm
Lacing Anchors SS , Mild steel 14Ga,12Ga 2 1/2'' 2000 Pieces 25mm/3038mm
Lacing Anchors SS , Mild steel 14Ga,12Ga 3 1/2'' 1000 Pieces 25mm/3038mm
Lacing Anchors SS , Mild steel 14Ga,12Ga 4'' 1000 Pieces 25mm/3038mm
Note The pins size and washers could be customized as request.

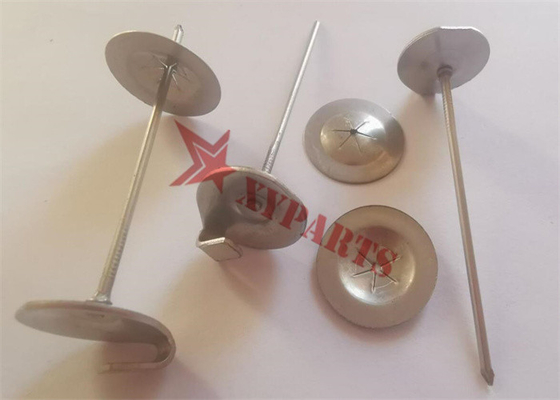

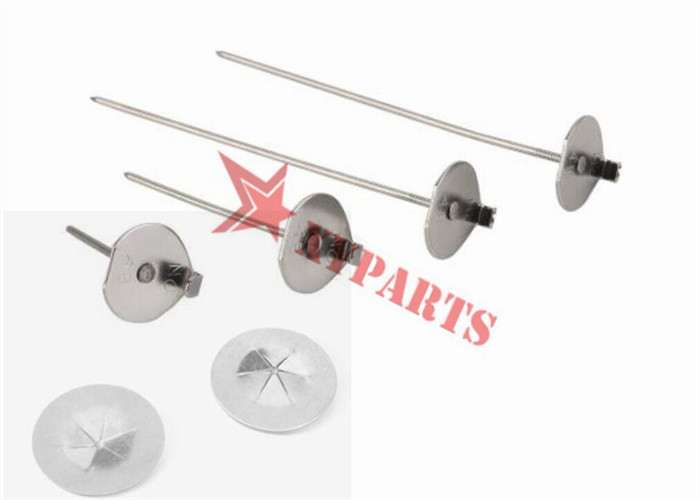

Images of Lacing hangers & washers



Stainless Steel Lacing Hangers With Washers For Removable Insulation Blankets 0Stainless Steel Lacing Hangers With Washers For Removable Insulation Blankets 1

Applications of the Lacing hangers & washers

  • Rooftop insulation (can be applied under shingles)
  • Process piping and tanks
  • Petrochemical processing
  • Refineries and manufacturing plants
  • Hot and cold food processing
  • Wine tank insulation
  • Retort ovens
  • Refrigerated rooms and buildings
  • Heat conservation applications
  • Boats and ships

How to install the Lacing hangers & washers

1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
