1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork

I'm Online Chat Now

1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork

1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork
1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork
1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork 1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork 1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork 1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork

Large Image :  1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork

Product Details:
Place of Origin: China
Brand Name: XIANGYI
Certification: ISO 9001
Model Number: Quilting Pins
Payment & Shipping Terms:
Minimum Order Quantity: 20000pcs
Packaging Details: 1.900pcs per catton 2.then on pallet 3.to be request
Delivery Time: 15 days after confirm the order
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 per week

1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork

Description
Product Name: Quilting Pins Material: Carbon Steel ,stainless Steel ,copper
Base Dia: 30mm In Common Pin Dia: 2.7mm,2.0mm Are In Common
Surface Treatment: Copper Plated Or Galvanized Packing: Carton Or Pail
Sample: Free
High Light:

12 gauge quilting pin

,

stainless steel quilting pin

,

insulation ductwork quilting pin

Quilting Pin 1" Long Pin X 12 Gauge Stainless Steel For Insulation Duct Work



Quick details of Insulation Quilting Pins


Insulation quilting pins are stainless steel pins that help simplify the installation of insulation materials by
securing the insulation to duct work and other HVAC metals and housings. Quilting pins are made up of
a weld pin and a retaining head. They can also be used as a hookless lacing anchor to secure insulation
inside fabricated blankets. Insulation quilting pins come in standard sizes of 2-1/2” and 4-1/2”, but other
lengths are available upon request. They are typically made of mild steel and stainless steel in 12 and
14 gauge. View our selection of quilting pins below!



Specification of Insulation Quilting Pins



base size base material pin diameter pin length pin material finished
20MM mild steel, stainless steel, copper 2.7MM,3MM, 3.4MM 10MM, 25MM, 38MM mild steel, stainless steel, copper zinc/ copper plating
25mm mild steel, stainless steel, copper 3mm 10mm-65mm mild steel, stainless steel, copper zinc/ copper plating
30mm mild steel, stainless steel, copper 3.4mm 10mm-65mm mild steel, stainless steel, copper zinc/ copper plating
custom custom support custom support custom



Pic of Insulation Quilting  Pins

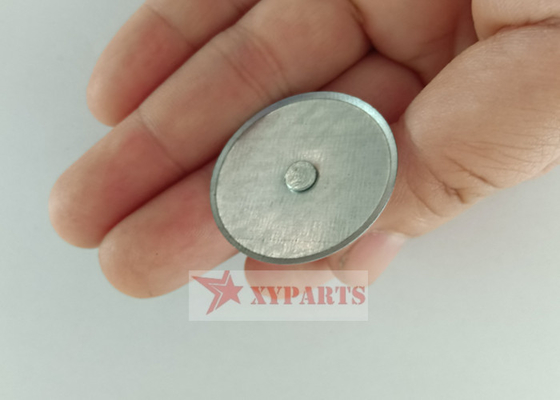

1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork 0

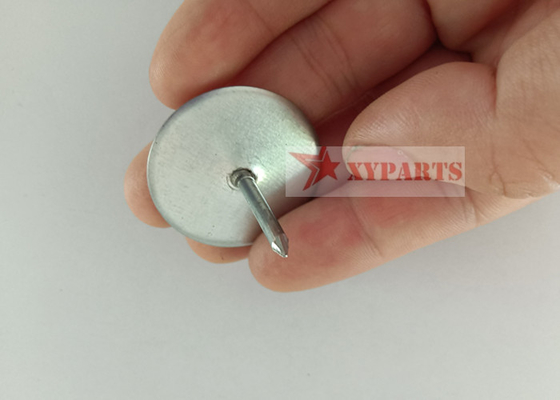

1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork 1


Feature of Insulation Quilting  Pins



BETTER PLATING weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated.
REDUCED DOWN TIME REDUCED DOWN TIME
STRONGER WELDS Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
CORROSION RESISTANCE Plating exceeds current SMACNA standards for corrosion resistance.
CORROSION RESISTANCE Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.
VIBRATIONS Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.



Install of Insulation Quilting  Pins


Recommended assembly method:
1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
2.Remove the protective release paper taking care not to touch the adhesive.
3.Place the hanger in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of
adherence is achieved after 24 hours

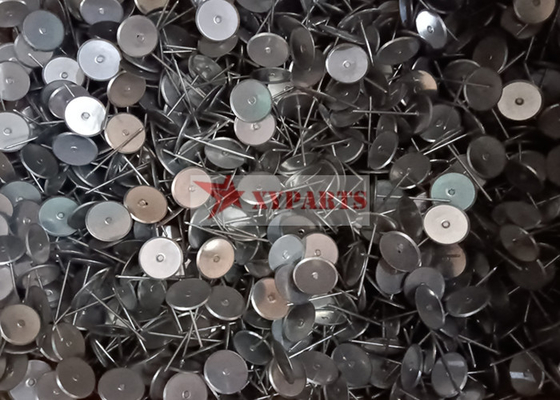

1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork 2


Packing of Insulation Quilting  Pins



Product Quantity Box size Weight
12Gauge 3/8” cup head weld pins 1000Pcs 26×26×8CM 2.85KG
12Gauge 7/8” cup head weld pins 1000Pcs 26×26×11CM 3.5KG
12Gauge 1” cup head weld pins 1000Pcs 26×26×11CM 3.7KG
12Gauge 1-1/8” cup head weld pins 1000Pcs 26×26×13CM 4.2KG
12Gauge 1-7/8” cup head weld pins 1000Pcs 26×26×18CM 4.85KG
12Gauge 2” cup head weld pins 1000Pcs 26×26×18CM 4.95KG
12Gauge 3” cup head weld pins 1000Pcs 26×26×18CM 7.05KG
12Gauge 4” cup head weld pins 1000Pcs 26×26×32CM 7.6KG

1" Long X 12 Gauge Quilting Pin Stainless Steel For Insulation Ductwork 3


XY PARTS Company introuduce:


Hebei Xiangyi metal products company is a insulation fasteners/insulation anchors manufacturing company,

we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products

is as following :



CD weld pins         Lacing Anchors

bimetallic pin         Cup head weld pins

Quilting pins          perforated base pins

self adhesive pins aluminum solar panel mesh clip

all kinds of self locking washers, Dome caps.



Special design can contact us make new mold as your pic or drawing pic !
