Thermal Insulation Stainless Steel Metal CD Weld Pins For HAVC Air Ducting

Large Image : Thermal Insulation Stainless Steel Metal CD Weld Pins For HAVC Air Ducting

Product Details:

Place of Origin:	CHINA
Brand Name:	HUIHAOCUSTOM
Certification:	ISO9001-2015
Model Number:	CD-PIN

Payment & Shipping Terms:

Minimum Order Quantity:	10000SETS
Packaging Details:	PP BAGS+CARTON+PALLET/CASE
Delivery Time:	10 WORK DAYS
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	7000000 SETS PER MONTH

Contact Now

Thermal Insulation Stainless Steel Metal CD Weld Pins For HAVC Air Ducting

Description

Name:	CD Weld Pins	Finished:	COPPER/ZINC PLATING
Pin Diameter:	2mm,2.7mm, 3mm, 3.4mm	Pin Length:	15MM-300MM
Material:	Mild Steel.stainless Steel	Fixing Parts:	Self Locking Washer/ Dome Caps
OEM/ODM:	Support	Manufacturer:	Yes
High Light:	15MM CD Weld Pins , Metal CD Weld Pins , ISO capacitor discharge weld pins

Thermal Insulation Stainless Steel Metal CD Weld Pins For HAVC Air Ducting

Quick details of the CD weld pins

Types including: Weld nails, cupped head pins, duct pins, bi-metallic pins
Material: mild steel, stainless steel, aluminum alloy
Surface treratment: copper plated or zinc coated for mild steel pins. polished for stainless steel and aluminum pins.
Pin diameter: 2.7mm and 3mm
Length: 19mm-300mm


Simple construction	high fficiency	saving labors	Eeasy weld to fasten the insulation	Pins sharp for easy go through any insulation

Specification of the CD weld pins

Photo	CD CUP HEAD PINS
	Part No.	pin diameter	round base size	pin Length
	HH-12	2.7mm	1-1/2"	Stnd up to 6"
	HH-10	3.4mm	1-1/2"	Special Order
	ZG-14	2.0mm	1-3/16"	Up to 2-1/2"
	ZG-12	2.7mm	1-3/16"	Stnd up to 6"


SIZE	D	STEEL FD	ALUM. FD	L-Length
14 GA	.080	.160	---	38mm-280mm
12 GA	.105	.180	.230	55mm-300mm
10 GA	.135	.195	.250	65mm-300mm
9 GA	.148	.230	---	90mm-300mm

photo	name	Specifications of the Bimetallic Insulation Pins
	Material	Aluminum base material +Stainless steel /Copper/Zinged steel
	Base size	6*13mm in common
	Pin diameter	3.0mm in common , Customized diameter is also available
	Pin types	sharp point and flat head
	Length	25-300mm, length could be customized .

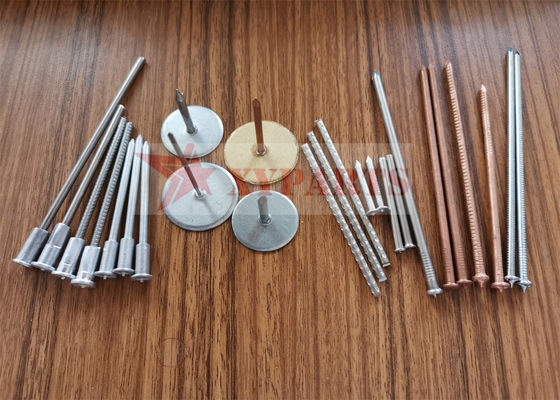

Images of the CD weld pins

Thermal Insulation Stainless Steel Metal CD Weld Pins For HAVC Air Ducting 4

Installation parts-self locking washer / dome cap washers

Thermal Insulation Stainless Steel Metal CD Weld Pins For HAVC Air Ducting 5

application equipments of CD weld pins

PowerPinner 7100 Light Duty, Hand Welder
PowerPinner 7200 Heavy Duty, Portable Hand Welder
PowerPinner 7005 Rapid Fire Fixed Head Welder
PowerPinner 7105 Rapid Fire Moving Head Welder
PowerPinner 50 Multi-head Welder
SAM Replacement Controller for Coil Line Pinners

recommended for	pin length before welding
1/2" insulation(all densities)	12.67mm
1" insulation(1-1/2"ib density)	17.63mm
1" foam	25.55mm
1"insulation(3ib densities)	23.72mm
1-1/2" insulation(all densities)	28.42mm
2"insulation(1-1/2"-2" ib density)	37.95mm
2"insulation(3ib densities)	48.77mm
3"insulation(all densities)	69.85mm
4" insulation(all densities)	95.00mm

Thermal Insulation Stainless Steel Metal CD Weld Pins For HAVC Air Ducting 6

CD welding pins is a insulation fastener which is used to fasten the insulation materials to sheet metal of air duct, other heating, ventilating or air conditioning.
A fabricated part made up of a weld pin and a staked on retaining washer,it is usually applied with a capacitor discharge stud welder.
The method of application is to place the insulation onto a metal surface, push the Cup Head weld pin through the insulation, and weld affix (mount) the entire fabricationin one step. Now it is widely accepted as labor saving fasteners in the thermal and acoustical insulation markets for use in industrial and commercial applications.

Thermal Insulation Stainless Steel Metal CD Weld Pins For HAVC Air Ducting 7
