Product Details:
|
| Name: | Bi-metallic Weld Pins | Finished: | Polished |
|---|---|---|---|
| Pin Diameter: | 3mm | Pin Length: | 25mm-150mm |
| Material: | Aluminum Base/ Stainless Steel Pins | Fixing Parts: | Self Locking Washer/ Dome Caps |
| OEM/ODM: | Support | Manufacturer: | Yes |
| High Light: | M3 CD Weld Pins,Bimetallic CD Weld Pins,3mm capacitor discharge weld pins |
||
Quick details of the Deck Board M3 Aluminum Alloy Stainless Steel Bi-Metallic CD Weld Pins
 |
||||
| Simple construction | high fficiency | saving labors | Eeasy weld to fasten the insulation | Pins sharp for easy go through any insulation |
Specification of Deck Board M3 Aluminum Alloy Stainless Steel Bi-Metallic CD Weld Pins
| photo | name | Specifications of the Bimetallic Insulation Pins |
|
Material | Aluminum base material +Stainless steel /Copper/Zinged steel |
| Base size | 6*13mm in common | |
| Pin diameter | 3.0mm in common , Customized diameter is also available | |
| Pin types | sharp point and flat head | |
| Length | 15-150mm, length could be customized . |

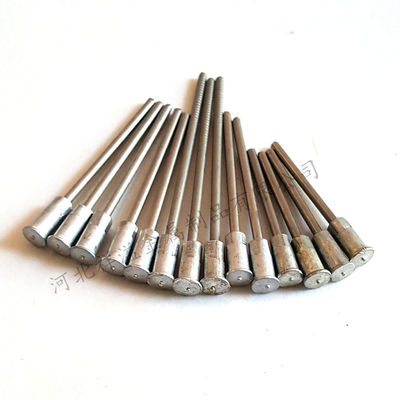

Images of the Deck Board M3 Aluminum Alloy Stainless Steel Bi-Metallic CD Weld Pins
Installation parts-self locking washer / dome cap washers
application equipments of Deck Board M3 Aluminum Alloy Stainless Steel Bi-Metallic CD Weld Pins
| recommended for | pin length before welding |
| 1/2" insulation(all densities) | 12.67mm |
| 1" insulation(1-1/2"ib density) | 17.63mm |
| 1" foam | 25.55mm |
| 1"insulation(3ib densities) | 23.72mm |
| 1-1/2" insulation(all densities) | 28.42mm |
| 2"insulation(1-1/2"-2" ib density) | 37.95mm |
| 2"insulation(3ib densities) | 48.77mm |
| 3"insulation(all densities) | 69.85mm |
| 4" insulation(all densities) | 95.00mm |
Package details of cd weld bi-metallic pins
| pin length | qty/bag | carton size | bags/carton |
| 15mm-38mm | 500pcs | 41cmx28cmx18cm | 10 bags |
| 40mm-65mm | 500pcs | 41cmx28cmx18cm | 8 bags |
| 70mm-90mm | 400bags | 41cmx28cmx18cm | 7 bags |
| other size | custom | custom |
|
|
FAQ
1-What is your min quantity?
-Min order value is not less USD500.
2-What is the normal delivery date?
-20-25 days against the deposit received.
3-What products is your self-produced?
-All stamping and all plastic parts.
4-Where is your main market?
-USA, Gulf Countries and East Europe.
