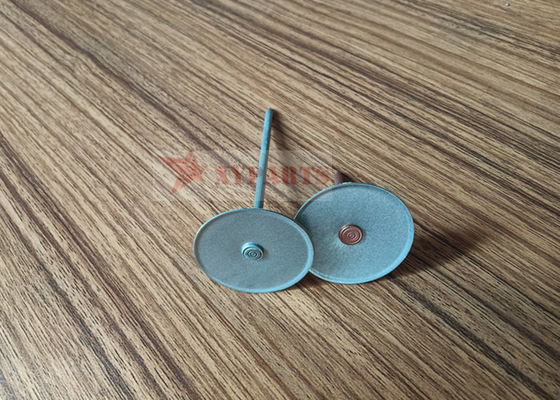

38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge

I'm Online Chat Now

38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge

38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge
38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge
38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge 38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge 38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge

Large Image :  38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge

Product Details:
Place of Origin: China
Brand Name: XIANGYI
Certification: ISO 9001
Model Number: Cupped Head Insulation Pins
Payment & Shipping Terms:
Minimum Order Quantity: 20000pcs
Packaging Details: 1.900pcs per catton 2.then on pallet 3.to be request
Delivery Time: 15 days after confirm the order
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 per week

38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge

Description
Product Name: Cupped Head Insulation Pins Material: Carbon Steel ,stainless Steel ,copper
Cup Head: 30mm ,35mm Pin Diameter: 1.8mm,2.0mm,2.7mm,3.0mm,3.4mm
Surface Treatment: Copper Plated Or Galvanized Packing: Carton Or Pail
Sample: Free
High Light:

38mm cd weld pins

,

cupped head cd weld pins

,

38mm capacitor discharge weld pins

38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge



Quick details of Cupped Head Insulation Pins



Product name :Cupped head insulation pins

Material:galvanized steel

Pin diameter:2.7mm

Pin length :7/8"

Head size:30mm

Annealing: all steel pins are fully annealed unless otherwise specified.

Washer: Low carbon steel & zinc plating.

Cupped Head Insulation Pins simplify the permanent installation of "Duct Liner" or other insulation materials

to duct work or to other heating, ventilating or air conditioning sheet metal configurations and housings.
A fabricated part made up of a weld pin and a staked on retaining washer. Variations of material are available.

This product is usually applied with a capacitor discharge stud welder. Used for securing insulation. Also used

as a hook-less lacing anchor to secure insulation inside fabricated blankets.



Specification of Cupped Head Insulation Pins



base size base material pin diameter pin length pin material finished
20MM mild steel, stainless steel, copper 2.7MM,3MM, 3.4MM 10MM, 25MM, 38MM mild steel, stainless steel, copper zinc/ copper plating
25mm mild steel, stainless steel, copper 3mm 10mm-65mm mild steel, stainless steel, copper zinc/ copper plating
30mm mild steel, stainless steel, copper 3.4mm 10mm-65mm mild steel, stainless steel, copper zinc/ copper plating
custom custom support custom support custom



Pic of Cupped Head Insulation Pins



38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge 0 38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge 1

Head diameter:30mm

Pin diameter:2.7mm

Pin length:1"

with paper washer

Head diameter:30mm

Pin diameter:2.7mm

Pin length:1"

without paper washer

38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge 2



Install of Cupped Head Insulation Pins



Recommended assembly method:
1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
2.Remove the protective release paper taking care not to touch the adhesive.
3.Place the hanger in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength

of adherence is achieved after 24 hours

38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge 338mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge 4

Packing of Cupped Head Insulation Pins



Product Quantity Box size Weight
12Gauge 3/8” cup head weld pins 1000Pcs 26×26×8CM 2.85KG
12Gauge 7/8” cup head weld pins 1000Pcs 26×26×11CM 3.5KG
12Gauge 1” cup head weld pins 1000Pcs 26×26×11CM 3.7KG
12Gauge 1-1/8” cup head weld pins 1000Pcs 26×26×13CM 4.2KG
12Gauge 1-7/8” cup head weld pins 1000Pcs 26×26×18CM 4.85KG
12Gauge 2” cup head weld pins 1000Pcs 26×26×18CM 4.95KG
12Gauge 3” cup head weld pins 1000Pcs 26×26×18CM 7.05KG
12Gauge 4” cup head weld pins 1000Pcs 26×26×32CM 7.6KG

38mm Weld Type Cupped Head Insulation Pins For Welding Capacitor Discharge 5



XY PARTS Company introuduce:


Hebei Xiangyi metal products company is a insulation fasteners/insulation anchors manufacturing company,

we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products

is as following :



CD weld pins Lacing Anchors

bimetallic pin Cup head weld pins

Quilting pins perforated base pins

self adhesive pins aluminum solar panel mesh clip

all kinds of self locking washers, Dome caps.



Special design can contact us make new mold as your pic or drawing pic !
