1" Length Galvanised Cup Head Capacitor Discharge Cd Weld Pins With Paper Washer

I'm Online Chat Now

1" Length Galvanised Cup Head Capacitor Discharge Cd Weld Pins With Paper Washer

1" Length Galvanised Cup Head Capacitor Discharge Cd Weld Pins With Paper Washer
1" Length Galvanised Cup Head Capacitor Discharge Cd Weld Pins With Paper Washer 1" Length Galvanised Cup Head Capacitor Discharge Cd Weld Pins With Paper Washer 1" Length Galvanised Cup Head Capacitor Discharge Cd Weld Pins With Paper Washer

Large Image :  1" Length Galvanised Cup Head Capacitor Discharge Cd Weld Pins With Paper Washer

Product Details:
Place of Origin: China
Brand Name: XIANGYI
Certification: ISO 9001
Model Number: Capacitor Discharge (CD)weld pins
Payment & Shipping Terms:
Minimum Order Quantity: 20000pcs
Packaging Details: 1.900pcs per catton 2.then on pallet 3.to be request
Delivery Time: 15 days after confirm the order
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 per week

1" Length Galvanised Cup Head Capacitor Discharge Cd Weld Pins With Paper Washer

Description
Product Name: Capacitor Discharge (CD)weld Pins Material: Carbon Steel ,stainless Steel ,copper
Cup Head: 30mm ,35mm Pin Diameter: 25mm-250mm
Surface Treatment: Copper Plated Or Galvanized Packing: Carton Or Pail
Sample: Free
High Light:

1" length cd weld pins

,

galvanised cup head cd weld pins

,

1" length capacitor discharge weld pins

1"Length Galvanzied Cup Head Capacitor Discharge(CD) Weld Pins With Paper Washer



Quick details of Cup Head Capacitor Discharge (CD) weld pins



1.Product Name :Cup head capacitor discharge(CD)weld pins

2.Head diameter :30mm,35mm  beveled edge cap

3.Pin diameter :3.4mm,3.0mm,2.7mm,2.0mm other size to be request

4.Pin length :1/2" 1" 1 1/8"  1 1/2" 2" 3" 4" 41/2"

Material:

  • Galvanized steel
  • Stainless steel available on special order

Cup Head Pins with Paper Washer is a fabricated part made up of a weld pin and a staked on retaining

washer. Cup Head Pins with Paper Washer installed are usually applied with a capacitor discharge

stud welder. They are commonly used for securing insulation and as a hook-less lacing anchor to

secure insulation inside fabricated blankets.

Specification of Cup Head Capacitor discharge(CD) weld pins





Round base Pin diameter Pin length Base type
30mm 14ga,12ga 38-250mm Base with paper  base without paper
35mm 12ga,10ga 25mm,38mm
25mm 12ga,10ga,3mm 25mm,38mm
Material Mild steel  stainless steel  Aluminum alloy
Surface treatment zinc/copper coated cleaning No

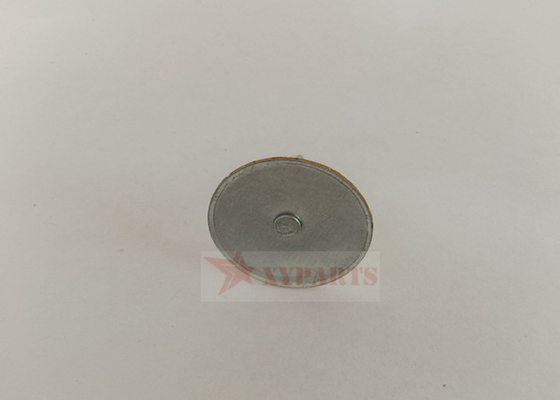

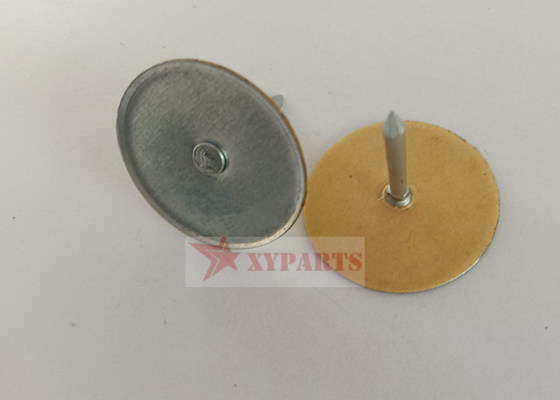

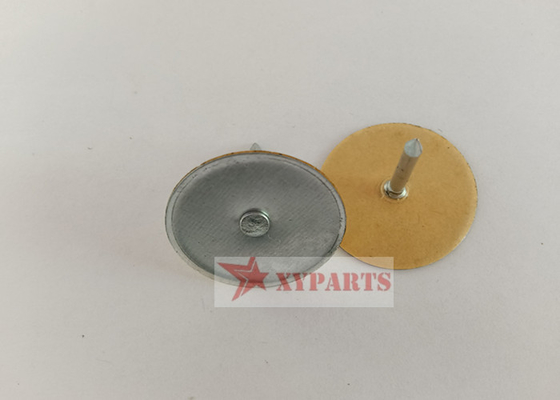

Pic of Cup Head Capacitor discharge(CD) weld pins



1" Length Galvanised Cup Head Capacitor Discharge Cd Weld Pins With Paper Washer 0 1" Length Galvanised Cup Head Capacitor Discharge Cd Weld Pins With Paper Washer 1

Head diameter:30mm

Pin diameter:2.7mm

Pin length:1"

with paper washer

Head diameter:30mm

Pin diameter:2.7mm

Pin length:1"

without paper washer

1" Length Galvanised Cup Head Capacitor Discharge Cd Weld Pins With Paper Washer 2



Feature of Cup Head Capacitor discharge(CD) weld pins



features of Cup Head Capacitor discharge(CD)weld pins
BETTER PLATING weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated.
REDUCED DOWN TIME Consistent point quality reduces frequency of machine adjustments.
STRONGER WELDS Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
CORROSION RESISTANCE Plating exceeds current SMACNA standards for corrosion resistance.
TEMPERATURE RANGE Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.
VIBRATIONS Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.



Packing of Cup Head Capacitor discharge(CD) weld pins



Product Quantity Box size Weight
12Gauge 3/8” cup head weld pins 1000Pcs 26×26×8CM 2.85KG
12Gauge 7/8” cup head weld pins 1000Pcs 26×26×11CM 3.5KG
12Gauge 1” cup head weld pins 1000Pcs 26×26×11CM 3.7KG
12Gauge 1-1/8” cup head weld pins 1000Pcs 26×26×13CM 4.2KG
12Gauge 1-7/8” cup head weld pins 1000Pcs 26×26×18CM 4.85KG
12Gauge 2” cup head weld pins 1000Pcs 26×26×18CM 4.95KG
12Gauge 3” cup head weld pins 1000Pcs 26×26×18CM 7.05KG
12Gauge 4” cup head weld pins 1000Pcs 26×26×32CM 7.6KG

1" Length Galvanised Cup Head Capacitor Discharge Cd Weld Pins With Paper Washer 3
