2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers

I'm Online Chat Now

2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers

2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers
2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers 2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers 2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers 2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers

Large Image :  2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers

Product Details:
Place of Origin: China
Brand Name: XIANGYI
Certification: ISO9001-2015
Model Number: slim style lacing anchors
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs lacing anchors
Packaging Details: paper carton + wood pallet
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 450000 pcs per 30 work days

2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers

Description
Name: Square Head Lacing Anchors Material: Stainless Steel
Feature: Easy Bending, Easy Installation Head Size: 11x24mm
Application: To Secure Insulation Blanket Pin Diameter: 14ga, 12ga
Head Type: Rectangular Pin Length: 4-1/2" Or 2-1/2”
High Light:

square head lacing anchors

,

63mm length lacing anchors

,

lacing anchors with self locking washers

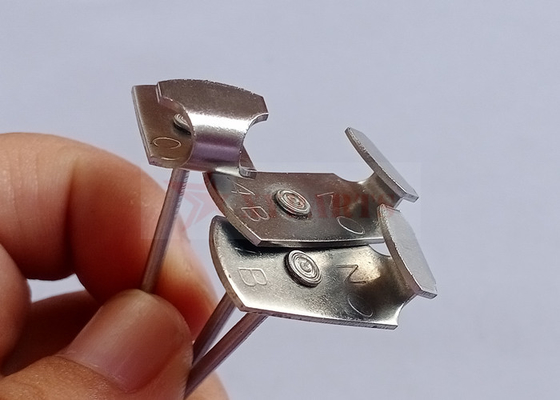

2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers

Quick Details Of The 2mm Square Head Lacing Anchors:

Square Head Lacing Anchors are used in the fabrication of insulation blankets or removable

covers or pads.





Item Square Head Lacing Anchors
Factory Xiangyi Parts

Material

Stainless Steel

Head Size 11x24mm
Head Thickness 1.0mm
Pin Diameter 2.0mm
Pin Length 63mm
Self Locking Washers 25mm, 30mm, 38mm etc.



2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers 0



Specifications Of The Square Head Lacing Anchors





1. stainless steel is a popular material while this square head lacing anchors is also made in mild steel.

2. stamped "no ab" to denote 'no asbestos'.

3. the tabbed head is about 1" (25mm)across, and 7/16" (11mm) wide.

4. The nail can be 12 gauge (2.7mm) or 14 gauge (2.0mm) in pin diameter.

5. 2-1/2" (63mm )& 4-1/2" (114mm) are standard pin length

6. Typical application is for the fabrication of lacing blankets or removable covers.

7. This square head lacing anchor is somewhat more economical than the standard lacing anchor and also serves to eliminate weight in the overall removable cover or blanket.





Common Size Of The Square Head Lacing Anchors:



Nail Diameter Nail Length Head Wide Head Length
2.0mm 63.5mm 11mm 25mm
2.0mm 114mm 11mm 25mm
2.7mm 63.5mm 11mm 25mm
2.7mm 114mm 11mm 25mm

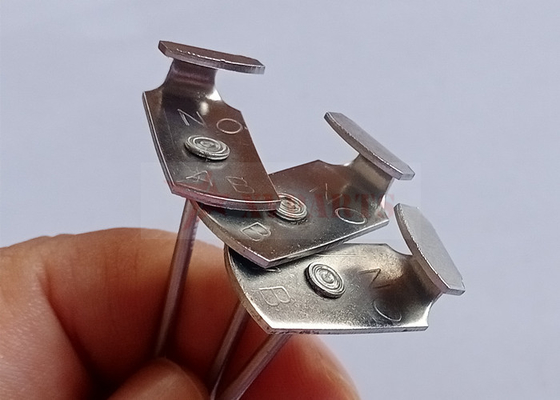

2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers 1

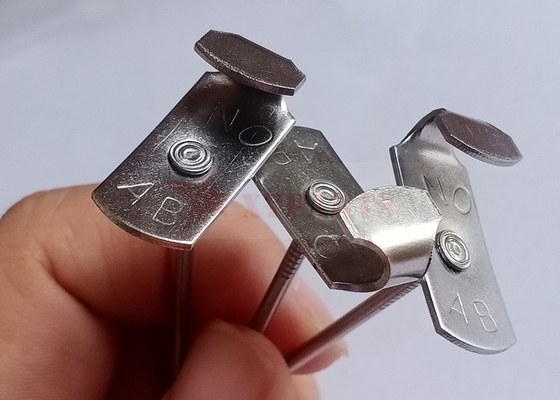

2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers 2



Application Of The Stainless Steel Lacing Anchors



1. Prepare insulation blanket

2. Press lacing anchor through blanket

3. Secure lacing anchor with self locking washer and bend the spindle

4. Apply insulation blanket

5. Secure blanket by lacing through hooks with lacing wire

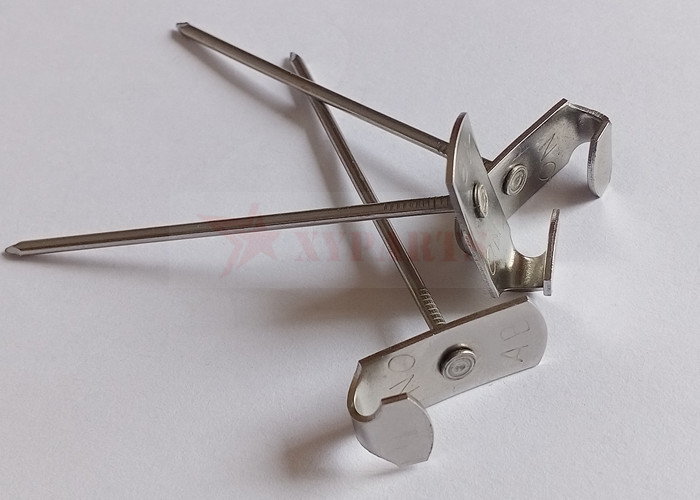

2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers 3



Package Of Stainless Steel Insulation Lacing Anchors :



Product Size(mm) Quantity Caton(cm) Weight
Lacing Anchors 12Gauge*2.5" 1000Pcs 26*26*18 8.6kgs
Lacing Anchors 12Gauge*4.5" 1000Pcs 26*26*25 9.9kgs
Lacing Anchors 14Gauge*2.5" 1000Pcs 26*26*18 10kgs
Lacing Anchors 14Gauge*4.5" 1000Pcs 26*26*25 12.3kgs
2mm Square Head Lacing Anchors 63mm Length With Self Locking Washers 4
