3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct

I'm Online Chat Now

3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct

3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct
3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct
3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct 3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct 3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct

Large Image :  3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: Capacitor Discharge Insulation Welding Pins
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Packaging Details: PP bags + carton + pallet/case
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7000000 pcs per month

3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct

Description
Name: Capacitor Discharge Insulation Welding Pins Head Diameter: 1" Or 1-3/16"
Material: Galvanized Steel Head Thickness: 0.5mm
Application: Fixing Heat Insulation Rock Wool Pin Diameter: 10ga (3.4mm)
Samples: Supported Pin Length: 1/2", 3/4", 1", 1-1/8", 1-1/2", 2"
High Light:

3.4mm capacitor discharge weld pins

,

galvanized steel capacitor discharge weld pins

,

exhaust air duct weld pins

3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct

Quick Details Of The 3.4mm Capacitor Discharge Insulation Welding Pins

3.4mm dia Capacitor Discharge Insulation Welding Pins are widely used for the exhaust air duct.

The pins simplify the installation of "Duct Liner" or other insulation materials to duct work or to

other heating, ventilating or air conditioning sheet metal configurations and housings.



Capacitor Discharge Insulation Welding Pins are widely accepted as labor saving fasteners in

the thermal and acoustical insulation markets for use in industrial and commercial applications.

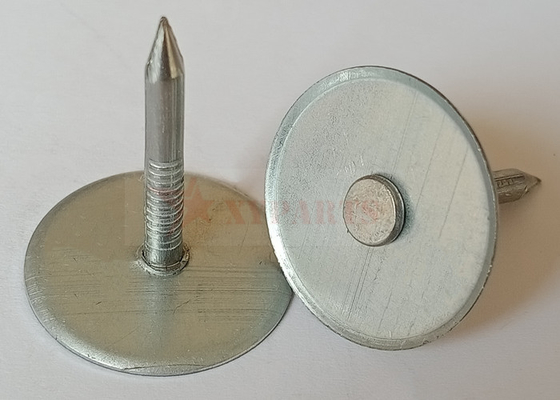

3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct 0

Head Material: Low carbon steel or stainless steel

Head Surface Finish: galvanized is standard

Head Edge: Beveled edge washer to prevent cutting of insulation material.

Flat edge washer style also standard.

Head Diameter (WD): 1" (25mm)

Pin Material: Low carbon steel or stainless steel

Pin Surface Finish: galvanized is standard, copper plating is available upon special request.

Pin Diameter (D): 0.135" (3.4mm)

Pin Length (L): As your request

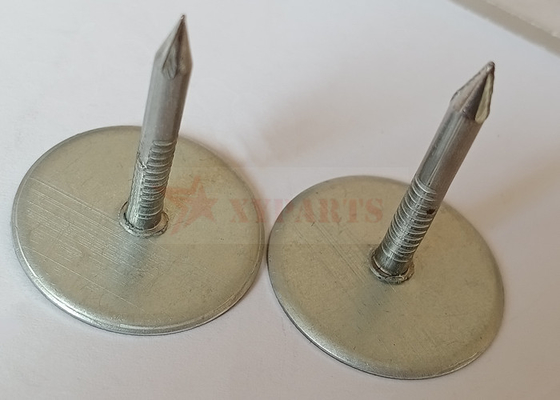

3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct 1



Specifications Of The Capacitor Discharge Insulation Welding Pins





Item

Capacitor Discharge Insulation Welding Pins

Brand

HUIHAO Costom

Material

Mild steel

Plating

Standard is Galvanized



Standard Washer is Galvanized

Copper Plating is available

Bevel

Washer edge is beveled to prevent cutting of insulation material

Stainless steel

Not standard, but available by special order

Head with paper

Available, for welding through aluminum foil faced insulation materials

Pin with tubes

Available, for welding through tin foil faced insulation materials

Head Size

1-1/2" (38mm), 1-3/16" (30mm), 1" (25mm)

Head Thickness

0.5mm or 0.4mm

Pin Diameter

0.135" (3.4mm), 0.106"(2.7mm), 0.08"(2.0mm)

Pin Length

as your request

Package

1. 2000 pcs / 3000 pcs/ 5000 pcs per carton

2. 36 cartons per pallet
3. or according to your requirement.



3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct 2





Installation Introduction Of The Capacitor Discharge Insulation Welding Pins



3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins For Exhaust Air Duct 3
Recommended for Pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1"insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2"insulation(1-1/2"-2" ib density) 37.95mm
2"insulation(3ib densities) 48.77mm
3"insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm



FAQ Of Xiangyi Metal Product Co.,Ltd



1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.

3. Can i get samples?
Yes, samples for quality confirm are supported in our company.

4. How do you control and ensure product quality?

1) Confirm with you every details before quoting.

2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System"
standard.

4) We will send you videos and pictures during the production and shipment process.

  5. What's your advantages?

  Cooperate with us, we can ensure:

  1) Competitive price: we sale what we manufacture.

  2) On-time delivery: we have the auto-production line to ensure the on-time delivery.

  3) Excellent quality: we have rich experience, our products are in line with international standard.

  4) Good after-sale service: we offer good after-sale service for each order.
