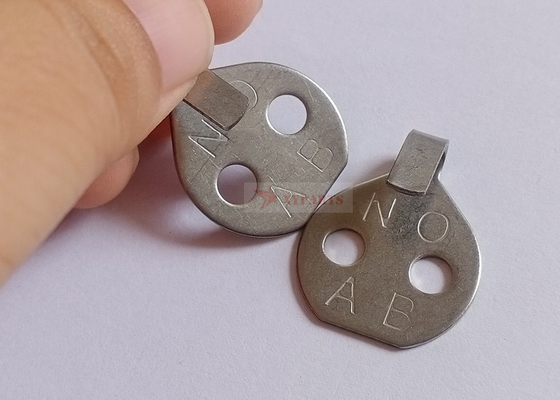

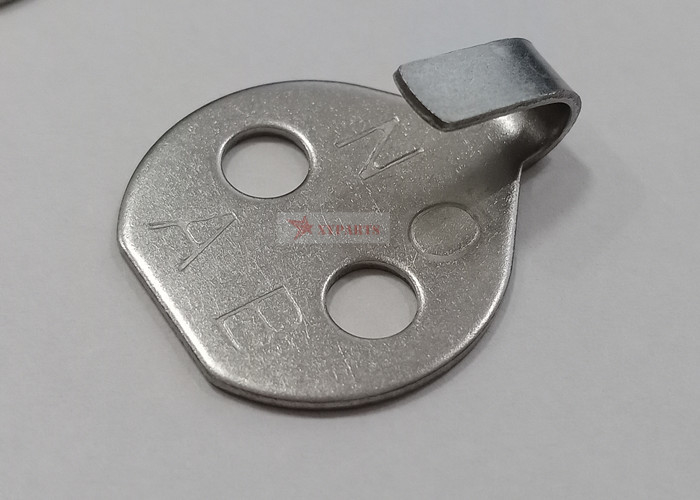

Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes

I'm Online Chat Now

Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes

Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes
Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes
Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes

Large Image :  Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes

Product Details:
Place of Origin: China
Brand Name: XIANGYI
Certification: ISO9001-2015
Model Number: stainless steel lacing hooks
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Packaging Details: carton + pallet
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 450000 pcs per 30 work days

Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes

Description
Name: Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes Material: Stainless Steel
Application: Insulation Covers, Insulation Blankets Type: Round
Size: 22mm, 25mm Hole Size: 5mm
High Light:

7/8" diameter lacing washer

,

stainless steel hook lacing washer

,

two holes lacing washer

Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes



Description Of The Stainless Steel Lacing Hooks

Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes 0
Material Size Hook  Thickness Hole Size
stainless steel 22mm, 25mm 5mmx11mm 1mm 5mm
galvanized steel 22mm,25mm 5mmx11mm 1mm 5mm

1: 7/8” diameter standard with two 3/16″ diameter holes, 1/2″ apart

3: stamped NO AB to indicate non-asbestos material.



1.we accept OEM orders, and supply pattern design, surface treatment and project advices

2. good hold power, go through with non-return

3.suitable installation parts include: lacing anchor pins,lacing washer, lacing wire and lacing rings

  (O type and D types)

Parts lacing anchor pins lacing washers lacing wires lacing O rings lacing D rings
Material SS/MS SS.MS SS.MS SS SS
standard size 63.5MM 25MM 2MM 30MM 20MMX30MM



Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes 1 Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes 2

Name: Lacing anchor pins

Diameter: 2mm, 2.7mm

Length: 63.5mm, 114mm

Name: Lacing washers

Diameter: 25mm or 30mm

Thickness: 1mm

Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes 3 Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes 4

Name: Lacing O rings

Material: stainless steel

Technical: weld or not

Diameter: 30mm

Name: Lacing D rings

Material: stainless steel

Technical: weld or not

Diameter: 20x30mm



How To Secure Insulation Blankets With Stainless Steel Lacing Hooks

The Lacing hooks are used for securing and tying removable insulation blankets, work in with lacing

washers to fasten the insulation. Install the lacing hook with wire, secure with lacing washer, use

lacing wire to fasten the insulation by through the lacing hooks.

Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes 5 Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes 6 Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes 7
1. install lacing hook with lacing wire

2. secure with lacing washer

3. secure installation by lacing wires through hooks



Application Of The Stainless Steel Lacing Hooks

stainless steel material lacing hook washers are wildy used for fixing:
  • exhaust insulation blankets
  • fabric expansion joints
  • temptec exhaust blankets
  • mat insulation
  • thermal insulation covers
  • cooling insulation covers
  • heat insulatiuon covers
  • freeze protection cover
  • removable insulation covers
  • tank insulation cover
  • flanhe leak insulation covers
  • offshore production cover
  • heat-shield insulation blankets
  • removable insulation jacket



Package Details Of The Metal Lacing Hook Washers

qty / pp bag qty / carton carton size weight / carton
1000 pcs 7 pp bags 41cm x28cm x17cm 21.5kgs
accept custom accept custom custom is acceptable

Speed Metal Lacing Hooks Buckle For Securing Removable Insulation Blankets 2

Xiangyi Metal Products CO.,Ltd

Hebei Xiangyi Metal Product Co.,ltd manufactured the following listed insulation pins and washers

with good quality and price, if you have interest purchasing from China, our company definitely is a

good choice for you.

Insulation Pins Insulation Washers
Perforated base insulation hangers Self locking washers
Self stick insulation pins Dome cap washers
Lacing anchors Insulation clips
CD weld pins Plastic insulation anchors
BI metallic pins Insulation discs
Insulation fixing anchors
J hooks
Impaling clips
Solar panel clips
