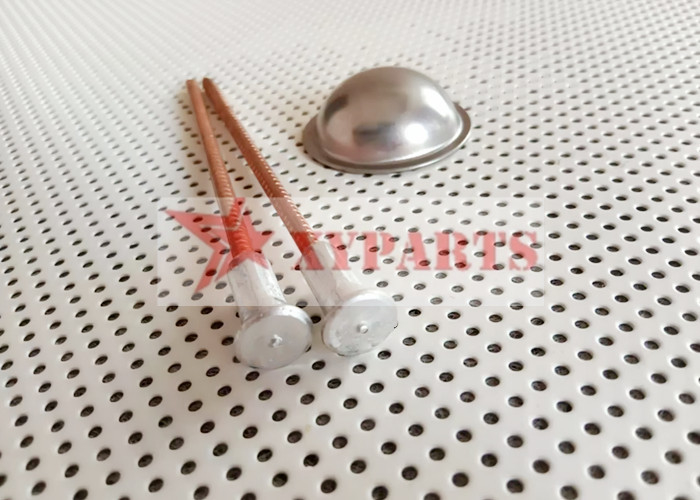

M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail

M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail
M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail
M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail

Large Image :  M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail

Product Details:
Place of Origin: CHINA
Brand Name: XIANGYI
Certification: ISO9001-2015
Model Number: CD weld bimetallic pin
Payment & Shipping Terms:
Minimum Order Quantity: 10,000 pcs
Packaging Details: 1.500pcs /1000 pcs in one carton 2.on pallet 3.to be request
Delivery Time: within 15 days
Payment Terms: L/C, Western Union, T/T, MoneyGram
Supply Ability: 3.000 pcs per 10 days

M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail

Description
Product Name: Capacitor Discharge Weld Bimetallic Pin Pin Material: Stainless Steel ,carbon Steel ,aluminum,brass
Pin Diameter: 3mm Pin Length: 90mm
Base Material: Aluminum Base Diameter: 5.5mm
Base Length: 15mm Packing: 500/1000 Piece In One Carton
High Light:

Capacitor Discharge Weld Bimetallic Pin

,

Copper Plated Nail Bimetallic Pin



M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail




Capacitor Discharge Weld Bimetallic Pin Product Introduce:



Product Name:capacitor discharge weld bimetallic pin
Material:Low carbon steel, Aluminum, Stainless steel
Plating:Galvanized coating for low carbon steel ,No Plating for stainless steel
Accessories: Self-Locking washers (clips),plastic dome cap
Capacitor discharge weld bimetallic  pins are primarily designed as welded fasteners to secure blanket and board insulation to metal heating and air conditioning ducts, ovens, tanks and other hot or cold equipment.
BIMETAL pins have an aluminum weld base designed to be welded to thin gauge aluminum sheet material using the Capacitors Discharge welding process, but may also be welded with the Short Cycle Drawn Arc weld process on thicker aluminum plate..
BIMETAL pins are designed tip ignition according to the capacitors discharge welding process.





Capacitor Discharge Weld Bimetallic Pin Specification :



common size of Capacitors Discharge Weld BiMetallic Pins :

BI-Metallic Pin diameter

base size

length

2.7mm

8x11

15-500mm

3mm

8x11

15-500mm

3.4mm

8x11

15-500mm



Capacitor Discharge Weld Bimetallic Pin Pic:



M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail 0

Product Name:bimetallic pin
Material of the base : aluminum head
Material of the shaft: SS or carbon steel or Aluminum
Pin diameter(ø) :3.0mm in common
Pins length(L) :30-125mm
Head size:6mmdia*15mm length
Washer: round or square self locking washers, or dome cap washers
Washers size :30mm or 38mm
MOQ:1000 sets



M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail 1



Features of Capacitor Discharge Weld Bimetallic Pin :



Features of Capacitors Discharge Weld BiMetallic Pins
BETTER PLATING weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated.
REDUCED DOWN TIME Consistent point quality reduces frequency of machine adjustments.
STRONGER WELDS Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
CORROSION RESISTANCE Plating exceeds current SMACNA standards for corrosion resistance.
TEMPERATURE RANGE CD Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.
VIBRATIONS CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.



Package Of Capacitor Discharge Weld Bimetallic Pin:



Material of the shaft Material fo the head Length of the head Total length Packing of the Bi-metallic pins
Stainless steel Aluminum 15mm in common 35mm 400pcs/bag,10bags/carton
Stainless steel Aluminum 15mm in common 45mm 350pcs/bag,10bags/carton
Stainless steel Aluminum 15mm in common 55mm 300pcs/bag,10bags/carton
Stainless steel Aluminum 15mm in common 65mm 250pcs/bag,10bags/carton
Stainless steel Aluminum 15mm in common 80mm 200pcs/bag,10bags/carton
Stainless steel Aluminum 15mm in common 95mm 150pcs/bag,10bags/carton



XY PARTS Company introuduce:


Hebei Xiangyi metal products company is a insulation fasteners/insulation anchors manufacturing company,

we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products

is as following :



CD weld pins      Lacing Anchors

bimetallic pin      Cup head weld pins

Quilting pins       perforated base pins

self adhesive pins       aluminum solar panel mesh clip

all kinds of self locking washers, Dome caps.

M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail 2
