Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers

I'm Online Chat Now

Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers

Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers
Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers

Large Image :  Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers

Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: MS-22
Payment & Shipping Terms:
Minimum Order Quantity: 10000 sets
Packaging Details: 1. Regular package :carton package 2. Custom package
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 350000 pcs per 30 days

Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers

Description
Name: Lacing Anchors Application: Connect Removable Cover
Type: Hook Head Anchors Regular Package: Cartons
Head Size: 22 MM , 30 MM Standard Length: 63.5 Mm , 114 Mm
Standard Pin: 2 MM , 2.2 MM Company Type: Manufacturer
High Light:

ISO Lacing Anchors

,

Insulation Fixing Lacing Anchors

,

hook head Lacing Anchor



Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers




Applications of the lacking anchors

Lacing Anchors are used in the fabrication of insulation blankets or removable covers/pads. The nail is pressed through the insulation material, so the hook portion sits on the top edge and the nail is secured on the opposite side of the insulation with a washer. The two sides of the blanket can then be "laced" together by the hooks with tie wire.



Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers 0

Specification of the lacing anchors

hook head size hook material pin diameter pin length
22 mm mild steel, stainless steel 1.8mm, 2 mm 38 mm -160 mm
30 mm mild steel, stainless steel 2 mm, 2.2 mm, 2.5mm 100 mm - 250 mm
custom custom custom  custom

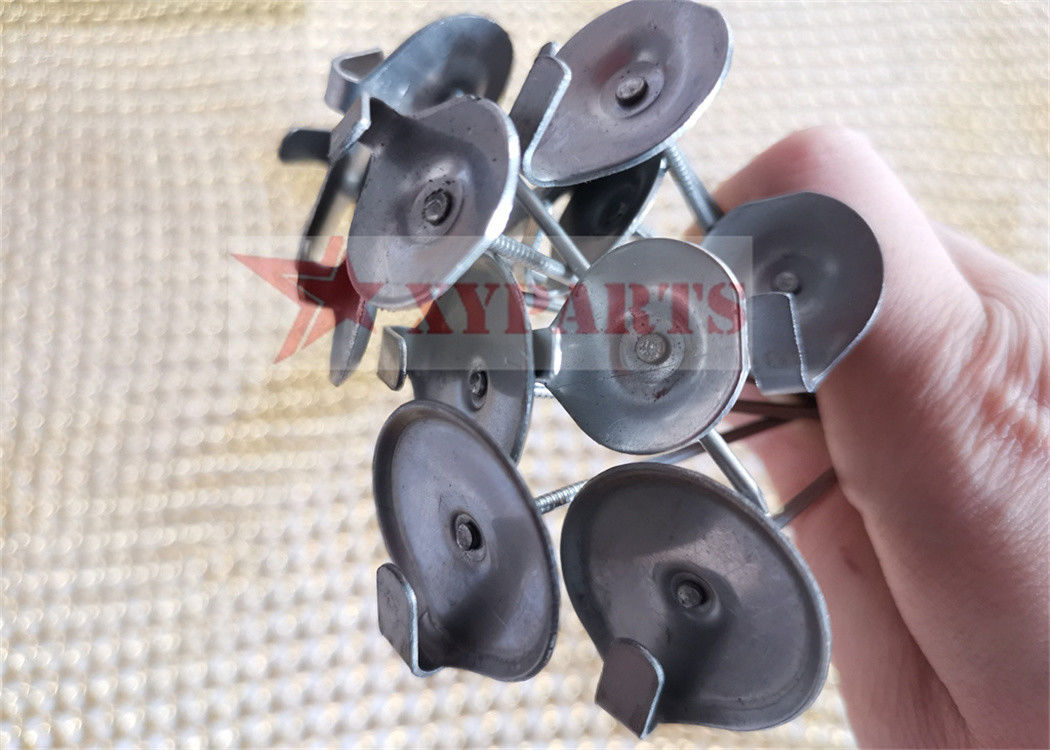

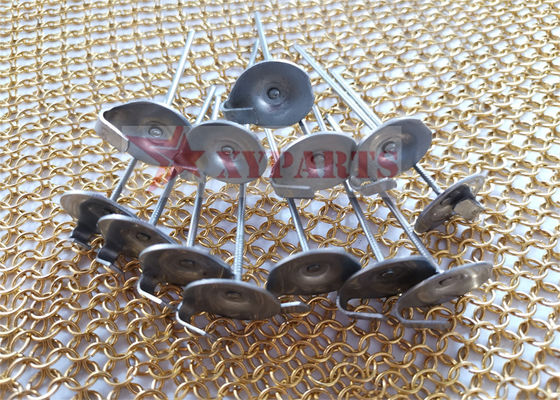

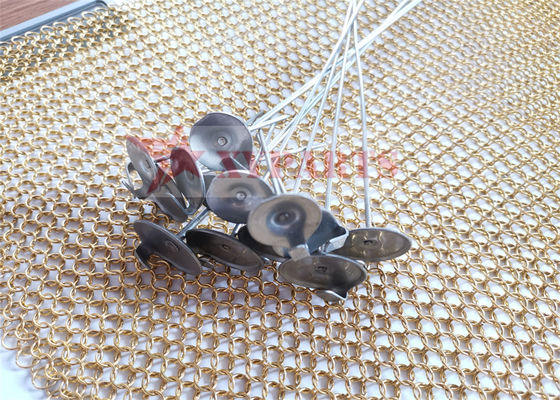

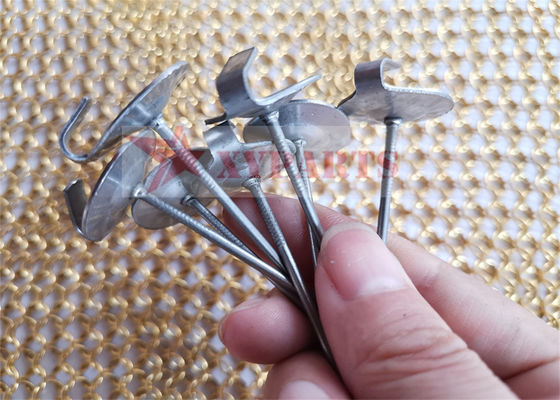

Images details of lacing anchors

Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers 1

Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers 2


Package details of the lacing anchors

Hook Head Insulation Fixing Lacing Anchors For Removable Turbo Flange Covers 3
