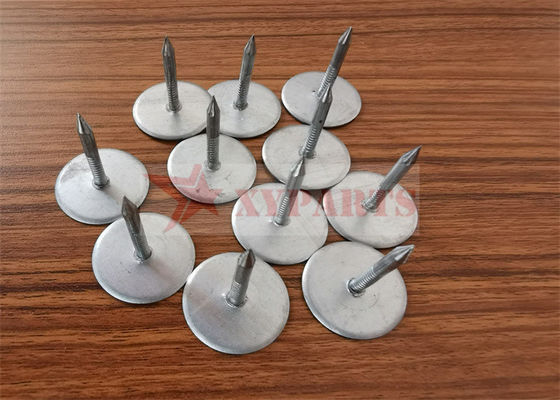

HVAC Insulation Pins Galvanized Steel CD Weld Nails For Fixing Rock Wool

HVAC Insulation Pins Galvanized Steel CD Weld Nails For Fixing Rock Wool
HVAC Insulation Pins Galvanized Steel CD Weld Nails For Fixing Rock Wool HVAC Insulation Pins Galvanized Steel CD Weld Nails For Fixing Rock Wool HVAC Insulation Pins Galvanized Steel CD Weld Nails For Fixing Rock Wool HVAC Insulation Pins Galvanized Steel CD Weld Nails For Fixing Rock Wool

Large Image :  HVAC Insulation Pins Galvanized Steel CD Weld Nails For Fixing Rock Wool

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: CUP HEAD-30/25
Payment & Shipping Terms:
Minimum Order Quantity: 10000SETS
Packaging Details: PP BAGS+CARTON+PALLET/CASE
Delivery Time: 10 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7000000 SETS PER MONTH

HVAC Insulation Pins Galvanized Steel CD Weld Nails For Fixing Rock Wool

Description
Name: CD Weld Nails Finished: COPPER/ZINC PLATING
Pin Diameter: 2.7mm, 3mm, 3.4mm Pin Length: 19mm, 25mm, 38mm, 45mm, 50mm, 63mm
Material: Mild Steel / Stainless Steel OEM/ODM: To Be Your Request
Company Type: MANUFACTURER Relate Tool: WELD GUN
High Light:

HVAC Insulation CD Weld Nails

,

Galvanized Steel CD Weld Nails

,

capacitor discharge Weld Nails



HVAC Insulation Pins Galvanized Steel CD Weld Nails For Fixing Rock Wool




quick details of galvanized steel CD weld naIls

Material

Low carbon steel, STAINLESS STEEL, COPPER

Plating

  Zinc plating, COPPER PLATED

Size

Washer diameter: 1",1-3/8"

Pin diameter

10GA( 3.4mm), 12GA(3MM),2.7MM

Length

1/2" 3/4" 1" 1-1/8" 1-1/2" 2" 3" 4" OR to be your request

  Application The method of application is to place the insulation onto a metal surface, push the Cup Head weld pin through the insulation, and weld affix (mount) the entire fabricationin one step. Now it is widely accepted as labor saving fasteners in the thermal and acoustical insulation markets for use in industrial and commercial applications.

Features of the galvanized steel CD weld nails



Beveled Edge Cap
Prevents tearing of duct liner
Faster Welds
Forged diamond point design creates more electrical resistance for faster welds.
Better Plating
Zinc and Chromate plating exceeds SMACNA standards and gives a more professional appearance.
Reduced Down Time
Consistent point quality reduces frequency of machine adjustments.
Stronger Welds
Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
Applied with Standard Equipment
Easily applied with Automatic Pin Welder or most standard hand held or hopper fed resistance welders.

Specification of the cup head Galvanized steel CD weld nails


Photo CD CUP HEAD PINS
HVAC Insulation Pins Galvanized Steel CD Weld Nails For Fixing Rock Wool 0 Part No. pin diameter round base size pin Length
HH-12 2.7mm 1-1/2" Stnd up to 6"
HH-10 3.4mm 1-1/2" Special Order
ZG-14 2.0mm 1-3/16" Up to 2-1/2"
ZG-12 2.7mm 1-3/16" Stnd up to 6"

Different types of the cup head weld nails



standard types  details of standard
For US, Canada the standard washer diameter is 1.187"(30mm), the pin diameter is 12GA(2.7mm), the washer can with or without kraft paper. the length from 3/8" to 4-7/8"
For EU countries the washer diameter is 30mm, 38mm, The pin diameter is 12GA(2.7mm) and 14GA(2.0mm).
noted the washer can with or without kraft paper, the pin can be with or without plastic sleeve. the length from 9.5mm to 140mm. we also accept the special order for other lengths.

Images of the cup head CD weld nails

HVAC Insulation Pins Galvanized Steel CD Weld Nails For Fixing Rock Wool 1


application equipments of cup head galvabized steel CD weld pins

recommended for pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1"insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2"insulation(1-1/2"-2" ib density) 37.95mm
2"insulation(3ib densities) 48.77mm
3"insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm



HVAC Insulation Pins Galvanized Steel CD Weld Nails For Fixing Rock Wool 2
