Fiberglass Rigid Board Cupped Head Capacitor Discharge Weld Pins

Large Image : Fiberglass Rigid Board Cupped Head Capacitor Discharge Weld Pins

Product Details:

Place of Origin:	CHINA
Brand Name:	HUIHAOCUSTOM
Certification:	ISO9001-2015
Model Number:	CD-30/25

Payment & Shipping Terms:

Minimum Order Quantity:	10000SETS
Packaging Details:	PP BAGS+CARTON+PALLET/CASE
Delivery Time:	10 WORK DAYS
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	7000000 SETS PER MONTH

Contact Now

Fiberglass Rigid Board Cupped Head Capacitor Discharge Weld Pins

Description

Name:	Capacitor Discharge Cupped Head Weld Pins	Pin Diameter:	2.7MM, 3MM, 3.4mm
Common Pin Length:	19mm, 25mm, 38mm, 45mm, 50mm, 63mm	Cup Head Base:	20MM, 25mm, 30MM
Company Type:	Manufacturer	Relate Tool:	Automatic Pin Welder
Services:	ODM, OEM	Application:	FOR BUILDING MATERIAL ROCK WOOL
High Light:	ODM capacitor discharge weld pins , 3.4mm capacitor discharge weld pins , ISO Cupped Head Weld Pins

Fiberglass Rigid Board Capacitor Discharge Cupped Head Weld Pins Fasteners

Rock wool cupped head weld pins fasteners

Product Name:	cupped head Weld pins fasteners
Brand Name:	HUIHAOCUSTOM
Model Number:	CD/25/30
Place of Origin:	RAOYANG city, China (Mainland)
Diameter:	12ga, 14ga
Head size:	25.4mm,30mm,38mm As required
Length:	mix 3/8" max16",As required
Material:	Galvanized Steel, Stainless Steel available on special orders
Packaging Details	Packing can be customized as per equirements
Production workmanship:	Automated production
Surface treatment:	zinc coated/ copper plated
Washer Dia.:	25mm/30mm for your choose
Type:	rock wool insulation manufacturer
application equipments of Thermal CD Weld Nails	PowerPinner 7100 Light Duty, Hand Welder PowerPinner 7200 Heavy Duty, Portable Hand Welder PowerPinner 7005 Rapid Fire Fixed Head Welder PowerPinner 7105 Rapid Fire Moving Head Welder PowerPinner 50 Multi-head Welder SAM Replacement Controller for Coil Line Pinners

Specification of Capacitor Discharge Cupped Head Weld Pins fasteners

base size	base material	pin diameter	pin length	pin material	finished
20MM	mild steel, stainless steel, copper	2.7MM,3MM, 3.4MM	10MM, 25MM, 38MM	mild steel, stainless steel, copper	zinc/ copper plating
25mm	mild steel, stainless steel, copper	3mm	10mm-65mm	mild steel, stainless steel, copper	zinc/ copper plating
30mm	mild steel, stainless steel, copper	3.4mm	10mm-65mm	mild steel, stainless steel, copper	zinc copper plating
custom		support custom	support custom

Features of Capacitor Discharge Cupped Head Weld Pins fasteners

Beveled Edge Cap: Prevents tearing of duct liner
Faster Welds: Forged diamond point design creates more electrical resistance for faster
Better Plating:Zinc and Chromate plating exceeds SMACNA standards and gives a more professional appearance.
Reduced Down Time:Consistent point quality reduces frequency of machine adjustments.
Stronger Welds: Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
Applied with Standard Equipment: Easily applied with Automatic Pin Welder or most standard hand held or hopper fed resistance welders

Installation introduction of Capacitor Discharge Cupped Head Weld Pins

recommended for thickness of the insulation	pin length before welding
1/2" insulation(all densities)	12.67mm
1" insulation(1-1/2"ib density)	17.63mm
1" foam	25.55mm
1"insulation(3ib densities)	23.72mm
1-1/2" insulation(all densities)	28.42mm
2"insulation(1-1/2"-2" ib density)	37.95mm
2"insulation(3ib densities)	48.77mm
3"insulation(all densities)	69.85mm
4" insulation(all densities)	95.00mm

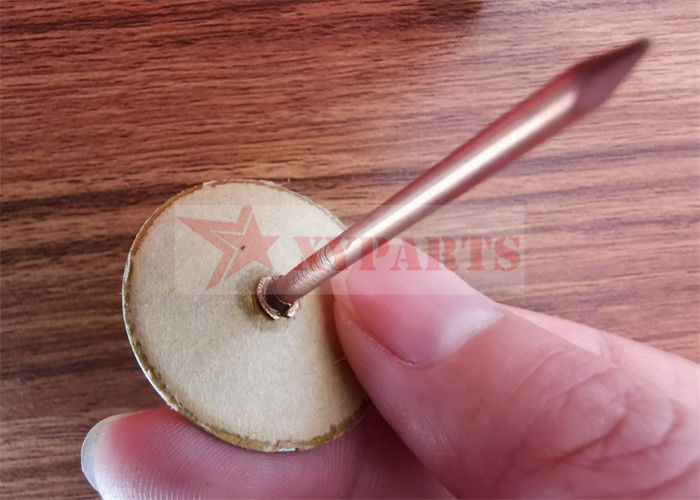

Fiberglass Rigid Board Cupped Head Capacitor Discharge Weld Pins 0

Images of Duct Liner cupped head weld pins fasteners

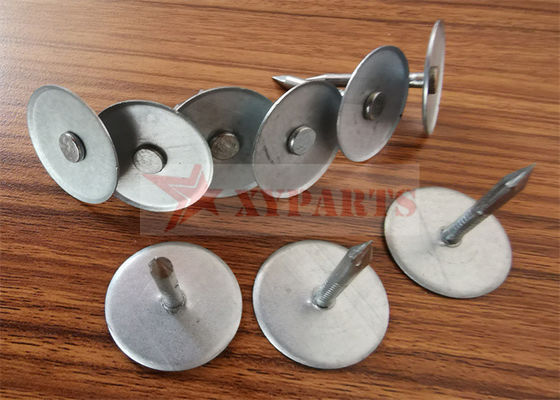

Fiberglass Rigid Board Cupped Head Capacitor Discharge Weld Pins 1

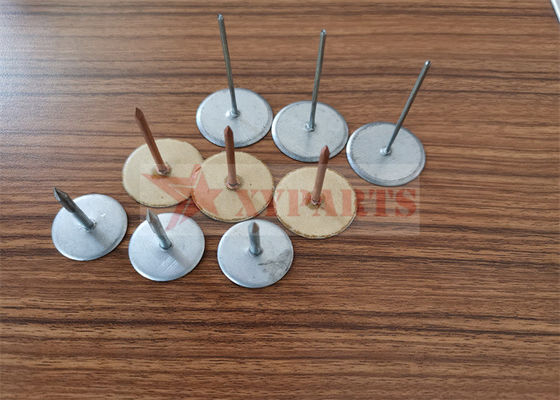

Fiberglass Rigid Board Cupped Head Capacitor Discharge Weld Pins 2

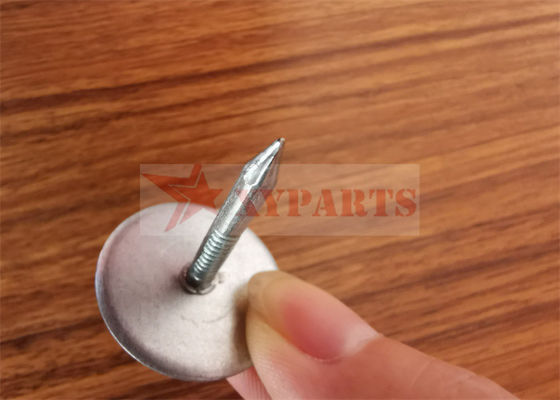

Fiberglass Rigid Board Cupped Head Capacitor Discharge Weld Pins 3

Tag:

capacitor discharge insulation weld pins,

HVAC CD Weld Pins,

3.4mm CD Weld Pins
