Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls

I'm Online Chat Now

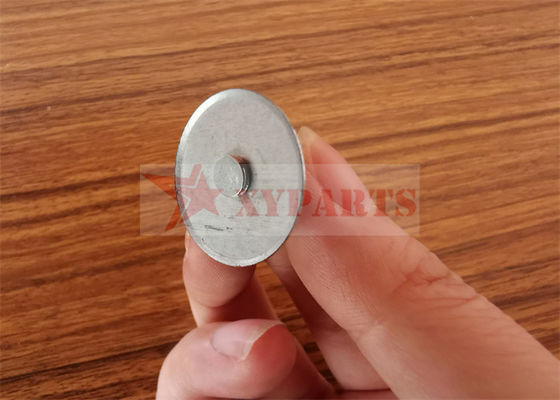

Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls

Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls
Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls

Large Image :  Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: CUP HEAD-25-CD
Payment & Shipping Terms:
Minimum Order Quantity: 10000SETS
Packaging Details: PP BAGS+CARTON+PALLET/CASE
Delivery Time: 10 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7000000 SETS PER MONTH

Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls

Description
Name: Duct Liner Insulation Pins Pin Diameter: 3.4mm
Common Pin Length: 19mm, 25mm, 38mm, 45mm, 50mm, 63mm Cup Head Base: 25mm
Company Type: Manufacturer Relate Tool: Automatic Pin Welder
OEM/ODM: SUPPORT Application: Cuphead Pins For Internal Or External Walls
High Light:

OEM Duct Liner Insulation Pins

,

3.4mm duct liner pins

,

Carbon Steel duct liner pins



Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls




Specification of Duct Liner Insulation Pins



base size base material pin diameter pin length pin material  finished
25mm mild steel, stainless steel, copper 3mm 10mm-65mm mild steel, stainless steel, copper zinc/ copper plating
30mm mild steel, stainless steel, copper 3.4mm 10mm-65mm mild steel, stainless steel, copper zinc copper plating
custom   support custom support custom




Destription of Duct Liner Insulation Pins



1. A fabricated part made up of a weld pin and a staked on retaining washer,it is usually applied with a capacitor discharge stud welder.
2. The method of application is to place the insulation onto a metal surface, push the Cup Head weld pin through the insulation, and weld affix (mount) the entire fabrication in one step. Now it is widely accepted as labor saving fasteners in the thermal and acoustical insulation markets for use in industrial and commercial applications.



Installation introduction of Duct Liner Insulation Pins with welders



recommended for thickness of the insulation pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1"insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2"insulation(1-1/2"-2" ib density) 37.95mm
2"insulation(3ib densities) 48.77mm
3"insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm



Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls 0


Images of Duct Liner Insulation Pins



Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls 1




application equipments of cup head CD weld pins

Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls 2


Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls 3

Low Carbon Steel Duct Liner Insulation Pins For Internal Or External Walls 4
