Product Details:
|
| Name: | Plastic Insulation Plug Anchor | Plug Thickness: | M5-m10 |
|---|---|---|---|
| Plug Length: | 30mm-160mm In Common | Plug Material: | PE, PA |
| Type: | Wall Anchor | HEX Screw: | M3-m8 |
| High Light: | Plastic Insulation Plug Anchor,m5 Plastic Insulation Anchors,m10 insulation anchors for concrete walls |
||
| ANCHOR SIZE | NAIL SIZE | DRILL DIA | PRACT.APPLIC |
| (MM) | MAX (mm) | ||
| 5*30 | 3.5*35 | 5 | 5 |
| 5*35 | 3.5*40 | 5 | 10 |
| 5*40 | 3.5*45 | 5 | 15 |
| 5*45 | 3.5*50 | 5 | 20 |
| 5*50 | 3.5*55 | 5 | 25 |
| 6*35 | 4*40 | 6 | 6 |
| 6*40 | 4*45 | 6 | 10 |
| 6*50 | 4*55 | 6 | 15 |
| 6*60 | 4*65 | 6 | 30 |
| 6*70 | 4*75 | 6 | 40 |
| 6*80 | 4*85 | 6 | 50 |
| 8*50 | 5*55 | 8 | 15 |
| 8*60 | 5*65 | 8 | 20 |
| 8*80 | 5*85 | 8 | 40 |
| 8*100 | 5*105 | 8 | 60 |
| 8*115 | 5*120 | 8 | 80 |
| 8*135 | 5*140 | 8 | 90 |
| 10*80 | 7*85 | 10 | 40 |
| 10*100 | 7*105 | 10 | 50 |
| 10*120 | 7*125 | 10 | 80 |
| 10*140 | 7*145 | 10 | 90 |
| 10*160 | 7*165 | 10 | 110 |
1. Speed up the construction rate more than 10 times than using traditional External Wall Insulation Fixing.
2. Air mechanics,high efficiency, safe and reliable, economy, environmental friendly.
3. External Wall plastic Insulation plug anchorsare suitable for any environments, lowest damage to benzene boards.
4. Compact-tructure, convenient to assemble, easy to maintain.
5. External Wall plastic Insulation plug anchors Fixing can be continuous use.

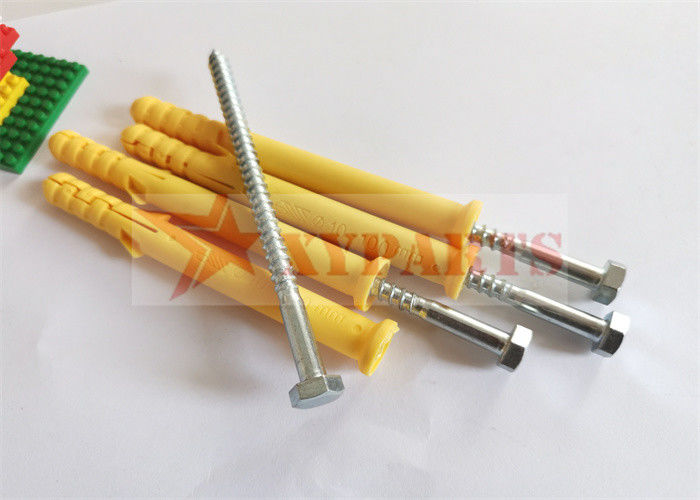

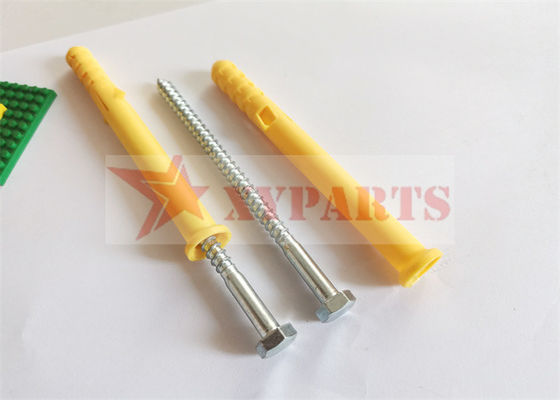

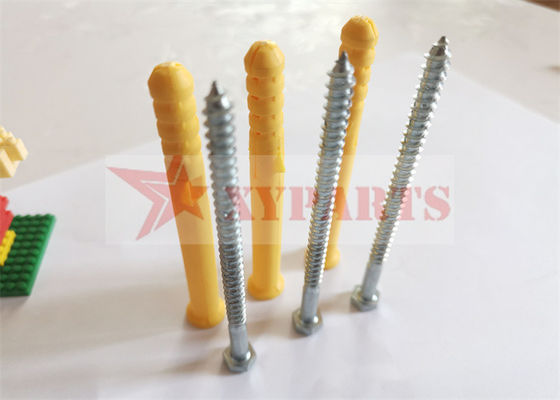

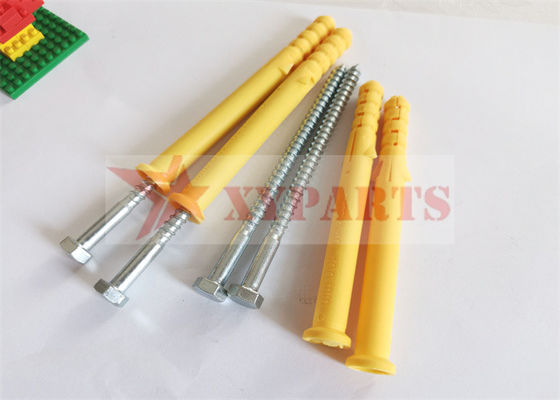

plastic insulation plug anchors is insulation board fixed on the wall of a kind of special engineering plastic bolts.Of exterior wall thermal insulation for heat preservation nail is the anchor pieces, widely used in building decoration, wall BaoWenWu anchorage.By galvanized screws, nylon tube rises and the fixed wafers.
