Product Details:
|
| Name: | 35mm Plastic Insulation Washer | Material Sources: | Plastic |
|---|---|---|---|
| Color: | White,Blue,Gray | Application: | Brick Wall,Concrete Wall |
| Washer Size: | 35mm | Sample: | Provide,free |
| Dirve Pin: | 3.7mm / .145'' | Fixed Tools: | PT-27.27 Cal General Purpose Powder-Actuated Tool |
| Highlight: | plastic insulation washer,35mm soft washer nail,Pre Mounted Plastic Washer |
||

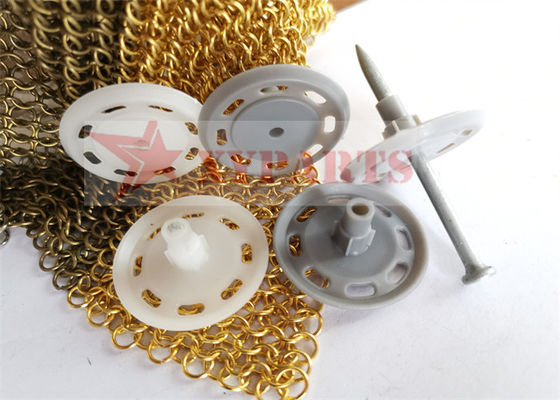

Plastic insulation washer with pre-mounted nail, for attaching waterproofing membrane to concrete or masonry.
Application: Membranes and drainage plates, Nets, fabric and similar, Plastic corrugated sheets, Insulation up to 30 mm thick
For use with (tools): DX 2, DX 351 M/E, DX 36, DX 460 F8, DX 5 F8, DX 6 F8, DX E72
Corrosion protection: Galvanized zinc coated <20 µm
The PRE-Mounted plastic insulation washer is a powder-actuated washered pin designed to fasten rigid insulation board to building structures. The PRE-Mounted plastic insulation washer consists of a 0.300"-headed fastener with a pre-mounted 1-3/8" flat plastic washer. The plastic insulation washer pin is for high-volume applications and is designed for fastening into concrete and steel.
| Material | Washer size | Pins Size | Board thickness | Packing methods |
| Galvanized steel pins +Plastic washers | 35mm | 1'' (25mm) | 11-15mm | 500 pcs per carton |
| Galvanized steel pins +Plastic washers | 35mm | 1 1/4''(32mm) | 15-20mm | 500 pcs per carton |
| Galvanized steel pins +Plastic washers | 35mm | 1 1/2''(38mm) | 25-30mm | 500 pcs per carton |
| Galvanized steel pins +Plastic washers | 35mm | 2 1/2''(63.5mm) | 50-60mm | 500 pcs per carton |
| Note | plastic insulation Washer size and pins size could be customized for large order | |||
