Aluminum Solar Guard Wire Mesh Clips Used To Secure Bird Proofing Wire Mesh Onto Solar Panels

Aluminum Solar Guard Wire Mesh Clips Used To Secure Bird Proofing Wire Mesh Onto Solar Panels
Aluminum Solar Guard Wire Mesh Clips Used To Secure Bird Proofing Wire Mesh Onto Solar Panels
Aluminum Solar Guard Wire Mesh Clips Used To Secure Bird Proofing Wire Mesh Onto Solar Panels Aluminum Solar Guard Wire Mesh Clips Used To Secure Bird Proofing Wire Mesh Onto Solar Panels Aluminum Solar Guard Wire Mesh Clips Used To Secure Bird Proofing Wire Mesh Onto Solar Panels Aluminum Solar Guard Wire Mesh Clips Used To Secure Bird Proofing Wire Mesh Onto Solar Panels

Large Image :  Aluminum Solar Guard Wire Mesh Clips Used To Secure Bird Proofing Wire Mesh Onto Solar Panels

Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: Aluminum Solar Guard Wire Mesh Clips
Payment & Shipping Terms:
Minimum Order Quantity: 10000 PCS
Packaging Details: in a plastic bags then put all of them in a carton boxes
Delivery Time: 8 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 500000 SETS PER 30 DAYS

Aluminum Solar Guard Wire Mesh Clips Used To Secure Bird Proofing Wire Mesh Onto Solar Panels

Description
Name: Aluminum Solar Guard Wire Mesh Clips Factory Name: Xiangyi Metal
Material: Aluminium J Hook Diameter: 2.5mm
Surface Finish: UV Resistant Black Coating Length: 115mm
Sample: Support Self Locking Washers: 38mm
Application: Secure Bird Proofing Wire-mesh Onto Solar Panels Service: Customization Service And Door To Door Service
High Light:

Solar Guard Wire Mesh Clips

,

wire mesh aluminum clips

,

Bird Proofing Wire Mesh clips

Aluminum Solar Guard Wire Mesh Clips Used To Secure Bird Proofing Wire Mesh Onto Solar Panels

Description Of The Aluminum Solar Guard Wire Mesh Clips:

Aluminium Solar Guard Wire Mesh Clips are used to secure bird proofing wire mesh onto

solar panels.

The Aluminium Solar Guard Wire Mesh Clips together with the bird proofing wire mesh could

protect solar panels from being damaged by birds, pigeons, or other animals.

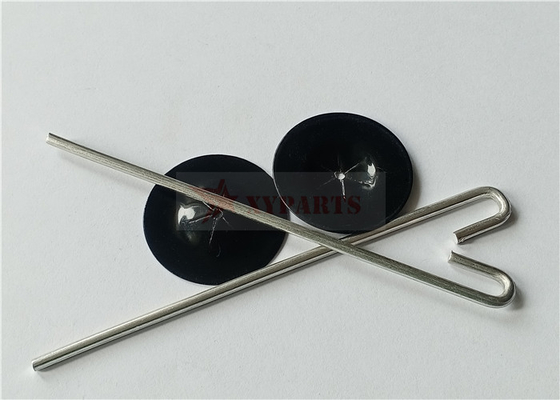

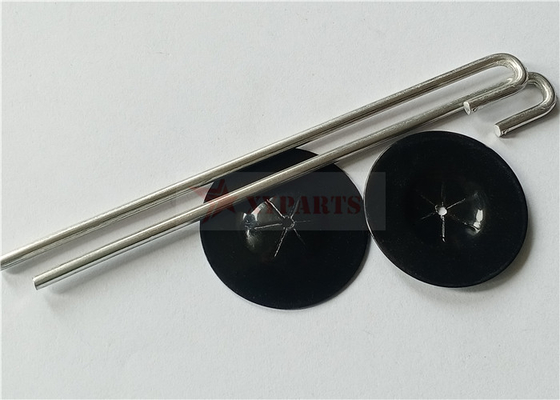

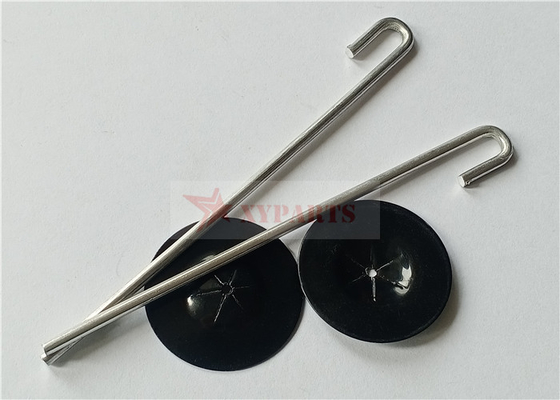

The Aluminium Solar Guard Wire Mesh Clips include two parts: a J hook and a self locking

washer.



For the J hooks, the material is soft aluminium wire (stainless steel material also available),

the soft aluminium wire is easily to be bent.



For the self locking washers, the material is high hardness aluminium alloy sheet, it could lock

the J hooks firmly and nondeformly. In addition, the self locking washers are with UV resistant

black coating surface finish which provides maximum endurance to outdoor elements.



Name

 Aluminium Solar Guard Wire Mesh Clips

J hook material

 aluminum alloy wire (stainless steel material also available)

J hook diameter

 2.5 mm

J hook length

 115mm

Washer material

 aluminum alloy sheet (stainless steel material also available)

Washer thickness

 0.6mm

Washer surface finish

 UV resistant black coating

Washer type

 round or square

Washer size

 38mm or others

Finsh for washer

 UV coating black color

Aluminum Solar Guard Wire Mesh Clips Used To Secure Bird Proofing Wire Mesh Onto Solar Panels 0



Applications Of The Aluminium Solar Guard Wire Mesh Clips:





1) Features and Benefits

>Clips will not scratch, pierce or impact integrity of solar panels.
>Clips are used to secure the mesh to solar panels which creates a physical barrier to keep

birds from accessing and nesting in the area beneath the solar arrays

2) Calculating the number of solar guard wire mesh clips for solar panels needed

The number of clips needed will depend on the solar panel system. A standard 3kW system

(2 rows of 6 panels each - 12 panels total installed in a portrait orientation) requires 35 clips.

When calculating the necessary number of clips need for a solar array:



Space clips no more than 1.5 feet apart
Use 2 clips for the short side of every exposed edge of a panel
Use 3 clips for the long side of every exposed edge of a panel
Clips are available in packs of 35, 50 and 100



Aluminum Solar Guard Wire Mesh Clips Used To Secure Bird Proofing Wire Mesh Onto Solar Panels 1



Package Of The Aluminum Solar Guard Wire Mesh Clips:



J hook fasteners

 1. 100 pcs per pp bag, 80 bags per carton

 2. 500pcs per pp bag, 16bags per carton

 3.1000pcs per pp bag, 8 bags per carton

self locking washer

 1. 100 pcs per pp bag, 60 bags per carton

 2. 500pcs per pp bag, 12bags per carton

 3.1000pcs per pp bag, 6 bags per carton

Aluminum Solar Guard Wire Mesh Clips Used To Secure Bird Proofing Wire Mesh Onto Solar Panels 2
