304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers

I'm Online Chat Now

304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers

304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers
304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers
304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers 304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers 304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers 304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers

Large Image :  304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers

Product Details:
Place of Origin: China
Brand Name: XIANGYI
Certification: ISO9001-2015
Model Number: BirdAway Solar Panel Deterrent Clips
Payment & Shipping Terms:
Minimum Order Quantity: 10000 sets
Packaging Details: 100 pcs per bag or 60 pcs per bag or 500pcs per bags+ carton package
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500000 sets per 30 days

304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers

Description
Name: Stainless Steel Material BirdAway Solar Panel Deterrent Clips Factory: Xiangyi Metal Factory
Usage: Fasten The Solar Panel Mesh J Hook Material: Stainless Steel
J Hook Surface: Polish J Hook Size: 2.0mm X 100mm
Self Locking Washers Material: Stainless Steel Self Locking Washers: 38mm
Self Locking Washers Surface: Double Side Black Coating Samples: Supported
High Light:

Solar Panel Deterrent Clips

,

clips with J hook

,

304SS solar panel bird deterrent clips

304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers



Quick Details Of The Stainless Steel BirdAway Solar Panel Deterrent Clips:



BirdAway Solar Panel Bird Deterrent Clips are used as the fastening system for wire-mesh

barrier pest deterrent systems between solar panels and roofing.

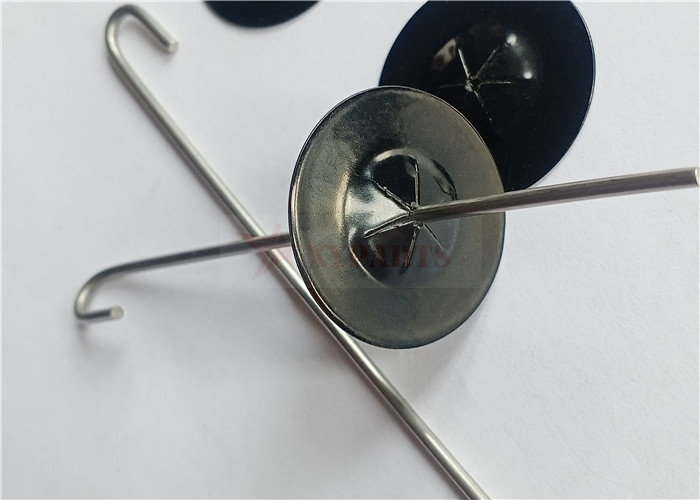

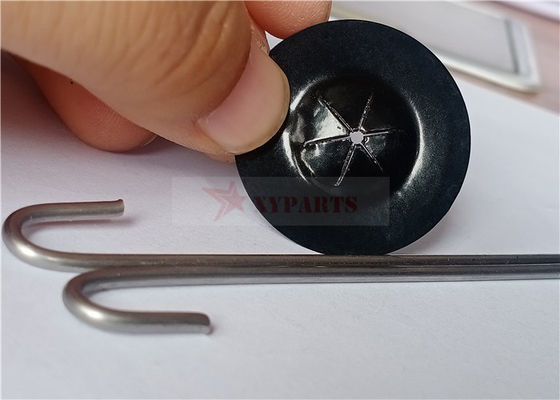

BirdAway Solar Panel Deterrent Clips are 100mm long and have a j-hook on one end which

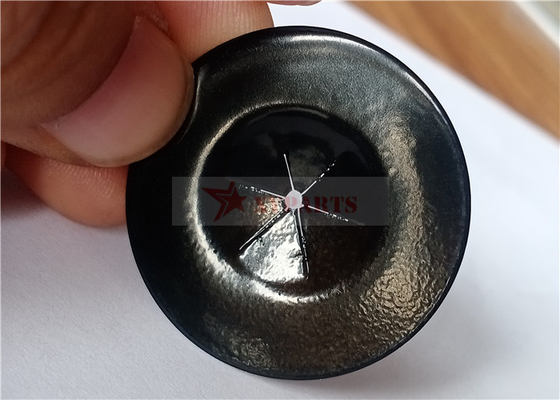

grasps the bracketing of the solar panel. A self-locking speed washer is then used to secure

the wire mesh in place.



Both the clips and washers are made of high-grade stainless-steel material which provides

maximum endurance to outdoor elements.



Item

BirdAway Solar Panel Deterrent Clips

Contain

J hooks and self locking washers

J hook material

Stainless Steel (Aluminium Material Also Available)

J hook size

2.0x100mm

J hook surface finish

Polish

Washer material

Stainless Steel (Aluminium Material Also Available)

Washer size

38mm

Washer surface finish

Double side black coating surface finish for UV resistant

304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers 0304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers 1



Applications Of The BirdAway Solar Panel Deterrent Clips:





The number of solar panel bird clips needed will depend on the solar panel system. A standard 3kW system (2 rows of 6 panels each - 12 panels total installed in a portrait orientation) requires 35 clips. When calculating the necessary number of clips need for a solar array:

Use 2 clips for the short side of every exposed edge of a panel
Use 3 clips for the long side of every exposed edge of a panel
Clips are available in packs of 25 clips and washers.



304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers 2



Package Of The Stainless Steel BirdAway Solar Panel Deterrent Clips:



J hook standard package

1. 100 pcs per pp bag, 80 bags per carton

2. 500pcs per pp bag, 16bags per carton

3.1000pcs per pp bag, 8 bags per carton

self locking washer

1. 100 pcs per pp bag, 60 bags per carton

2. 500pcs per pp bag, 12bags per carton

3.1000pcs per pp bag, 6 bags per carton

304 Stainless Steel Material BirdAway Solar Panel Deterrent Clips 2.0x100mm With Washers 3



FAQ Of Xiangyi Parts:



1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.

3. Can i get samples?
Yes, samples for quality confirm are supported in our company.

4. Can you accept small orders?

Yes, for common size, we could accept small orders.

5. How do you control and ensure product quality?

1) Confirm with you every details before quoting.

2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.

4) We will send you videos and pictures during the production and shipment process.

6. Advantage Of Xiangyi Parts.

Cooperate with us, we can ensure:

1) Competitive price: we sale what we manufacture.

2) On-time delivery: we have the auto-production line to ensure the on-time delivery.

3) Excellent quality: we have rich experience, our products are in line with international standard.

4) Good after-sale service: we offer good after-sale service for each order.
