Product Details:
|
| Name: | Stainless Steel 304 Material Solar Panel Exclusions Clips | Factory: | Xiangyi Metal Factory |
|---|---|---|---|
| Usage: | Fasten The Solar Panel Mesh | J Hook Material: | Stainless Steel |
| J Hook Surface: | Polish | J Hook Size: | 2.0mm X 100mm |
| Self Locking Washers Material: | Stainless Steel | Self Locking Washers: | 38mm |
| Self Locking Washers Surface: | Double Side Black Coating | Samples: | Supported |
| High Light: | Solar Panel Exclusions Clips,Clips Prevent Birds,solar panel exclusion kit J hook |
||
Xiangyi Solar Panel Exclusion Clips are reliable and not easy to deform, rust or break for long
term use, because it's made of quality 304 stainless steel material and with good resistance to
corrosion and oxidation.
The Solar Panel Exclusion Clips used together with the bird proofing wire mesh can prevent
birds from nesting under solar arrays and other critters from entering and damaging the system.

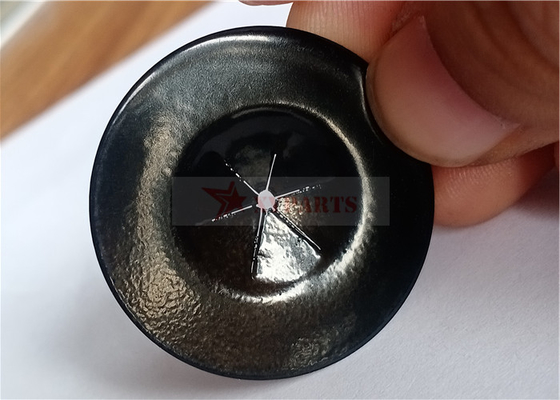

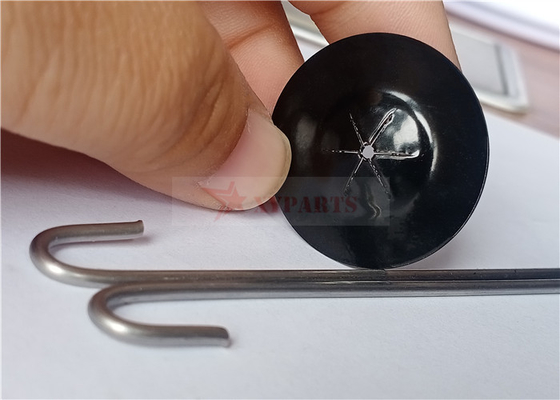

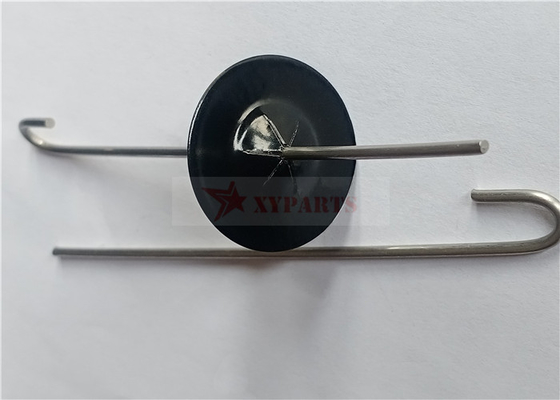

The Solar Panel Exclusion Clips are combined of two parts: a J hook and a self locking washer
with two side black uv surface surface finish.
|
Item |
Solar Panel Exclusion Clips |
|
Contain |
J hook and self locking washers |
|
J hook material |
Stainless Steel (Aluminium Material Also Available) |
|
J hook size |
2.0x100mm |
|
J hook surface finish |
Polish |
|
Washer material |
Stainless Steel (Aluminium Material Also Available) |
|
Washer size |
38mm |
|
Washer surface finish |
Double side black coating surface finish for UV resistant |
| Noted |
1. For the J hooks, the material is anneaded stainless steel wire, it is easy to be bent over, it is very improtant for fixing welded wire mesh. 2. For the self locking washers, the material is hardness stainless steel material, it could lock the j hooks firmly and nondeformable. 3. For the self locking washers, we must consider left time, so two side anti-uv black coating for the stainless steel self locking washers could make it more durable. 4. Xiangyi Stainless Steel 304 Material Solar Panel Exclusion Clips will not drill or damage the panels. 5. The installation and remove of the Stainless Steel Solar Panel Exclusion Clips are quickly and easily. |
 |
|
|
> The QTY needed for one solar panel: A typical solar panel is approximately 1.6m tall and 1m wide, on a typical panel one should use 3 clips on each long edge and 2 on each short edge. > The QTY needed for one roll: usually the length of solar panel roll is 30m, each roll is allocated with 60 clips. > The QTY needed for a standard 3kW system (2 rows of 6 panels each - 12 panels total installed in a portrait orientation) : 35 J hooks with self locking washers.
|
|
|
J hook standard package |
1. 100 pcs per pp bag, 80 bags per carton 2. 500pcs per pp bag, 16bags per carton 3.1000pcs per pp bag, 8 bags per carton |
|
self locking washer |
1. 100 pcs per pp bag, 60 bags per carton 2. 500pcs per pp bag, 12bags per carton 3.1000pcs per pp bag, 6 bags per carton |
|
|
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
6. Advantage Of Xiangyi Parts.
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
