Product Details:
|
Product Name: | Plastic Cap Washers | Material: | Plastic Cover With Metal Speed Clips |
---|---|---|---|
Application: | To Lock Pins For Ship Building Industry | Washer Size: | 43mm |
Insert Clip Size: | 38mm In Round Shape | Technical: | Stamped |
Type: | Speed Clips | Company Type: | Factory |
Cap Color: | Black Or White | Sample: | Support |
High Light: | 43mm Dome Cap Washer,Ship Building Industry Dome Cap Washer,43mm Plastic cap washers |

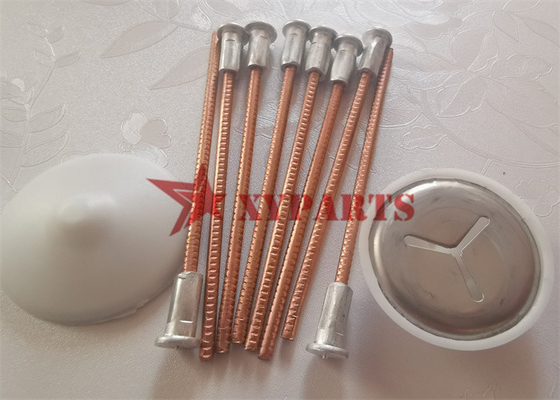

Quick details of the Plastic Cap Washer
The Plastic cap washers is formed by the plactic cover and 38mm speed clips . It widely used for fixing the CD weld pins , bimetal weld pins while buidng the vessel /marine .
Usage: for ship building industry .Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing works, and for the duct-lining
Name | Plastic cover dome cap washers |
Material | Plastic cap +metal clip |
Cap diameter | 43mm |
Cap color | Black , white in common |
Clip diameter | 38mm |
Center hole | 2mm,2.7mm,3.0mm,4mm,5mm . etc |
Application |
To fix rock wool pins , CD weld pins , bimetallic pins, lacing anchors for ship buildng industry.
|
Sample | Support. |
Domed caps washer are designed to be used where appearance and safety are major concerns. For best results, pins should be 1/4 in. longer
than the insulation thickness.
Secure insulation with a self-locking washer, then install the dome cap to cover the nail point.
Silver Dome Caps washer are the most economical and can be painted to match any color fabric. They also are used on FRK faced material.
Black Dome Caps washer are the preferred choice when installing black fiberglass acoustic board or with black fabrics.
White Finish Washers are used on ASJ faced material or white fabrics.
insulation fasteners including a lot of terms as follows:
