Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: Stick On Insulation Pins
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Packaging Details: 200-500 pcs per carton
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pcs oer hour

114mm Length Stick On Insulation Pins In Air Conditioning Hvac Systems

Description
Name: Stick On Insulation Pins Manufacturer: Hebei Xiangyi Metal Product Co.,ltd
Base Material: Galvanized Steel Or Stainless Steel Base Size: 50x50mm
Pin Material: Galvanized Steel Or Stainless Steel Or Aluminum Pin Dianeter: 2.7mm, 3.0mm, 3.4mm
Samples: Supported Pin Length: 38mm-230mm In Standard
High Light:

114mm length self stick pins

,

hvac systems self stick pins

,

114mm length stick on insulation pins

114mm Length Stick On Insulation Pins Used In Air Conditioning (HVAC) Systems

Quick Details Of The 114mm Stick On Insulation Pins

Stick On Insulation Pins are used widely in industries like Heating, Ventilation and

Air Conditioning (HVAC) Systems.

They are used in external thermal insulation and internal acoustic liner onto the duct surface.

The pin has a sticker backing to make fixing easier.

They also have a unique easy- peel adhesive backing design so that there isn’t any fumbling

with the release paper.





Factory Hebei Xiangyi Metal Product Co.,Ltd
Name

114mm Length Stick On Insulation Pins

Material Galvanized Steel
Base size 50x50mm

Base thickness

0.4mm

Adhesive thickness

1.0mm

Pin diameter 2.7mm
Pin length

114mm

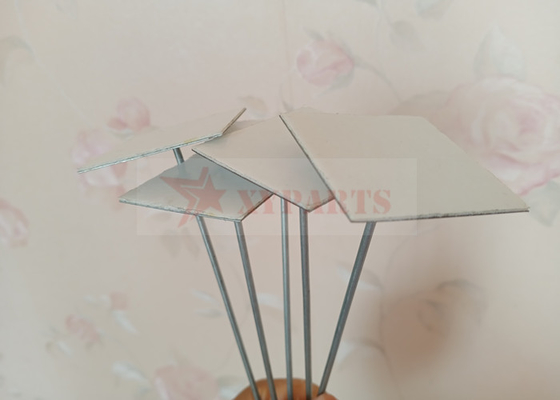

114mm Length Stick On Insulation Pins In Air Conditioning Hvac Systems 0



Specifications Of The Stick On Insulation Pins





COMPOSITION:

Pin: The pin is made from 12 gauge annealed low carbon steel.

(Available in copper coated, aluminum, or stainless steel.)

Base: 2" x 2" (50x50mm) square plate made from glavanized steel.

Adhesive foam: 1mm thick double sided foam with release paper.



TEMPERATURE RANGE:

0ºF to 140ºF



LOAD LIMIT:

2lbs per hanger



AVAILABLE SIZES:

Lengths from 3/4" up to 10" (19mm-250mm)



COMMON Length:

1-5/8": commonly used for 1-1/2" .75# fiberglass duct wrap

2-1/2": used for fiberglass duct wrap over 1-1/2" thick



RESTRICTIONS:

1. Do not use on metal buildings or ceilings where temperatures due to sunlight exposure

may exceed 140ºF

2. Do not use on cement, wood, or painted surfaces

3. Must be used on clean dust-free surfaces.

4. Do not exceed spacing of 12" between hangers and 2lb load per hanger.

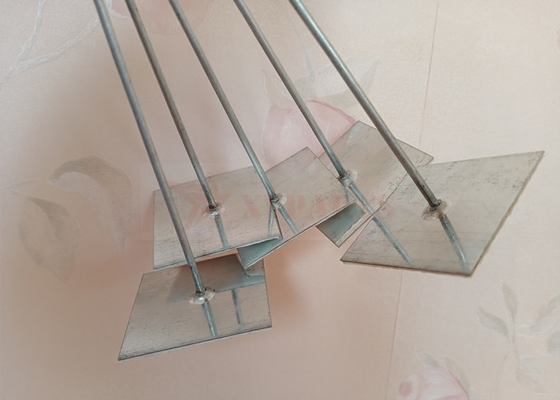

114mm Length Stick On Insulation Pins In Air Conditioning Hvac Systems 1



Application Of The Stick On Insulation Pins



1. Stick On Insulation Pins can only be stuck on clean, dry and smooth surface.
2. Remove any duct, loose paint, oil etc. Cleaning the surface is recommended.
3. Peel off the backing paper.
4. Place the stick on insulation pins in the required position.

5. Press the base against the cleaning surface.

6. Impale the insulation over the point of the stick on insulation pins.

7. Secure the insulation with the self locking washers

8. Bend or remove excess pins

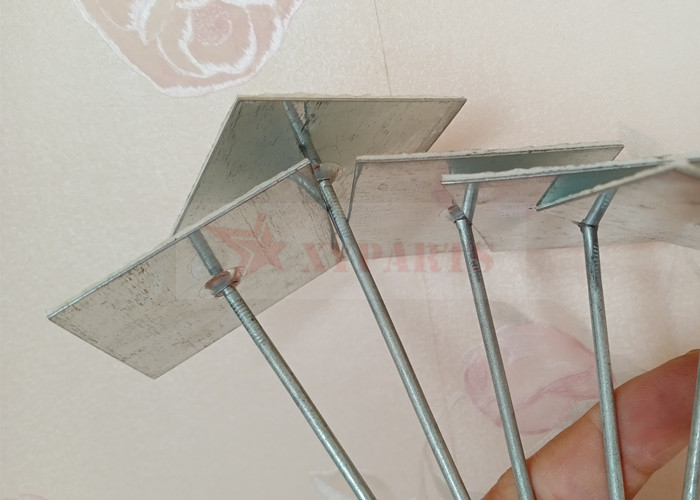

114mm Length Stick On Insulation Pins In Air Conditioning Hvac Systems 2



HEBEI XIANGYI METAL PRODUCT CO.,LTD



1.We choose the best quality materials for making insulation fasteners
2.We do copper plating, zinc coated and phosphating pretreatment for the raw material using

drawing machine.
3.We purchase the multi-station cold forging machine to ensure the better mechanical property

of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.),
or as per customer's special requirement.
4.We use the automatic riveting machine to install .
5.After rust prevention, XIANGYI insulation fasteners can suitable for long time ship on the sea.
6.Short delivery time because of our reasonable production flow management.



114mm Length Stick On Insulation Pins In Air Conditioning Hvac Systems 3
