Product Details:
|
| Name: | Stainless Steel Perforated Insulation Pins | Factory: | Xiangyi Parts |
|---|---|---|---|
| Base Material: | Galvanized Steel Or Stainless Steel | Base Size: | 40x40, 50x50 Etc. |
| Pin Material: | Galvanized Steel Or Stainless Steel Or Aluminum | Base Thickness: | 0.4mm, Etc. |
| Package Design: | Supported | Pin Diameter: | 2.7mm, 3.0mm, 3.4mm Etc. |
| Special Size: | Supported | Pin Length: | 1" - 12" |
| High Light: | 1" perforated insulation pins,fix fiberglass perforated insulation pins,mineral wool board perforated insulation pins |
||
Perforated insulation pins are used to impal and install various acoustic materials such as
fiberglass boards or mineral wool boards.
Perforated insulation pins are made of a metal base with a vertical pin attached, the pin is
riveted on the metal base, so the perforated insulation pins are very strong.
Self-locking washers are needed to lock the material to the pin, Xiangyi's self locking washers
are very hard, it could lock the perforated insulation pins very firmly.
|
Material available |
|
|
Pin material |
-mild steel: must be annealed treatment, easy for bend; zinc coated/copper plated finished for anti-rust -aluminum 1100 grade -annealed stainless steel for specification |
|
Base |
Galvanized steel, stainless steel |
|
Common size details |
|||
|
Pin diameter |
Pin length |
Base thickness |
Base size |
|
12ga(2.7mm) |
1”-12” |
0.4mm |
50x50mm/40x40mm |
|
3mm |
1”-12” |
0.4mm |
50x50mm/40x40mm |
|
10ga(3.4mm) |
1”-12” |
0.4mm |
50x50mm/40x40mm |
|

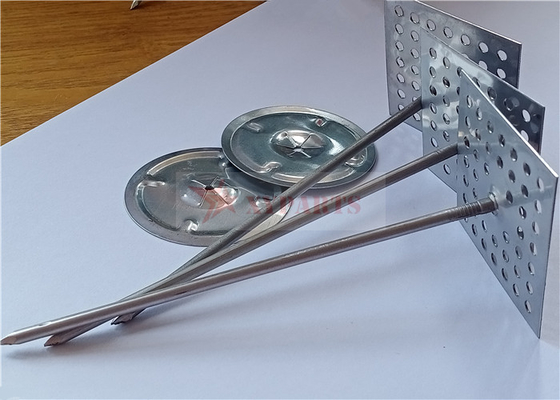

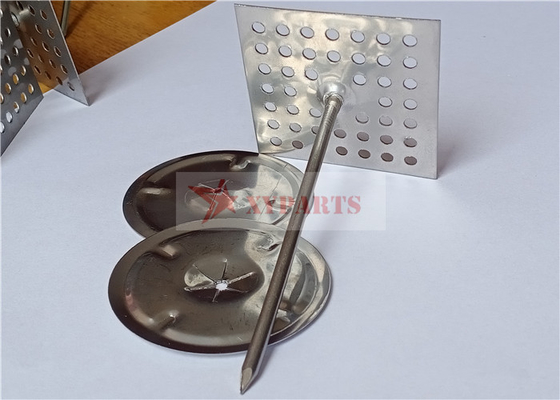

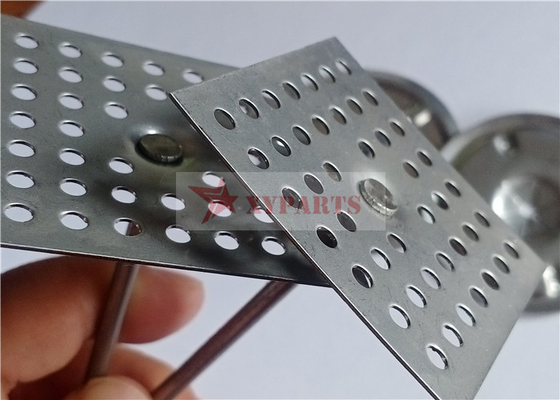

Imges Of The Perforated Base Insulation Hangers |
|
 |
* Application specific design
* Corrosion resistance
* Efficiency
* Eco friendly product
* Weather proof
* Long serving life
* Sturdy construction
|
PIN LENGTH |
CARTON SIZE |
QTY/CARTON |
|
38MM |
41CMX28CMX17CM |
1000PCS |
|
50MM-65MM |
41CMX28CMX17CM |
500PCS |
|
70MM-84MM |
30CMX28CMX17CM |
500PCS |
|
90MM-120MM |
30CMX30CMX30CM |
500PCS |
|
130MM-160MM |
30CMX30CMX30CM |
500PCS |
|
170MM-203MM |
30CMX30CMX30CM |
250PCS |
|
OTHERS |
SUPPORT CUSTOM |
|
|
||
1.We choose the best quality materials for making insulation fasteners
2.We do copper plating, zinc coated and phosphating pretreatment for the raw material using
drawing machine.
3.We purchase the multi-station cold forging machine to ensure the better mechanical property
of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per
customer's special requirement.
4.We use the automatic riveting machine to install .
5.After rust prevention, XIANGYI insulation fasteners can suitable for long time ship on the sea.
6.Short delivery time because of our reasonable production flow management
