Product Details:
|
| Product Name: | Solar Panel Mesh Clips | Material: | Aluminum ,stainless Steel |
|---|---|---|---|
| Hook Size: | 2.4x95mm | Washer: | 28mmx32mm |
| Small Packing: | Support | Sample: | Available |
| Usage: | Fix Solar Panel Mesh | Service: | Door To Door Service |
| High Light: | 100 pack solar mesh clips,squirrel guard solar mesh clips,pigeon guard solar panel mesh fasteners |
||

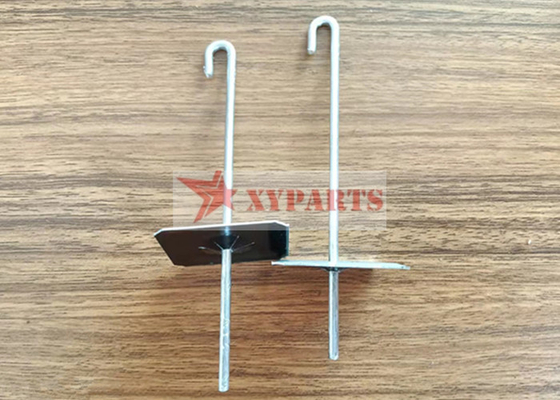

Solar panel mesh clips include a J hook nail and washer
• For the j hook nails,the size is 95x2.4mm , the material aluminum or stainless steel
• For the speed locking washer,the size is 29x31mm , the material is alloy aluminum
When calculating the necessary number of clips need for a solar array:
Use 2 clips for the short side of every exposed edge of a panel
Use 3 clips for the long side of every exposed edge of a panel
| wire hooks type | material | thickness | length | surface treatment |
| J hooks | aluminum | 2.5mm | 95mm, 114mm | Phosphating |
| OEM | custom | custom | custom | custom |
| Birds Exclusion Hooks | aluminum | 0.6mm | 29x31mm, 30mm, 30mmx50mm | black uv finished |
| OEM | custom | custom | custom | custom |
Slide the speed washer onto the shaft of the clip assembly until snug. Tighten speed washer to panel edge
to immobilize the mesh. Cut of the clip assembly rod flush with the exterior of the speed washer by cutter.
|
features of Aluminum Self Locking Clips |
|
· No need to drill or damage the panels · It can easily be trimmed or bent after assembly · Install and remove quickly and easily |
For the j hook nails, the material is must choose anneaded steel wire /stainless steel wire or soft aluminum
wire. it is very important for the fixing wire mesh. soft wire is easily for bending.
For the speed locking washer, we must choose hardness material to make sure to lock firmly and
non deformable. at the same time, we must concider left time, so uv coated for aluminum washer
or choose stainless steel material to make rustproof.
|
Packing of solar panel mesh clip |
|
|
100 pcs pack |
1000 pcs pack |
|
1. 100 pcs per pp bag, 80 bags per carton 2. 500pcs per pp bag, 16bags per carton
3.1000pcs per pp bag, 8 bags per carton
Carton size: 41 cm x 28 cm x17 cm
|
1. 100 pcs per pp bag, 60 bags per carton 2. 500pcs per pp bag, 12bags per carton 3.1000pcs per pp bag, 6 bags per carton Carton size: 41 cm x 28 cm x17 c |
|
|
|
