Home ProductsSolar Panel Clips

100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers

I'm Online Chat Now

100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers

100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers
100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers
100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers 100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers 100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers 100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers 100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers

Large Image :  100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers

Product Details:
Place of Origin: China
Brand Name: XIANGYI
Certification: ISO9001-2015
Model Number: Solar Panel Bird Deterrent Clips
Payment & Shipping Terms:
Minimum Order Quantity: 10000 sets
Packaging Details: 100 pcs per bag or 60 pcs per bag or 500pcs per bags+ carton package
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500000 sets per 30 days

100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers

Description
Name: Aluminum Solar Panel Bird Deterrent Clips Material: Aluminum
Usage: Fixing The Solar Panels Factory: Xiangyi Metal Factory
Size: 29x31mm , 30mm , 30x50mm J Hook Size: 2.4 Mm X 95 Mm / 114mm
Treatment: Anti-ultraviolet Coating Sample: Supported
High Light:

100pcs pack solar mounting clips

,

aluminum bird deterrent solar mounting clips

,

self locking washers solar panel clips

100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers



Specification Of The Aluminum Solar Panel Bird Deterrent Clips



solar panel clip is made of two parts: J-hook and self locking washer.
100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers 0
Material A (overall length) B (diameter) C (width) D (height) E (washer diameter)
Aluminum 95mm, 114mm 2.5mm 9.7mm 9.7mm 29x31mm, 30mm, 30mmx50mm



material treatment for solar panel clips
  • For the J hooks, the material commonly is of anneaded steel wire or stainless steel wire or soft aluminum wire. it is very important for the fixing of the wire mesh, soft wire is easily for bending.

  • For self locking washer, we must choose hardness material to make sure to lock firmly and nondeformable, at the same time, we must consider the working time, so we choose uv coated aluminum material or stainless steel material to make the self locking washers.

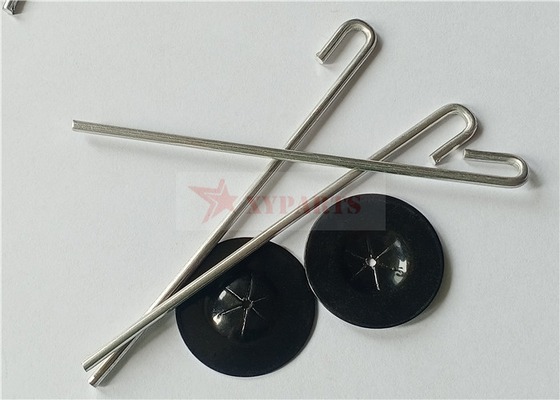

Images Of The Aluminum Solar Panel Bird Deterrent Clips



100pcs Pack Aluminum Solar Panel Bird Deterrent Clips WIth Self-locking Washers 1


Applications Of The Solar Panel Bird Deterrent Clips

1) Features and Benefits

>Clips will not scratch, pierce or impact integrity of solar panels.
>Clips are used to secure the mesh to solar panels which creates a physical barrier to keep birds from

accessing and nesting in the area beneath the solar arrays

2) Calculating the Number of Solar Clips Needed

The number of clips needed will depend on the solar panel system. A standard 3kW system (2 rows of 6

panels each - 12 panels total installed in a portrait orientation) requires 35 clips. When calculating the

necessary number of clips need for a solar array:



Space clips no more than 1.5 feet apart
Use 2 clips for the short side of every exposed edge of a panel
Use 3 clips for the long side of every exposed edge of a panel
Clips are available in packs of 35, 50 and 100

Exclusion Squirrels Guard Mesh Solar Panel Clips With PVC Coated Weld Wire Mesh 1

Package Of The Solar Panel Bird Deterrent Clips



J hook standard package

1. 100 pcs per pp bag, 80 bags per carton

2. 500pcs per pp bag, 16bags per carton

3.1000pcs per pp bag, 8 bags per carton

self locking washer

1. 100 pcs per pp bag, 60 bags per carton

2. 500pcs per pp bag, 12bags per carton

3.1000pcs per pp bag, 6 bags per carton

Aluminum Aviary Solar Panel Clips Fasteners For 8" Squirrel Guard Kit Fixed 2Aluminum Aviary Solar Panel Clips Fasteners For 8" Squirrel Guard Kit Fixed 3Aluminum Aviary Solar Panel Clips Fasteners For 8" Squirrel Guard Kit Fixed 4




FAQ- XIANGYI METAL PRODUCT CO., LTD



1. Q: First time import, how can I believe that you would send product?

A: We are verified company by Alibaba ,to make transaction success, we support and recommend TT or Trade Assurance

2. Q: Do you provide samples? is it free or extra?

A: Yes, we can. Sample cost is based on actual product.

3. Q: What should we do if there have problems during using product?

A: My dear friend,there are any product problems of yours, you can E-mail or call me, we will provide our best professional service for you!

4. Q: When do you delivery?

A: Depends on order quantity.some have in stock.

5. Q: Can you accept customized?

A: Of course ,we accept OEM based on MOQ
