Product Details:
|
| Product Name: | Stainless Steel Ring Mesh Curtain | Material: | Stainless Steel 304/316 |
|---|---|---|---|
| Ring Type: | Welded Type And Non-welded Type | Technical: | Hand-woven |
| Welded Size: | 0.53x3.81mm ,0.7x8mm,1.5x15mm | No-welded Size: | 1.0x8mm ,1.2x10m,1.5x15mm,2.0x20mm,2.5mmx25mm |
| Usage: | Staircases Isolation | Service: | Door To Door Service |
| High Light: | stainless steel 304 ring mesh curtain,staircases isolation ring mesh curtain,staircases isolation decorative mesh curtain |
||
| Part No. | TYPE | MATERIAL | WIRE DIAMETER | OUTER DIAMETER | WEIGHT/M2 |
| HH-SS-053 | WELD | Stainless steel | 0.53MM | 3.81MM | 3.2kgs |
| HH-SS-080 | WELD | Stainless steel | 0.80MM | 7.00MM | 2.8kgs |
| HH-SS-150 | WELD | Stainless steel | 1.5MM | 15MM | 4.8kgs |
| HH-SS-200 | WELD | Stainless steel | 2.0MM | 20MM | 6.8kgs |
| HH-SS-100 | NON-WELDING | Stainless steel | 1.00MM | 8.00MM | 4.7kgs |
| HH-SS-120 | NON-WELDING | Stainless steel | 1.20MM | 10.00MM | 4.8kgs |
| HH-SS-150 | NON-WELDING | Stainless steel | 1.5MM | 15.00MM | 4.8kgs |
| HH-SS-200 | NON-WELDING | Stainless steel | 2.0MM | 20.00MM | 6.8kgs |

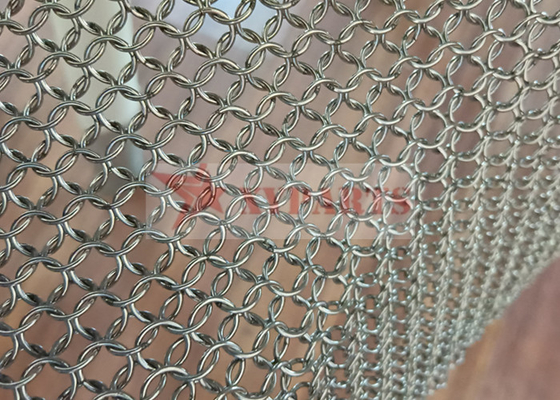

Metal ring mesh curtain is a creative concept, a new decoration material for architecture, and interior and
exterior design. Also often known as chainmail curtain. Many thousands of individual metal rings joined
together to form a huge mesh curtain with a unique radiance. They are manually spliced or welded manually.
Compared with the chain curtain and wire mesh curtain, the material of ring mesh and the welded metal
structure make it have higher tensile strength and can withstand large forces. Will not deform or become
incomplete because of twisted, bent, elongated or strained.
We provide two ring connection methods, non-welded and welded. Because they are all pure hand stitching
processes, the cost difference between the two methods is large.Generally, the non-welded connection
method with lower cost can meet most needs, while the welded ring connection makes mesh structure is
stronger and can bear higher weight without cracking, and the manual cost is higher.
| weld type archnitectural Metal wire ring mesh can be used as: | |
|
· Door curtain. · Stage curtain wall. · Wall ceiling. · Interior partition |
· Window curtain. · Room divider. · Lamp shade. · Architecture outside designs |
| weld typearchitectural metal wire ring mesh widely used in: | |
|
· Residences. · Shops. · Stair handrails. · Upscale resorts. · Kitchen. · Discotheques |
· Hotels. · Restaurants. · Shopping malls. · Showrooms. · Office. · Stage sets. |
High tensile strength
Rust resistance
Longer service time than ordinary curtain
Beautiful appearance
Low maintenance advantage
1.pattern design support according to the application
2.frame design support according to the installation
3.surface treatment support ,inclode to the installation
4.supply install accessories ,include PVDF,PVD Spraying
5.Material:stainless steel ,copper ,bronze ,brass ,aluminum ,aluminum alloy ,ect
6.Weave type :Plain weave,twill weave ,dutch weave ,plain dutch weave ,twill weave ,uinque woven method,ect
7.ISO9001-2008 Quality certification management system
