Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards

I'm Online Chat Now

Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards

Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards
Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards

Large Image :  Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards

Product Details:
Place of Origin: China
Brand Name: XY
Certification: ISO9001
Model Number: XY-DW35
Payment & Shipping Terms:
Minimum Order Quantity: 20000 pcs
Packaging Details: Plastic bag +carton +pallet
Delivery Time: Within 12 work days
Payment Terms: L/C, T/T
Supply Ability: 150000 pcs per weelk

Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards

Description
Name: 35mm Metal Fixing Washers Material: Mild Steel Or SS 304,316 Material
Shape: Round Tyep: Perforated Wtih Round Hole
Washers Dia: 35mm Thickness: 0.7mm
Center Hole: 5mm Fixing Parts: Metal Dowels, Nails , Screws
High Light:

35mm Dia Metal Fixing Washers

,

Metal Fixing Washers With Dowels

,

Galvanized Steel Metal Fixing Washers

Galvanized Steel 35mm Dia Metal Fixing Washers With Dowels For Insulation Boards

****************************************************************************************************************************************************************   Details of the 35mm metal fixing washers

  • ​Material : MIld steel or SS304/316 material
  • Shape of the washers : Round
  • Type: Perforated type( Center hole +Nos of edge hole)
  • Hole size : 5.0mm
  • Dowels : 12-200mm, dia: 4.8mm
  • Thickness of the washers:0.7mm in common ,
  • Surface treatment : galvanized for the mild steel , polished for the SS material
  • Fixing parts: Metal dowels/nails , screws
  • Application : to fix insulaitoin board with dowels or nails .

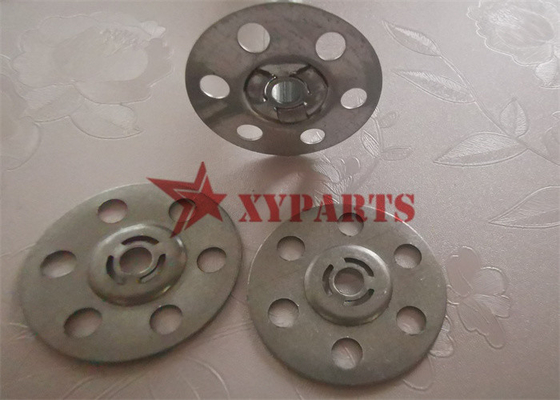

Photos 35mm metal washers
Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards 0 Name  Perforated metal disc washers
Material  Stainless steel  Mild steel
Surface treatment  Polished  Galvanized /zinc coating
Thickness  0.7mm
Washer diameter 35mm
Center hole dia 5mm in common ,
Fixing dowels dia 4.8mm
Packing 200pcs or 500pcs per bag, then put into carton
  NOTE The size also could be customized for big order

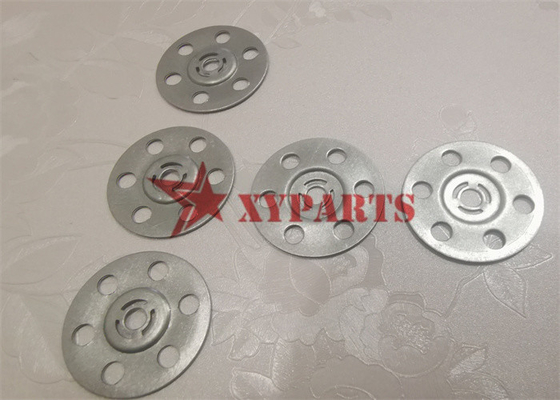

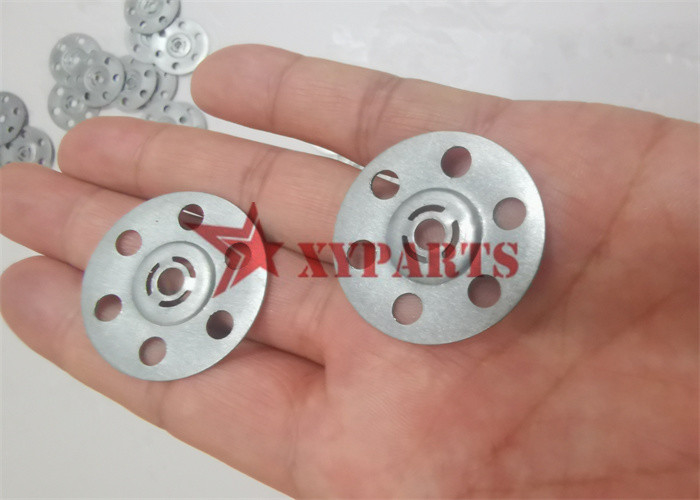

*****************************************************************************************************************************   Image details of the 35mm metal fixing washers

Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards 1Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards 2



*************************************************************************************************************Feature of the 35mm metal fixing washers

Increasing the contact area between the insulation layer and the disc gasket can achieve the purpose of high pressure bearing, safer and more firm.



Firmer, good durability, high pressure, anti-corrosion, moisture-proof, no deformation, size support customization



*****************************************************************************************************************************************************************

Related products of the 35mm metal fixing washers

Metal plugs :made up of the 35mm metal washer and metal pipe.

Common type as the following :

Size Pin dia(D) Pin length (L) Base size (A) Material thickness(T) Packing
M8*50mm 8mm 50mm 35mm 0.7mm 250pcs /box
M8*60mm 8mm 60mm 35mm 0.7mm 250pcs /box
M8*90mm 8mm 90mm 35mm 0.7mm 250pcs /box
M8*110mm 8mm 110mm 35mm 0.7mm 250pcs /box
M8*140mm 8mm 140mm 35mm 0.7mm 250pcs /box
M8*170mm 8mm 170mm 35mm 0.7mm 250pcs /box
M8*200mm 8mm 200mm 35mm 0.7mm 250pcs /box
M8*230mm 8mm 230mm 35mm 0.7mm 250pcs /box

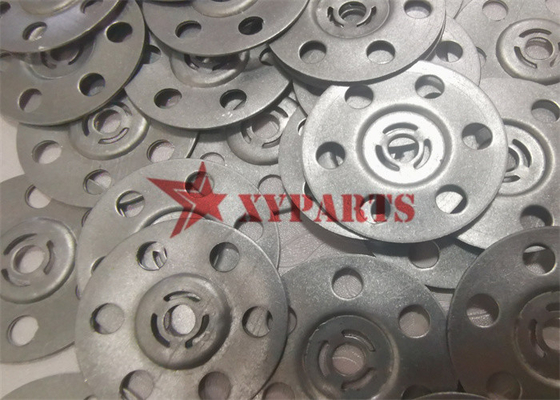

Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards 3


XIANGYI METAL PRODUCTS COMPANY

Our main products of the insulation fixing anchors including:

CD weld studs /pins , Bimetallic pins, Rovits ,Perforated base insulation pins, self stick/adhesive insulation pins , lacing hangers, and self locking washers/speed clips , dome cap washers



Galvanized Steel 35mm Dia Metal Fixing Washers For Insulation Boards 4

FAQ



Q1.You are a trading company or manufacturer?

We are manufacturer with more than 10 years production experience, and we have our own factory inHEBEI.



Q2.Can you send me a sample? Is it free?

Yes, the samples is free, but the courier charge should be on your side.



Q3.Mode of transportation?

By sea or by air.



Q4.How about the Delivery time?

Usually around 2-3 weeks after order confirmed.



Q5.Can you product the customized goods?

Surely, we can be customized according to your demanding.



Q6.What kinds of payment you accept?

We accept T/T, L/C at sight .others could be discussed.
