Home ProductsSelf Stick Pins

2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers

I'm Online Chat Now

2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers

2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers
2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers
2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers 2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers 2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers 2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers 2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers 2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers

Large Image :  2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers

Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: Self adhesive insulation pins
Payment & Shipping Terms:
Minimum Order Quantity: 10000 sets
Packaging Details: Plastic bag for the washers, then packed the washers & pins with carton
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Supply Ability: 200000 sets per week

2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers

Description
Name: Self Adhesive Insulation Pins Material: Mild Steel , Stainless Steel
Pin Diameter: 2.7mm Pin Length: 63mm, Or Customized
Washers Shape: In Round , Square Or Dome Cap Size: 30mm ,38mm In Common
Surface Treatment: Galvanized Steel , Polished Sample: Available
High Light:

HVAC System Self Adhesive Insulation Pins

,

2.7x63mm Insulation Pins

,

polished Self Adhesive Insulation Pins

2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers For HVAC System

*****************************************************************************************************************************************************************  Introduction of the self adhesive insulation pins

The self-adhesive heat insulation pins is very familiar to the workers in the heat preservation construction of air conditioning duct. The bottom is stamped with metal plate,such as galvanized steel plate, aluminum plate, stainless steel plated, the nail is made of carbon steel wire, with foam on the back and high-strength glue. It has strong bearing capacity and is not easy to fall off. It is constructed from these three parts. Self adhesive heat preservation nail, also known as self-adhesive heat preservation nail, has many advantages. The nail tip is sharp, which is conducive to penetrating the heat preservation material and easy to bend. It takes no effort during construction. The nail seat is firm, with size, automatic production, material selection, and various specifications and materials

  • Name : self adhesive insulation pins , self stick insulation pins , self stick insulation hangers
  • Plate material : galvanized steel , stainless steel
  • Pin material: mild steel , stainless steel , aluminum
  • Pin dia:2.7mm,3.0mm in common
  • Length: 25-250mm , customized length is available.
  • Fixing parts: self locking washers, dome cap washers, size :30mm,38mm in common.

Data sheet of the self adhesive insulation pins

Name

self adhesive insulation pins

Material Galvanized steel , stainless steel , aluminum
Pin diameter  2.7mm,3.0mm in common , also could be customized
Pin length 25-250mm , length could be customized
Adhesive thickness  1mm
Base size  50mm in square
Washers size

30mm,38mm in common

*****************************************************************************************************************************   Applications of the self adhesive insulation pins

It is widely used for the thermal insulation construction of boilers, shopping malls, subways, schools, ships, flues, air ducts and environmental protection equipment in major power plants are indispensable fixed thermal insulation products

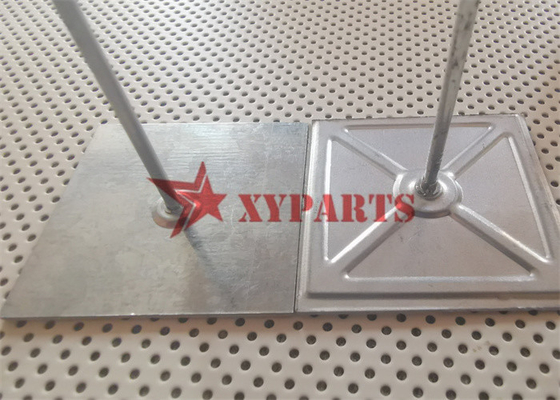

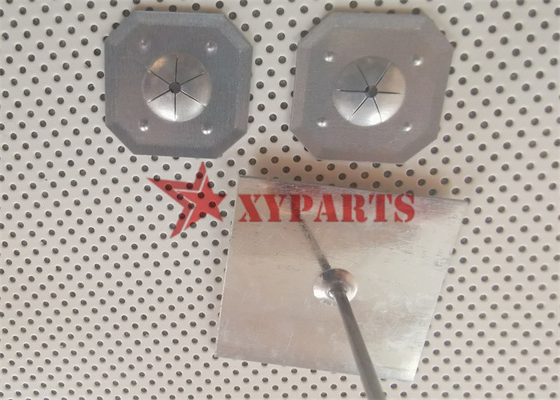

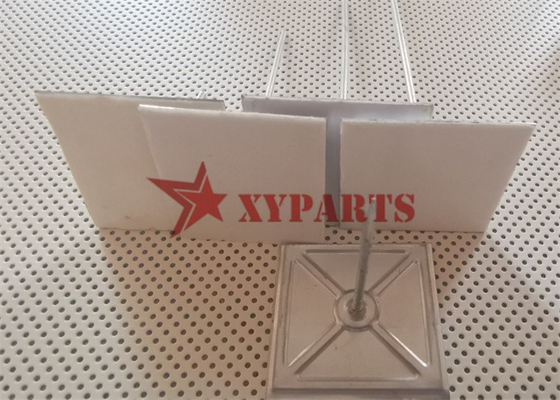

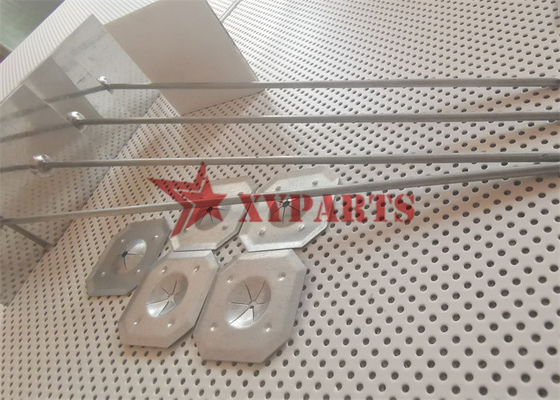

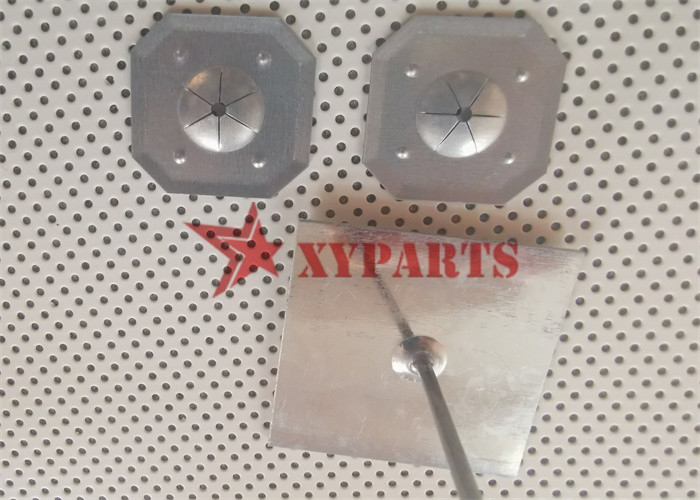

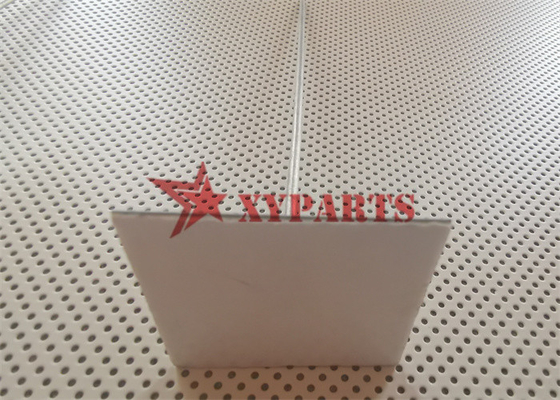

Images of the self adhesive insulation pins

2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers 02.7*63mm Self Adhesive Insulation Pins With Self Locking Washers 12.7*63mm Self Adhesive Insulation Pins With Self Locking Washers 2

*****************************************************************************************************************************HEBEI XIANGYI METAL PRODUCT CO.,LTD

HEBEI XIANGYI specializes in the production and operation of various standard and non-standard insulation fasteners. Our company established in 2011 and covers an area of more than 13,000 square meters, with a construction area of more than 9,000 square meters. We have more than 50 sets of fastener production equipment. hebei xiangyi has perfect testing equipment and supporting facilities for production, safety and environmental protection. We have passed the ISO 9001-2015 international quality system certification and have a strict product quality control system. HEBEI XIANGYI adheres to the mission of "With first-class management and technology to provide users with high-quality products. Serve our customers with advanced marketing concepts."

XIANGXI PRODUCTS: Perforated base insulation pins, self stick/adhesive insulation pins, CD weld studs /pins, lacing hangers,

and self locking washers/speed clips , dome cap washers. Drive pins and metal chain curtain mesh for decoration .
2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers 3

Why choose our HEBEI XIANGYI insulation fasteners?
1.We choose the best quality materials for making insulation fasteners
2.We do copper plating, zinc coated and phosphating pretreatment for the raw material using drawing machine.
3.We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard(BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
4.We use the automatic riveting machine to install .
5.After rust prevention, XIANGYI insulation fasteners can suitable for long time ship on the sea.
6.Short delivery time because of our reasonable production flow management

2.7*63mm Self Adhesive Insulation Pins With Self Locking Washers 4
