Product Details:
|
| Name: | Perforated Insulation Support Nails | Application: | Attached Wood Fiber Poured Gypsum Deck |
|---|---|---|---|
| Nail Length: | 15mm - 230mm In Standard | Base Size: | 35mm, 40mm, 50mm |
| Technical: | Perforated And Zinc Coated | Nail Diameter: | 12ga, 14ga Insandard |
| Sample: | To The Size Details | ODM / OEM: | Support |
| High Light: | OEM Perforated Base Insulation Hangers,14ga Perforated Base Insulation Hangers,Steel Perforated Insulation Support Nails |
||

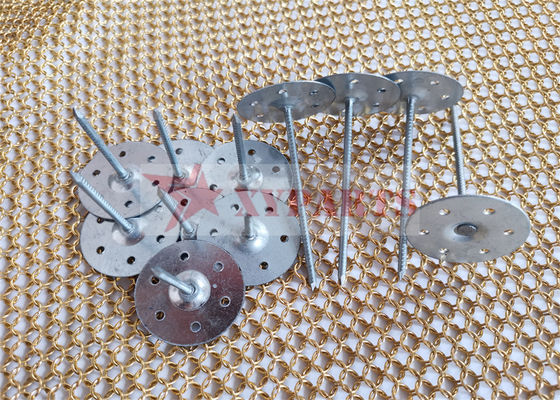

perforated insulation support nails are also named perforated base pins, perforated base insulation hangers and rock wool insulation pins. it is made of softly nails and hardness metal base. XIANGYI peforated base insulation support nails Include three types design currently. but we slao accept customized orders.
| modle | BASE TYPE | SUPPORT NAIL DIA | LENGTH OF NAILS |
| SQ-50-55 | 0.5MM X50MM | 2.7MM, 3MM | 55MM |
| SQ-50-63 | 0.5MM X50MM | 2.7MM, 3MM | 63MM |
| SQ-50-70 | 0.5MM X50MM | 2.7MM, 3MM | 70MM |
| SQ-50-90 | 0.5MM X50MM | 2.7MM, 3MM | 90MM |
| SQ-50-100 | 0.5MM X50MM | 2.7MM, 3MM | 100MM |
| SQ-50-110 | 0.5MM X50MM | 2.7MM, 3MM | 110MM |
| SQ-50-120 | 0.5MM X50MM | 2.7MM, 3MM | 120MM |
| SQ-50-130 | 0.5MM X50MM | 2.7MM, 3MM | 130MM |
| SQ-50-140 | 0.5MM X50MM | 2.7MM, 3MM | 140MM |
| SQ-50-160 | 0.5MM X50MM | 2.7MM, 3MM | 160MM |
| SQ-50-180 | 0.5MM X50MM | 2.7MM, 3MM | 180MM |
| SQ-50-203 | 0.5MM X50MM | 2.7MM, 3MM | 203MM |
| SQ-50-230 | 0.5MM X50MM | 2.7MM, 3MM | 230MM |
| SQ-50-250 | 0.5MM X50MM | 2.7MM, 3MM | 250MM |
| modle | BASE TYPE | SUPPORT NAIL DIA | LENGTH OF NAILS |
| SQ-40-15 | 0.4MM X40MM | 2.5MM, | 15MM |
| SQ-40-25 | 0.4MM X40MM | 2.5MM, | 25MM |
| SQ-40-35 | 0.4MM X40MM | 2.5MM, | 35MM |
| SQ-40-40 | 0.4MM X40MM | 2.5MM, | 40MM |
| SQ-40-45 | 0.4MM X40MM | 2.5MM, | 45MM |
| SQ-40-55 | 0.4MM X40MM | 2.5MM, | 55MM |
| SQ-40-63 | 0.4MM X40MM | 2.5MM, | 63MM |
| modle | BASE TYPE | SUPPORT NAIL DIA | LENGTH OF NAILS |
| R-40-38 | 0.5MM X50MM | 2.7MM, 3MM | 38MM |
| R-40-45 | 0.5MM X50MM | 2.7MM, 3MM | 45MM |
| R-40-50 | 0.5MM X50MM | 2.7MM, 3MM | 50MM |
| R-40-55 | 0.5MM X50MM | 2.7MM, 3MM | 55MM |
| R-40-63 | 0.5MM X50MM | 2.7MM, 3MM | 63MM |
| R-40-70 | 0.5MM X50MM | 2.7MM, 3MM | 70MM |
| R-40-90 | 0.5MM X50MM | 2.7MM, 3MM | 90MM |
| Material | Pin: Mild steel, Aluminum, Stainless steel |
| Base: High strength galvanized steel, Aluminum, Stainless steel | |
| Surface treatment | Polishing, Galvanzied plating |
| Product features | Firm conjunction between bases and pins |
| Pins are soft, easy bending over | |
| Porous base designed for permeating glue easily | |
| Length tolerance ±0.1mm |
An all metal fire resistant anchor that is both fast and easy to install.
Suitable for fixing all types of insulation to concrete, brick, stone or block base material.Insulation fastening solutions for concrete and masonry, suitable for insulation materials such as mineral wool, EPS, XPS and fibreglass.
