Product Details:
|
| Name: | Plastic Insulation Fixing Anchors | Type: | Wall Anchor |
|---|---|---|---|
| Length: | 20 - 250MM | Capacity: | Strong |
| Material Sources: | Nylon,plastic | Tools: | Shooting Gun |
| Washer Size: | 60mm Round Base | Manufcturer: | HEBEI XIANGYI |
| Highlight: | 60mm Plastic Insulation Fixing Anchors,OEM Plastic Insulation Fixing Anchors,rigid insulation plastic anchors |
||
|
Steel Nail Size |
length |
Color |
round base washer |
|
3.7*38mm |
20mm |
White / Black |
60mm |
|
3.7/42mm |
30mm |
White / Black |
60mm |
|
3.7/42mm |
40mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
50mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
60mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
70mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
80mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
90mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
100mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
110mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
120mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
130mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
140mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
150mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
160mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
180mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
200mm |
White / Black |
60mm |
|
3.7/4.0*52/54mm |
250mm |
White / Black |
60mm |
|

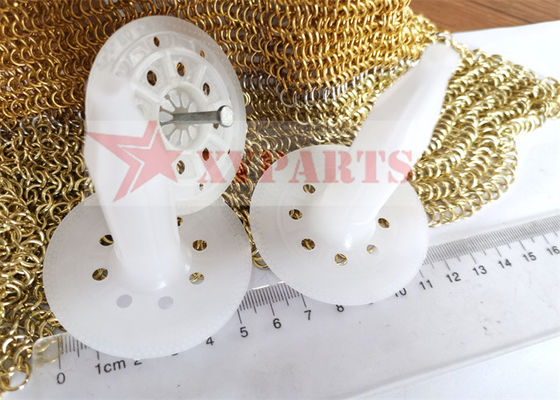

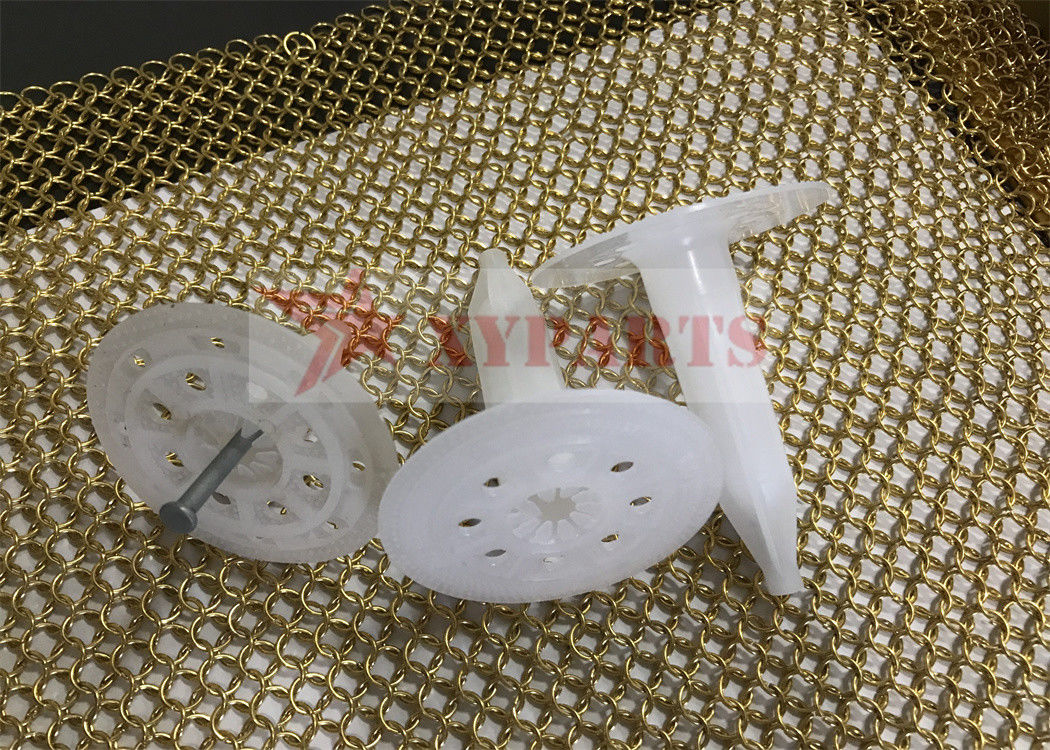

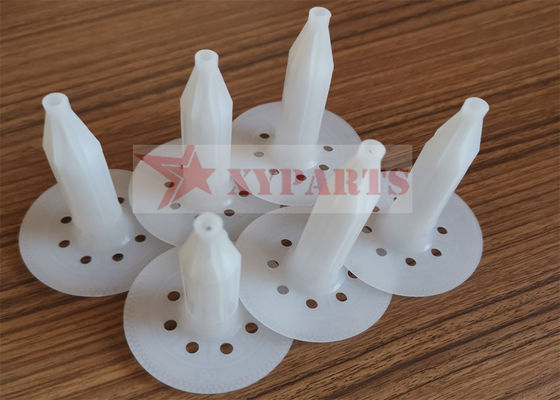

Plastic Insulation fixing Anchor With Steel Drive Pins, Construction Wall Heat Preservation Nail
|

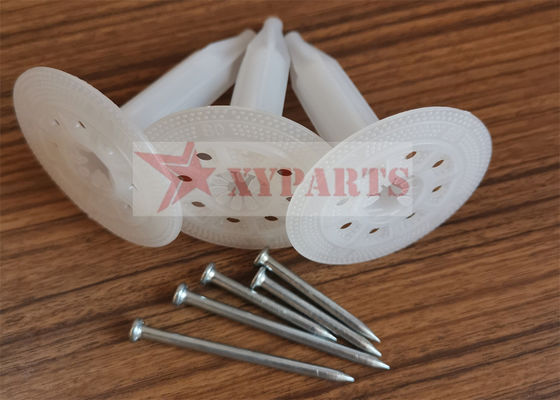

1. consists of insulation fastener and drive pin
2. insulation fixing anchors which is made of 100% original raw material has the characteristics of not combustion-supporting;it has the unique design of tooth shape that can efficoently isolate the drive pin and mortar;stop the heat bridge effect 3. adopting the patented step shank design can get the best value of drive pin's penetrability and reduce the destructiveness to the base material;we use high steel to manufacture the drive pins which ensure the nail body high strength, high tenacity and fastening much saferand more reliable |
|
general suitability in concrete
|
when a fastener is driven into concrete, the concrete around the anchor shank us displaced, this displaced concrete commpresses against the shank creating a friction gold. on addition, heat generated during the driving process, causes a sintering of the concrete to the fastener.
1.the fastening effect will be affected by the following factors 2.compressive strength of concrete 3.fastener shank diameter 4.concrete grade |
|
fastening features in steel
|
when plastic insulation fixing anchors is driven into steel, the steel around the fastener shank is displaced. the displaced steel flows back around the shank and into the knuring creating a keying or in the case of smooth shank fasteners a friction hold.in addition, the heat generated druing the driving process, at tempartatures of approximately 900 degree, causes partial fusion of the fastener to the steel.
a fastener driven into steel os influenced by the following factors: 1.base steel thickness 2.thesile strength of base steel 3.fastener spacing and edge distance 4. fastener shank diameter |
