Aluminum Flange Base CD Weld Rock Wool Insulation Pins With Self Locking Washer

Aluminum Flange Base CD Weld Rock Wool Insulation Pins With Self Locking Washer
Aluminum Flange Base CD Weld Rock Wool Insulation Pins With Self Locking Washer Aluminum Flange Base CD Weld Rock Wool Insulation Pins With Self Locking Washer Aluminum Flange Base CD Weld Rock Wool Insulation Pins With Self Locking Washer Aluminum Flange Base CD Weld Rock Wool Insulation Pins With Self Locking Washer

Large Image :  Aluminum Flange Base CD Weld Rock Wool Insulation Pins With Self Locking Washer

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: CD-PINS
Payment & Shipping Terms:
Minimum Order Quantity: 10000 PCS
Packaging Details: 500pcs Bimetallic Insulation Pins PER PE bag, 10 bags per carton
Delivery Time: 10 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 280000 PCS PER 30 DAYS

Aluminum Flange Base CD Weld Rock Wool Insulation Pins With Self Locking Washer

Description
Name: CD Weld Insulation Pin Base Type: Pin With Aluminum Flange
Pin Diameter: 2.7 Mm , M3 Pin Length: 38mm -260mm
Pin Material: Stainless Steel 304 / 316 Pin Type: CD Weld Nails
Technical: Stamped Factory Name: XIANGYI METAL PRODUCT
Sample: To Be The Size
High Light:

2.7mm Rock Wool Insulation Pins

,

ODM Rock Wool Insulation Pins

,

Rockwool CD pin



Aluminum Flange Base Rock Wool CD Weld Insulation Pin With Self Locking Washer




Technical data of CD Weld Insulation Pin



The size and material of the pins could be made according to the customer's requirements.

Material of the shaft

Material fo the head

Length of the head

Total length

Packing of the Bi-metallic pins

Stainless steel

Aluminum

15mm in common

35mm

400pcs/bag,10bags/carton

Stainless steel

Aluminum

15mm in common

45mm

350pcs/bag,10bags/carton

Stainless steel

Aluminum

15mm in common

55mm

300pcs/bag,10bags/carton

Stainless steel

Aluminum

15mm in common

65mm

250pcs/bag,10bags/carton

Stainless steel

Aluminum

15mm in common

80mm

200pcs/bag,10bags/carton

Stainless steel

Aluminum

15mm in common

95mm

150pcs/bag,10bags/carton



Features of CD Weld Insulation Pin

features of Aluminum Flange Base Rock Wool CD Weld Insulation Pin

BETTER PLATING

weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated.

REDUCED DOWN TIME

Consistent point quality reduces frequency of machine adjustments.

STRONGER WELDS

Hardened steel point assures positive electrical contact for complete sheet to pin fusion.

CORROSION RESISTANCE

Plating exceeds current SMACNA standards for corrosion resistance.

TEMPERATURE RANGE

CD Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.

VIBRATIONS

CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.

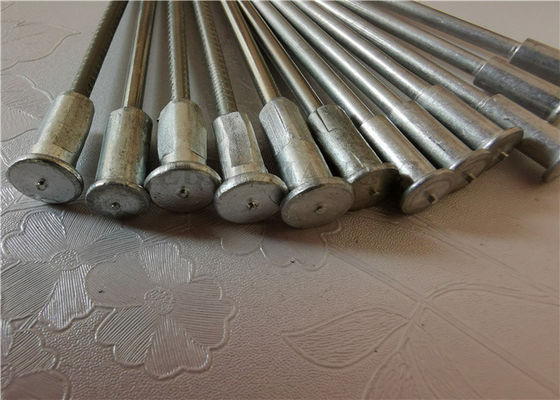

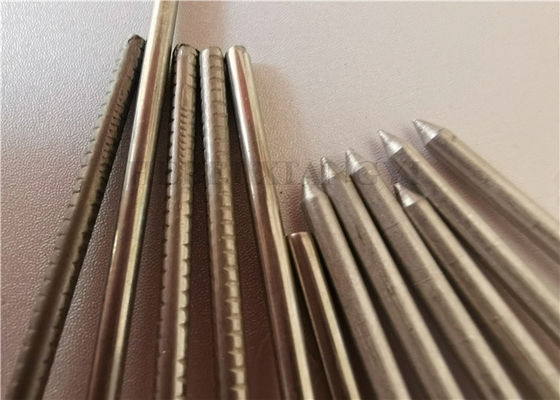

Images details of CD Weld Insulation Pin

Aluminum Flange Base CD Weld Rock Wool Insulation Pins With Self Locking Washer 0

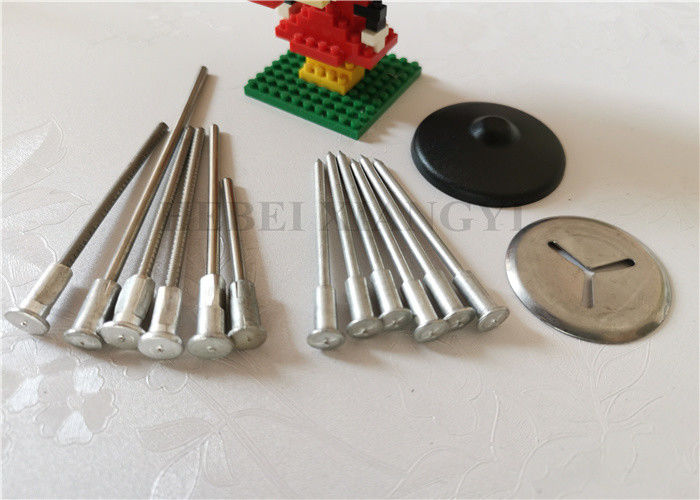

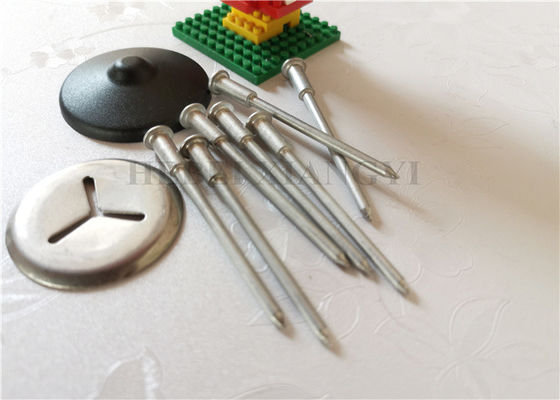

Fixing parts for CD Weld Insulation Pin- self locking washer and dome cap washer and speed clips

Aluminum Flange Base CD Weld Rock Wool Insulation Pins With Self Locking Washer 1 Aluminum Flange Base CD Weld Rock Wool Insulation Pins With Self Locking Washer 2

XIANGYI METAL PRODUCT CO.,LTD



Aluminum Flange Base CD Weld Rock Wool Insulation Pins With Self Locking Washer 3Aluminum Flange Base CD Weld Rock Wool Insulation Pins With Self Locking Washer 4
