Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: Perforated Base Pins
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Packaging Details: cartons package
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 400000 pcs per 28 days

OEM Stainless Steel Perforated Base Insulation Pins For Marine

Description
Name: Perforated Base Insulation Pins Head Type: Square And Round Base
Applications: Fixing Insulation Material For Marine Base Size: 2", 1-1.2" , 1"
Insulation Pin Length: 15 Mm - 280 Mm Factory Name: Xiangyi
Company Type: Manufacturer Parts: Dome Cap, Self Locking Washers
High Light:

OEM perforated base insulation pins

,

2in perforated base insulation pins

,

Perforated marine insulation pins



OEM Manufacturer Stainless Steel Perforated Base Insulation Pins Used For Marine




Specification details of perforated base insulation pins

Base

Material

Galvanized steel / Stainless steel

Dimensions

50 x 50 mm (2” x 2”) ,25X25mm(1”X1”)

Thickness

0,4 mm (28 ga.)

Perforation

44 holes, dia. 3.0 mm



Shank

Material

Mild steel(Galvanized or copper coating)

Stainless steel ,Aluminum

Diameter

2,7 mm (12 ga.)

Lengths

32 to 270 mm (1-1/4” to 10-5/8”)



Description details of perforated base insulation pins

Perforated Base Pins

Common specifications

Length: 1" to 10"

Diameter: 12GA , 14GA

Material

Pin: Mild steel, Aluminum, Stainless steel

Base: High strength galvanized steel, Aluminum, Stainless steel

Surface treatment

Polishing, Galvanzied plating

Product features

Firm conjunction between bases and pins

Pins are soft, easy bending over

Porous base designed for permeating glue easily

Length tolerance ±0.1mm

Production workmanship

Automated production

Packing

Packing can be customized as per requirements, current packing information

available upon request.

Supply capability

10000Pcs/hour

Application

Fixing various insulation blankets or boards

Remark

Technical parameters are available upon request

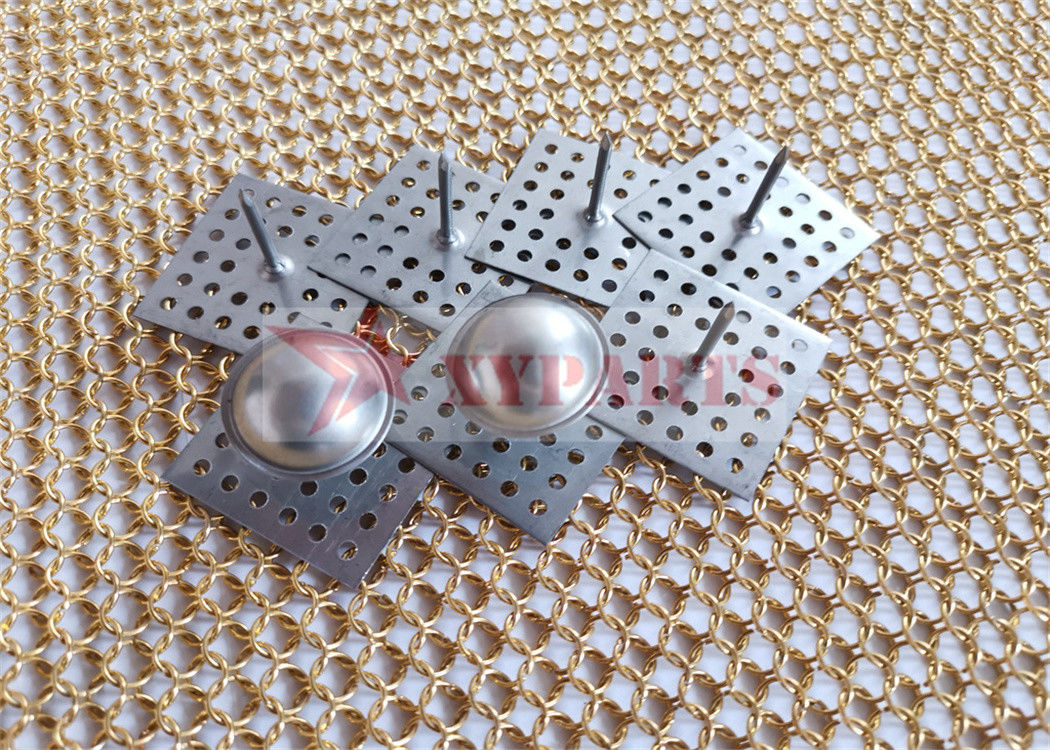

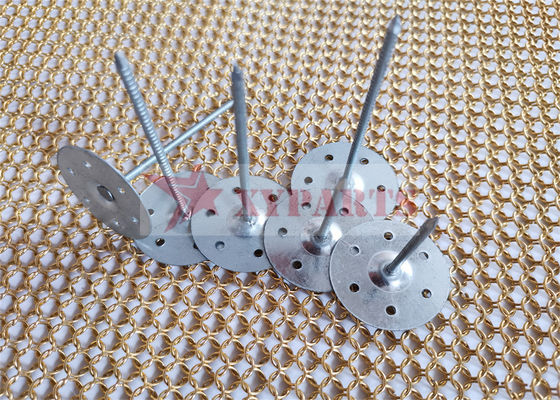

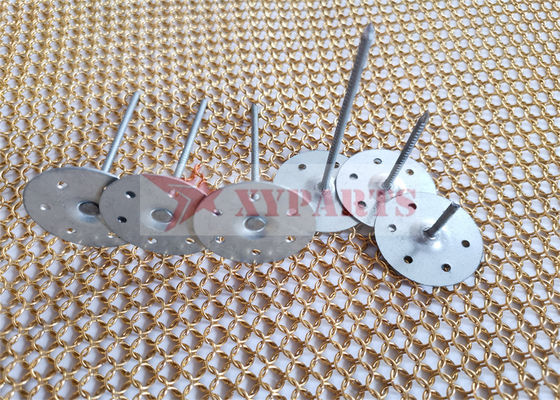

Images of perforated base insulation pins

OEM Stainless Steel Perforated Base Insulation Pins For Marine 0

OEM Stainless Steel Perforated Base Insulation Pins For Marine 1

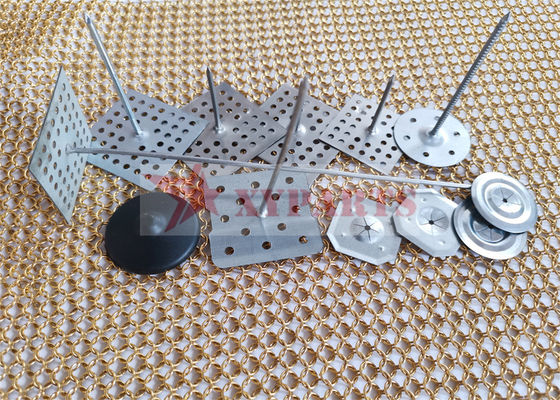

Fixed parts of insulation pins

speed Locking washer Material Galvanized spring steel/ Stainless steel
dome cap washers Diameter Round : 30mm , Square:1-1/8 X 1-1/4””
  Thickness 0.4 mm (28 ga.)
  Edges Bevelled



OEM Stainless Steel Perforated Base Insulation Pins For Marine 2


 Package details of the perforated base insulation pins

OEM Stainless Steel Perforated Base Insulation Pins For Marine 3
