Product Details:
|
| Production Name: | Perforated Base Insulation Hanger | Application: | FIXING FIBERGLASS WOOL |
|---|---|---|---|
| Hanger Length: | 15mm-280mm | Hanger Material: | MS , SS , AL |
| ODM/OEM: | Support | Company Type: | Factory |
| MOQ: | 10000 PCS | Factory Name: | Xiangyi Metal Products |
| High Light: | ODM Perforated Base Insulation Hangers,Steel Perforated Base Insulation Hangers,ISO fiberglass insulation fasteners |
||

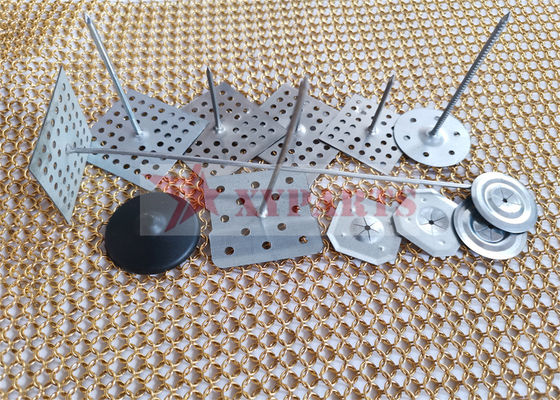

Perforated base insulation hangers are insulation pins used for attaching insulation to various base materials. The hangers are generally secured with an adhesive, but can also be attached with screws, powder actuated and gas actuated fasteners. After the hanger is in place, the insulation is
impaled on the hanger and secured with an insulation washer(speed clip)
|
Base |
Material |
Galvanized steel / Stainless steel |
|
Dimensions |
50 x 50 mm (2” x 2”) ,40 x 40 mm , 25X25mm(1”X1”) |
|
|
Thickness |
0,4 mm (28 ga.) |
|
|
Perforation |
44 holes, dia. 3.0 mm |
|
Shank |
Material |
Mild steel(Galvanized or copper coating) |
||
|
Stainless steel ,Aluminum |
||||
|
Diameter |
2,7 mm (12 ga.) |
|||
|
Lengths |
32 to 270 mm (1-1/4” to 10-5/8”) |
|||
|
self Locking washer |
Material |
Galvanized spring steel/ Stainless steel |
|
|
Diameter |
Round : 30mm , Square:1-1/8 X 1-1/4”” |
|
|
Thickness |
0.4 mm (28 ga.) |
|
|
Edges |
Bevelled |
