Product Details:
|
| Name: | Perforated Base Insulation Stick Hangers | Base Size: | 0.4 Mm ( 28 Ga ) X 40 Mm |
|---|---|---|---|
| Pin Material: | Anneaded Steel / Stainless Steel Wire | Pin Diameter: | 12 Ga ( 2.7 Mm ) 3mm |
| Base Type: | Perforated Round Base | Company Name: | XIANG YI |
| Company Type: | Factory, Trader | MOQ: | 10000 SETS |
| High Light: | perforated base insulation stick hangers,perforated base insulation stick pin,perforated base stick nail |
||

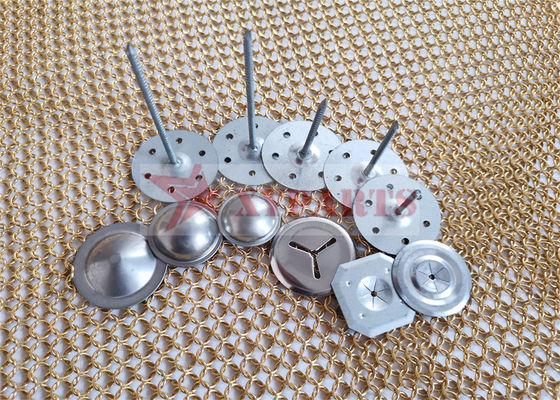

Perforated Base Insulation Stick hangers have the same function as self-adhesive insulating pins for fixing heavier insulating materials. After installing the insulation, you can use them or the dome cap and pin to wipe to fix the insulation. In addition, these workpieces have no adhesive tape on the base. There are small holes on the base, which are used to grab adhesives or allow screws to fix the base in place, which can help you achieve good results.
The round base perforated base insulation stick hangers are designed to fix efficiently insulation on concrete and any other rough surfaces. It consists of a pin, firmly mounted on a perforated base.Locking washers supplied in each box.
the nail length has various sizes for you to choose according to your own use needs. At the same time, unlike self-adhesive insulating pins, they can easily hold heavier parts in place, so they have better fixing performance.
|
Base |
Material |
Galvanized steel / Stainless steel |
|
Dimensions |
40mmx40mm |
|
|
Thickness |
0,4 mm (28 ga.) |
|
|
Perforation |
6 holes, dia. 3.0 mm |
|
|
Shank pins |
Material |
soft anneaded Mild steel(Galvanized or copper coating) |
|
Stainless steel ,Aluminum |
||
|
Diameter |
2,7 mm (12 ga.) |
|
|
Lengths |
32 to 270 mm (1-1/4” to 10-5/8”) |
| Product | Size | Packing Quantity | Box Size | Weight per box |
| Perforated Base Insulation Stick hangers | 50×50×32mm | 500Pcs Per box | 35×35×18CM | 5.44KG |
| perforated base insulation stick hangers | 50×50×38mm | 500Pcs per box | 35×35×20CM | 5.65KG |
| perforated base insulation stick hangers | 50×50×41mm | 500Pcs per box | 35×35×20CM | 5.7KG |
| perforated base insulation stick hangers | 50×50×65mm | 500Pcs per Box | 35×35×26CM | 6KG |
| perforated base insulation stick hangers | 50×50×114mm | 500Pcs per box | 35×35×35CM | 7.63KG |
|
Apply adequate adhesive to the underside of the hanger, or use rivets or screws. |
Position the hanger and press until the adhesive seeps through perforation. |
As soon as the strength of adherence is sufficient, impale the insulation on the hangers.Please consult your glue supplier to know about the drying time. |
Secure with CL locking washers. If necessary cover the point with a protective cap. |
