Product Details:
Place of Origin: CHINA
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: CUP HEAD-25-CD
Payment & Shipping Terms:
Minimum Order Quantity: 10000SETS
Packaging Details: PP BAGS+CARTON+PALLET/CASE
Delivery Time: 10 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7000000 SETS PER MONTH

Cap Head Insulation CD Safety Weld Pin Fastener

Description
Name: Insulation CD Safety Weld Pin Fastener Pin Diameter: 3.4mm
Common Pin Length: 19mm, 25mm, 38mm, 45mm, 50mm, 63mm Cup Head Base: 25mm
Company Type: Manufacturer Relate Tool: Automatic Pin Welder
Factory Name: Hebei Xiangyi Type: Weld Nails With Gun
High Light:

Insulation CD Safety Weld Pin Fastener

,

25mm cup head insulation pins

,

CD cup head insulation pins



Beveled Edge Cap Head Steel Insulation CD Safety Weld Pin Fastener For Oil Face




Destription of the beveled edge cap head cd weld pins



1.A fabricated part made up of a weld pin and a staked on retaining washer,it is usually applied with a capacitor discharge stud welder.
2. The method of application is to place the insulation onto a metal surface, push the Cup Head weld pin through the insulation, and weld affix (mount) the entire fabrication in one step. Now it is widely accepted as labor saving fasteners in the thermal and acoustical insulation markets for use in industrial and commercial applications.


Features of the 25mm Cup head CD weld pins

  • Beveled Edge Cap: Prevents tearing of duct liner
  • Faster Welds: Forged diamond point design creates more electrical resistance for faster
  • Better Plating:Zinc and Chromate plating exceeds SMACNA standards and gives a more professional appearance.
  • Reduced Down Time:Consistent point quality reduces frequency of machine adjustments.
  • Stronger Welds: Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
  • Applied with Standard Equipment: Easily applied with Automatic Pin Welder or most standard hand held or hopper fed resistance welders

Specification of the 25mm cup head CD weld pins


Photo CD CUP HEAD PINS
Cap Head Insulation CD Safety Weld Pin Fastener 0 Part No. pin diameter round base size pin Length
HH-10 3.4mm 1" 19mm, 25mm, 38mm,45mm,65mm,84mm,100mm, others to be your request

Installation introduction of the cup head cd weld pins with welders



recommended for thickness of the insulation pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1"insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2"insulation(1-1/2"-2" ib density) 37.95mm
2"insulation(3ib densities) 48.77mm
3"insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm



Cap Head Insulation CD Safety Weld Pin Fastener 1

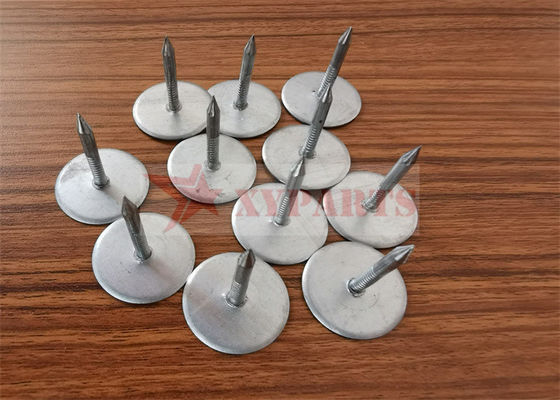

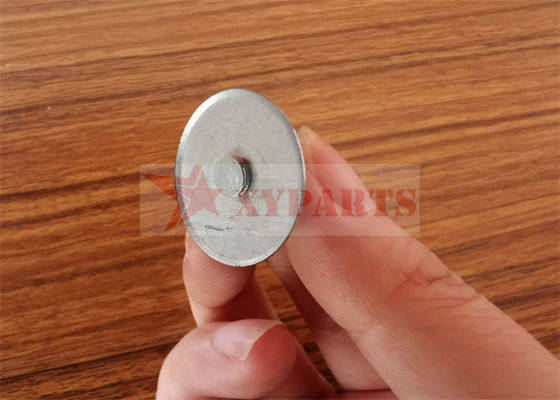

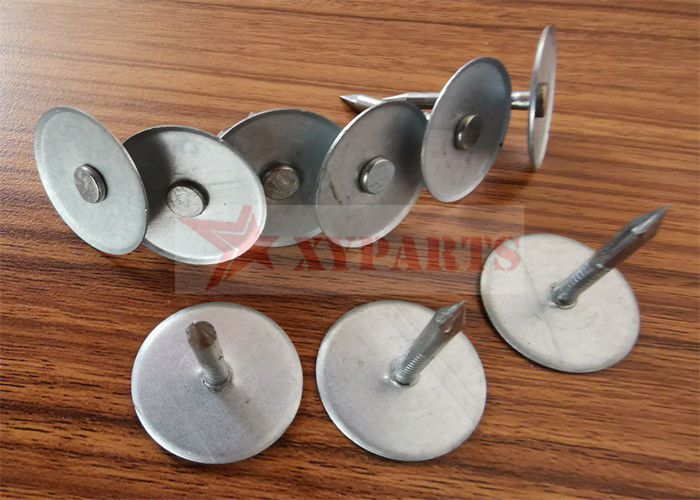

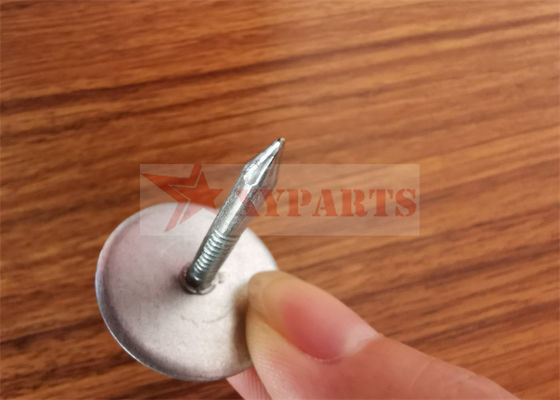

Images of the cup head CD weld pins



Cap Head Insulation CD Safety Weld Pin Fastener 2


application equipments of cup head CD weld pins

  • PowerPinner 7100 Light Duty, Hand Welder

  • PowerPinner 7200 Heavy Duty, Portable Hand Welder

  • PowerPinner 7005 Rapid Fire Fixed Head Welder

  • PowerPinner 7105 Rapid Fire Moving Head Welder

  • PowerPinner 50 Multi-head Welder

  • SAM Replacement Controller for Coil Line Pinners

Cap Head Insulation CD Safety Weld Pin Fastener 3
