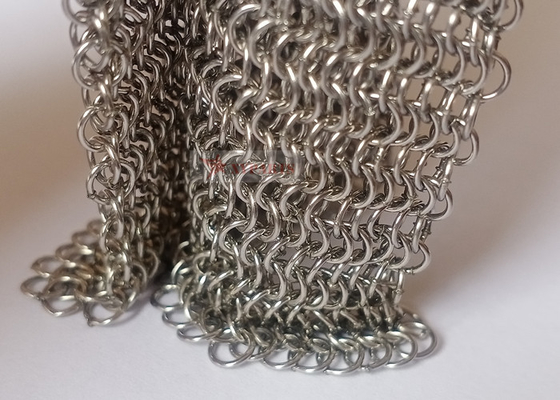

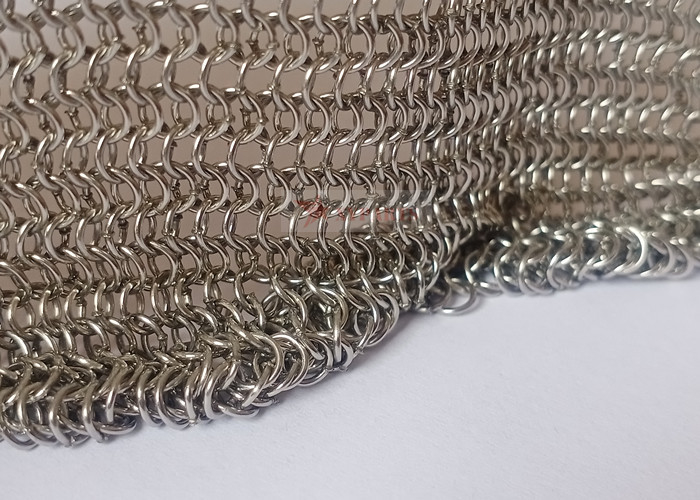

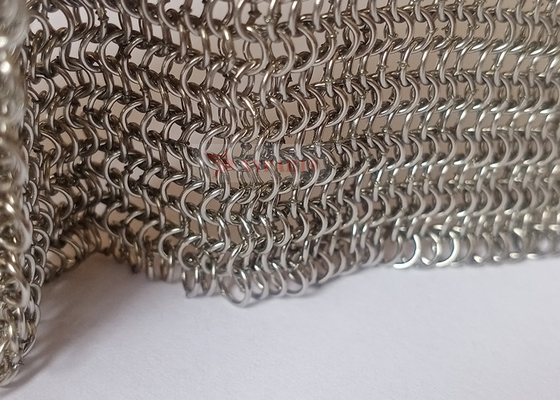

0.53x3.81mm Stainless Steel Chainmail Ring Mesh Used For Metal Mesh Curtains

Quick Details Of The 0.53x3.81mm Stainless Steel Chainmail Ring Mesh

0.53x3.81mm stainless steel chainmail ring mesh could be used as metal mesh curtains for

exterior and interior architecture decoration. Gold color and brass color and stainless steel

color are common colors, other colors also could be customized.

Customization services: size customization, color customization, installation system

customization

Type: welded type

Common size: 0.53x3.81mm, 0.8x7mm,

Common colors: gold or brass or stainless steel

Installation system: hanging type and frame design are most popular in china.

Application: the metal ring mesh is widely used in the decoration of hotels, museums, stair

handrails, concert halls, office buildings, exhibition halls, shopping malls, upscale resorts etc.

Factory: Hebei Xiangyi Metal Product Limited Name: 0.53x3.81mm Stainless Steel Chainmail Ring Mesh  Application: used in exterior or interior space decoration Type: welded type Material: stainless steel Wire Diameter: 0.53mm Ring Diameter: 3.81mm Color: stainless steel color Technical: polish Samples: supported Small Order: supported Features: 1. as soft as a cloth 2. strong with each ring welded 3. glorious 4. anti-corrosion 5. easy-maintenance 6. high temperature resistance 7. colorfast 8. the unique metallic gloss presents rich visual effects in different light, different environments, different time periods, and different viewing angles

Specifications Of The Chainmail Metal Ring Mesh

Term	Type	Material	Wire diameter	Outer diameter	Weight/m2
XY-SS-053	Weld	stainless steel	0.53mm	3.81mm	3.2kgs
XY-SS-080	Weld	stainless steel	0.80mm	7.00mm	2.8kgs
XY-SS-150	Weld	stainless steel	1.50mm	15.00mm	4.8kgs
XY-CS-150	Weld	Copper/brass	1.50mm	15.00mm	5.5kgs
XY-SS-200	Weld	stainless steel	2.0mm	20.00mm	6.8kgs
XY-CS-200	Weld	Copper/brass	2.0mm	20.00mm	7.8kgs
XY-SS-100	Non-Weld	Stainless steel	1.0mm	8.00mm	4.7kgs
XY-MS-100	Non-Weld	Mild steel	1.0mm	8.00mm	4.6kgs
XY-SS-120	Non-Weld	Stainless steel	1.2mm	10mm	4.8kgs
XY-CS-120	Non-Weld	Mild steel	1.2mm	10mm	5.5kgs
XY-SS-150	Non-Weld	Stainless steel	1.5mm	15mm	4.8kgs
XY-CO-150	Non-Weld	Mild steel	1.5mm	15mm	5.5kgs
XY-SS-200	Non-Weld	Stainless steel	2.0mm	20mm	6.8kgs
XY-CO-200	Non-Weld	Mild steel	2.0mm	20mm	7.8kgs

Installation Of The Chainmail Metal Ring Mesh

	1. The stainless steel chainmail ring mesh installed with curved tracks makes the visual effect more pleasant through the harmonious and orderly curved or straight geometric patterns. It is widely used for exterior architectural design.
	2. The stainless steel chainmail ring mesh also could be installed with curved rods. The reflection of the light through the chain mail mesh, forms a continuous overall space. It's widely used in the decoration of hotels, museums, discos, stair handrails, concert halls, office buildings, exhibition halls, shopping malls, upscale resorts etc.
	3. The stainless steel chainmail ring mesh  installed with folding mechanism could make the ring mesh stretched left and right like a curtain, it's often used as sunshading, wall decoration, screens, and shop windows.

Applications Of The Stainless Steel Chainmail Ring Mesh

FAQ Of Xiangyi Parts

1. Are you manufacture or trader?

We are the manufacture and we sell what we make.

2. Do you support product customization?

Yes, the material, the size, the installation system , the color all could be customizied according to

your request.

3. Can you accept small order?

Yes, for common size, we could accept small orders.

4. Can i get samples?

Yes, for common size, samples for quality confirm is supported in our company.

5. Can you supply the installation accessories?

Yes, we could supply appropriate installation accessories, according to the weight of the panel.

6. What is your advantages for the metal ring mesh curtain?

Competitive price: we sale what we manufacture.

Excellent quality: we have rich experience for the ring mesh curtain, our products are in line with

international standard.

​Good after-sale service: we offer good after-sale service for each order.

Our chainmail ring mesh curtains are consist in price, quality and delivery service.
