Stainless Steel Solar Panel Fastener Clips Used To Secure Bird Proofing Wire Mesh

Specification Of The Solar Panel Fastener Clips

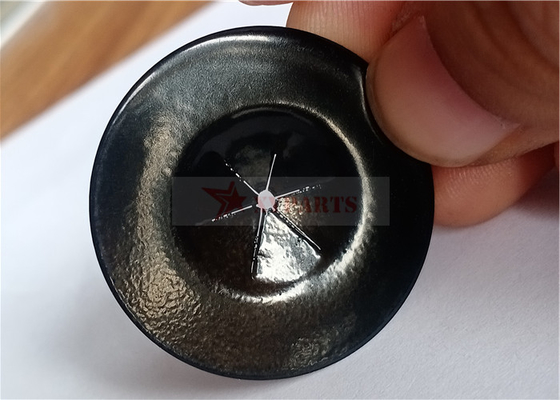

Solar panel fastener clips are made of two parts: J hook part and self locking washer part.
Material	A (overall length)		B (diameter)		C (width)		D (height)		E (washer diameter)
Stainless steel	in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
	4.87	124	0.08	2.0	0.38	9.7	0.38	9.7	1.0	25.4

Images Of The Solar Panel Fastener Clips Used To Secure Bird Proofing Wire Mesh

Applications Of Solar Panel Fastener Clips Used To Secure Bird Proofing Wire Mesh

1) Features and Benefits

>Clips will not scratch, pierce or impact integrity of solar panels.
>Clips are used to secure the mesh to solar panels which creates a physical barrier to keep birds from

accessing and nesting in the area beneath the solar arrays

2) Calculating the Number of Solar Clips Needed

The number of clips needed will depend on the solar panel system. A standard 3kW system (2 rows of 6

panels each - 12 panels total installed in a portrait orientation) requires 35 clips. When calculating the

necessary number of clips need for a solar array:

Space clips no more than 1.5 feet apart
Use 2 clips for the short side of every exposed edge of a panel
Use 3 clips for the long side of every exposed edge of a panel
Clips are available in packs of 35, 50 and 100

Package Of The Solar Panel Fastener Clips

J hook standard package	1. 100 pcs per pp bag, 80 bags per carton 2. 500pcs per pp bag, 16bags per carton 3.1000pcs per pp bag, 8 bags per carton
self locking washer	1. 100 pcs per pp bag, 60 bags per carton 2. 500pcs per pp bag, 12bags per carton 3.1000pcs per pp bag, 6 bags per carton
