Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: stick-50-s
Payment & Shipping Terms:
Minimum Order Quantity: 10000 sets, include self stick pins and self locking washers
Packaging Details: 500 sets per carton, 48 cartons per wooden pallet
Delivery Time: 8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,by alibaba
Supply Ability: 10000 pcs oer hour

HVAC System Parts Fasteners Softly Steel Self Stick Pins

Description
Name: Steel Self Stick Pins XIANGYI: Manufacturer
Feature: Softly, Firmly Pin Diameter: 2.7mm, 3mm
Pin Material: Anneaded Steel Wire And Aluminum Wire Pin Length: 38mm-230mm In Standard
Base Type: Double Adhesive Sides 50mm Square Base Base Thickness: 1mm
High Light:

HVAC System Self Stick Pins

,

Steel Self Stick Pins

,

3mm stick pin for insulation



HVAC System Parts Fasteners Softly Steel Self Stick Pins With Self Locking Washers




Quick details of the steel self stick pins

  • self stick pins also named self adhesive pins, rock wool insulation pins, insulation hangers and insulation support nails
  • popular materials of self adhesive insulation pins: mild steel, stainless steel and aluminum
  • pin material: anneaded mild steel wire, anneaded stainless steel wire and aluminum wire, the diameter is 2.7mm and 3mm in standard.
  • base material: we must choose high hardness steel plate or stainless steel plate. the thickness is 0.4mm - 0.6mm in standard
  • tape details of self stick pins: White, cross-linked, closed-cell polyethylene foam; Modified acrylate adhesive on both sides

Technical data of the softly steel self stick pins

parts no. material Base size Pin diameter pin length fixed parts
XY-50-38

pin material:

  • anneaded steel wire
  • anneaded stainless steel wire
  • aluminum wire

base material:

  • hardness steel or stainless steel

base size:

  • 50x50mm

base thickness:

  • 1mm

base type:

  • double adhesive

liner:

  • Siliconized paper
2.7mm 38mm

self locking washer

doem cap washer

XY-50-45 2.7mm 45mm
XY-50-55 2.7mm 55mm
XY-50-62 2.7mm 62mm
XY-50-90 2.7mm 90mm
XY-50-114 2.7mm,3.0mm 114mm
XY-50-120 2.7mm,3.0mm 120mm
XY-50-140 2.7mm,3.0mm 140mm
XY-50-160 2.7mm,3.0mm 160mm
XY-50-180 2.7mm,3.0mm 180mm
XY-50-203 2.7mm,3.0mm 203mm
XY-50-230 2.7mm,3.0mm 230mm

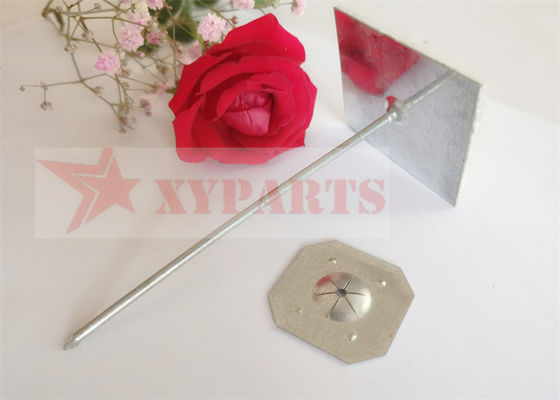

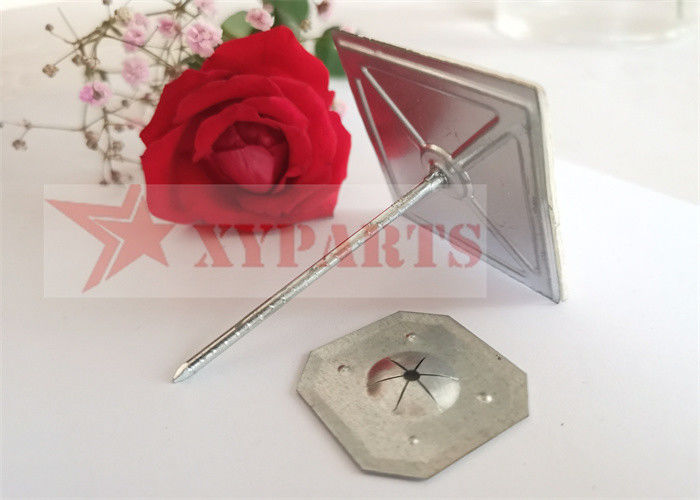

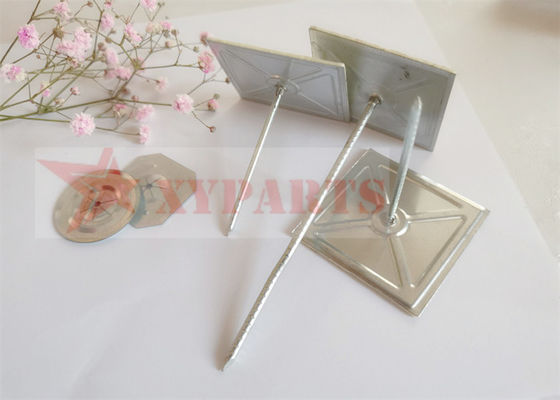

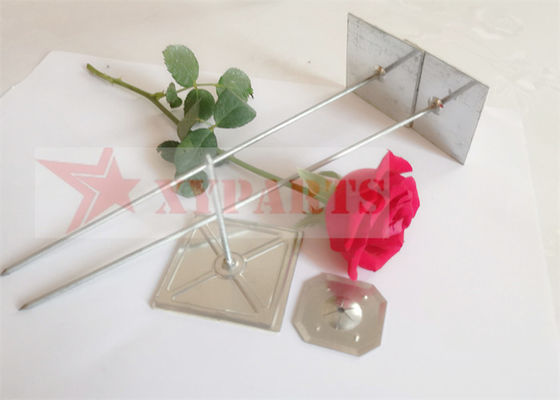

Image details of the self stick pins

HVAC System Parts Fasteners Softly Steel Self Stick Pins 0



Related products from hebei xiangyi

Heibei Xiangyi Metal Manufacturing Limited is a professional manufacturer of all kinds of insulation pins.
Our production includes a full line of insulation fasteners:

  • Insulation fixing pins,
  • Self adhesive insulation pins,
  • Insulation hangers,Insulation anchors,
  • Lacing anchor,Lacing ring
  • Cup head weld pins,
  • Perforated base pins,
  • Quilting pins&Duct liner pins,
  • CD weld pins,
  • Self locking washers & dome caps
  • Insulation Impaling Clips,
  • drive pins

HVAC System Parts Fasteners Softly Steel Self Stick Pins 1


HEBEI XIANGYI METAL PRODUCT CO.,LTD

HVAC System Parts Fasteners Softly Steel Self Stick Pins 2

How is Supplier's Responsiveness to Customer Service Inquiries?
timely and accurate,and The sales department and production department perfect record work at the same time
Does Supplier Have a Published Phone List For Obtaining Customer Service After Hours?
yes , 24hours-hotline 0086-13363891298(whatsapp) or email admin2huihaomesh.com,
how to ensure the quality?
our factory meet ISO9001-2008 system certification, and we will supply offical material test report and product test report by SGS/BV
How to ensure the delivery in time?

  • firstly we have stock for common sizes.
  • second, we have mould making-term,help sepcial order to save time for making mould.
  • third, we own Advanced production equipment and experienced workers.
  • four, Long-term cooperation with courier companies and sea and air freight forwarders

do you accept small order?
yes, we accept small order, for insulation pins, retail order is avable MOQ3000pcs. if need open new mould , MOQ is 20000pcs.
for weave wire mesh, MOQ30square meters
