Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: PER-50-s
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Packaging Details: 500 PCS per carton
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pcs oer hour

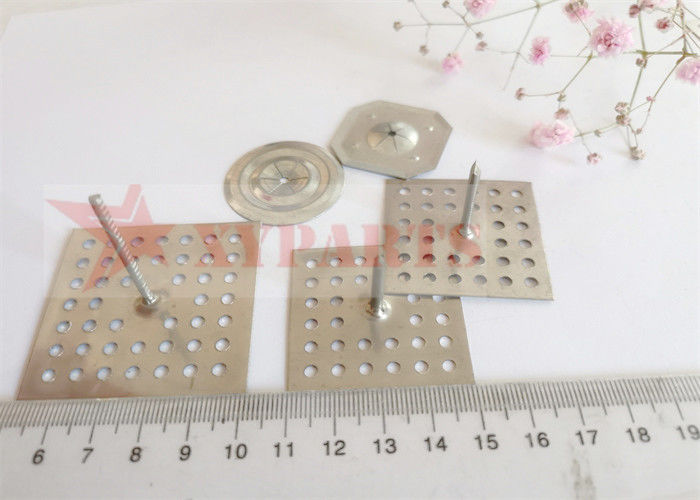

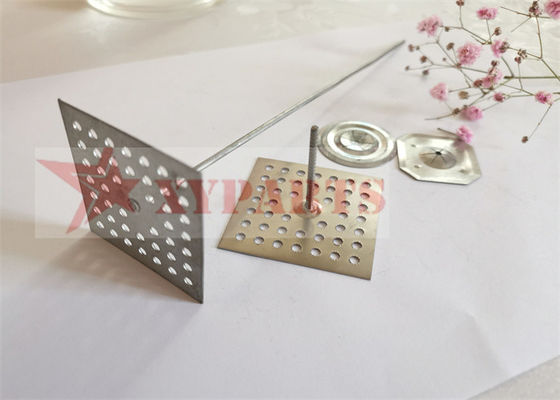

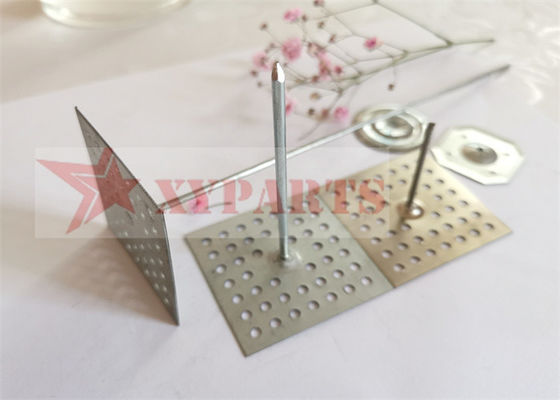

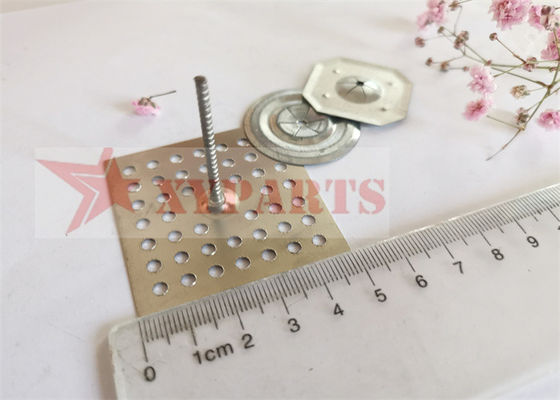

Noise Insulation Perforated Insulation Hangers

Description
Name: Perforated Insulation Hangers Application: With Speed Clips Fixing Rock Wool On Wall
Base Size: 50mmx50mm Pin Length: 38mm-230mm In Standard
Pin Dia: 2.7mm, 3mm In Standard Fixed Parts: Speed Clips, Self Locking Washer, Dome Cap
Sample: Free For Size In Stock Custom: Odm/oem
High Light:

50mmx50mm perforated insulation hangers

,

metal perforated insulation hangers

,

ODM perforated base insulation pins



Noise Insulation Metal Perforated Insulation Hangers Attachment In Marine Engine




Description details of noise insulation metal perforated insulation hangers

The metal base is available with a ready-to-use a perforated base to be bonded with suitable adhesive. A self-locking washer (clip or dome) is applied over the protruding spindle to retain the insulation.

we can customize their own crown as per specifications. For their special needs, they can check out the specialized bigheads or send a rough sketch of their design.

Material of perforated insulation hangers:

  • Galvanised mild steel (PIN PERF.MS)
  • Stainless steel (PIN PERF.SS)
  • Aluminium (PIN PERF.AL)

Features of perforated insulation hangers:

  • anneaded finished for steel wire and stainless steel wire to make the softly hanger pins.
  • hardness metal sheet is used for base of the perforated insulation hangers
  • suitable material make sure the locked is firmly.

Specification details of perforated insulation hangers



TYPE1-50MM Square type peforated insulation hangers



modle BASE TYPE SUPPORT NAIL DIA LENGTH OF NAILS
SQ-50-55 0.5MM X50MM 2.7MM, 3MM 55MM
SQ-50-63 0.5MM X50MM 2.7MM, 3MM 63MM
SQ-50-70 0.5MM X50MM 2.7MM, 3MM 70MM
SQ-50-90 0.5MM X50MM 2.7MM, 3MM 90MM
SQ-50-100 0.5MM X50MM 2.7MM, 3MM 100MM
SQ-50-110 0.5MM X50MM 2.7MM, 3MM 110MM
SQ-50-120 0.5MM X50MM 2.7MM, 3MM 120MM
SQ-50-130 0.5MM X50MM 2.7MM, 3MM 130MM
SQ-50-140 0.5MM X50MM 2.7MM, 3MM 140MM
SQ-50-160 0.5MM X50MM 2.7MM, 3MM 160MM
SQ-50-180 0.5MM X50MM 2.7MM, 3MM 180MM
SQ-50-203 0.5MM X50MM 2.7MM, 3MM 203MM
SQ-50-230 0.5MM X50MM 2.7MM, 3MM 230MM
SQ-50-250 0.5MM X50MM 2.7MM, 3MM 250MM



TYPE2-40MM Square type perforated base insulation hangers



modle BASE TYPE SUPPORT NAIL DIA LENGTH OF NAILS
SQ-40-15 0.4MM X40MM 2.5MM, 15MM
SQ-40-25 0.4MM X40MM 2.5MM, 25MM
SQ-40-35 0.4MM X40MM 2.5MM, 35MM
SQ-40-40 0.4MM X40MM 2.5MM, 40MM
SQ-40-45 0.4MM X40MM 2.5MM, 45MM
SQ-40-55 0.4MM X40MM 2.5MM, 55MM
SQ-40-63 0.4MM X40MM 2.5MM, 63MM

Related product of metal perforated insulation hangers

Noise Insulation Perforated Insulation Hangers 0

  • Self adhesive insulation pins
  • Insulation hangers
  • Insulation anchors
  • Lacing anchor Lacing ring
  • Cup head weld pins
  • Perforated base pins
  • Quilting pins & Duct liner pins
  • CD weld pins
  • Self locking washers & dome caps
  • Insulation Impaling Clips
  • drive pins

Insulation pins and self locking speed clip is most popular in international market. We have owned a lot of customers from Europe, Australia, Middle East, Southeast Asia and North America.

  • One-to-one order service
  • Door to door logistics service
  • Cartographic confirmation service
  • Processing customization service
  • Packaging design service
  • Document making service
  • Inspection and inspection service



Test services for metal perforated insulation hangers

Noise Insulation Perforated Insulation Hangers 1

common inspection facilities

  • micrometers
  • vernier caliper
  • thread plug
  • thread ring gauge

common inspection measurements

  • exterior inspection:surface finish judgement
  • size inspection:within common difference
  • thread inspection:mainlander the precision of the thread,inspected by Go/No gogage

physico-chemical inspection facilities

  • salt-fog test machine
  • rally machine
  • hardness machine
  • spectrum analyzer
  • toolmaker microscope
  • altimeter
  • projector
  • stud welder

physico-chemical inspection measurements

  • decay preservation inspection:mainly under the test of salt-fog experiments to inspect the surface finish and the reservation from decay
  • intensity inspection
  • material inspection
  • thread inspection
  • hardness inspection
  • welding inspection
