250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers

I'm Online Chat Now

250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers

250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers
250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers
250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers 250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers 250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers 250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers 250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers

Large Image :  250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers

Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: self stick pins
Payment & Shipping Terms:
Minimum Order Quantity: 10000 insulation hanger with 10000 self locking washer
Packaging Details: Inner Plastic Bag+ Outer Carton in standard for self adhesive insulation hangers
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 380000 sets per 30 days

250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers

Description
Name: Self Adhesive Insulation Hangers Application: Fixing Rock Wool Insulation Materials
Pin Feature: Softly Wire And Easy Bending Base Type: 50 Mm Square Double Tape
Hanger Length: 38mm -230mm In Standard Hanger Diameter: 2.7mm , 3mm
Factory Name: Xiangyi Parts Surface Treatment: Zinc Finished For Hangers
High Light:

250mm self adhesive insulation hangers

,

ISO self adhesive insulation hangers

,

Rock Wool self adhesive pins



Rock Wool Galvanized Steel Self Adhesive Insulation Hangers




Specification details of Rock Wool Galvanized Steel Self Adhesive Insulation Hangers

hanger diameterbase plate sizeinsulation hangers length
12ga ( 0.106 " )2 " square1 "
12ga ( 0.106 " )2 " square1 - 5 / 8"
12ga ( 0.106 " )2 " square2 "
12ga ( 0.106 " )2 " square2 - 1 / 2"
12ga ( 0.106 " )2 " square3 - 1 / 2"
12ga ( 0.106 " )2 " square4 - 1 / 2"
12ga ( 0.106 " )2 " square5 - 1 / 2"
12ga ( 0.106 " )2 " square6 - 1 / 2"
12ga ( 0.106 " )2 " square8 "
12ga ( 0.106 " )2 " square8 - 1 / 2"
12ga ( 0.106 " )2 " square9 - 1 / 2"
12ga ( 0.106 " )2 " square10 - 1 / 2"
12ga ( 0.106 " )2 " square12 "



Noted for galvanized steel self adhesive insulation hangers

  • for the pin diameter, we choosed galvanbized anneaded steel wire and aluminum wire for making pins.stainless steel softly wire for custom orders
  • for the pin length, the length can be meet 300mm.

How to install galvanized steel self adhesive insulation hangers?
The user is responsible for determining the suitability of the application. self adhesive insulation hangers must be applied to a clean, dry, non-porous surface thatis free of all oil, films, dust, rust, etc. Self-adhering insulation hangers are not recommended for concrete or painted surfaces. It is important that they not are used where operating temperatures can exceed 150° F at the point of adhesion. self adhesive insulation hangers should not be used on ceilings or roofs ofmetal buildings or any surface the reverse side of which may be exposed to heat concentration from sunlight, etc., direct or otherwise. Load per anchor should not exceed 3 lbs.



performance tape of Galvanized Steel Self Adhesive Insulation Hangers

  • Polyethylene foam with aggresive pressure sensitive rubber resin adhesive.
  • Service Temperature : -40 deg C to +70 Deg C
  • Highly Resistant to abrasion, corrosion and moisture.
  • Confirms to European Directive 2000/53 (Lead, Chromium VI, Mercury, Cadmium free)
  • 10 Minutes 180 degree Peel Adhesion : 30 N/25mm
  • 500 Hour static shear ( Stainless Steel) : 0.8 kg/cm3
Technical parameter

Foam density: 182kg/m³
Liner release value: 10 N/m
Peel Adhesion (23℃): 20 N/25mm
Application Temperature: 10℃ - Advisory
Static Shear: >1000 Hrs (PSTC)
Service Temperature (Minimum): -35℃
Service Temperature (Maximum): +90℃
Tensile Strength: (L) 113 N/cm² (CNS10487)(C) 85 N/cm²
Elongation: (L)170% (CNS 10487)(C) 150%
Shelf Life: 2 years (20℃ 65%RH)

Applications of Rock Wool Galvanized Steel Self Adhesive Insulation Hangers
square base insulation stick pins that is both fast and easy to install.
Suitable for fixing all types of insulation to concrete, brick, stone or block base material.Insulation fastening solutions for concrete and masonry, suitable for insulation materials such as mineral wool, EPS, XPS and fibreglass.

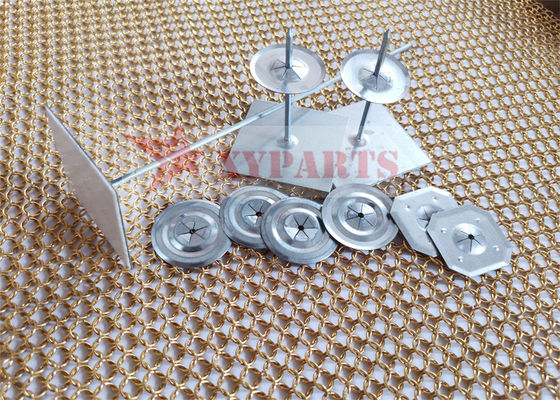

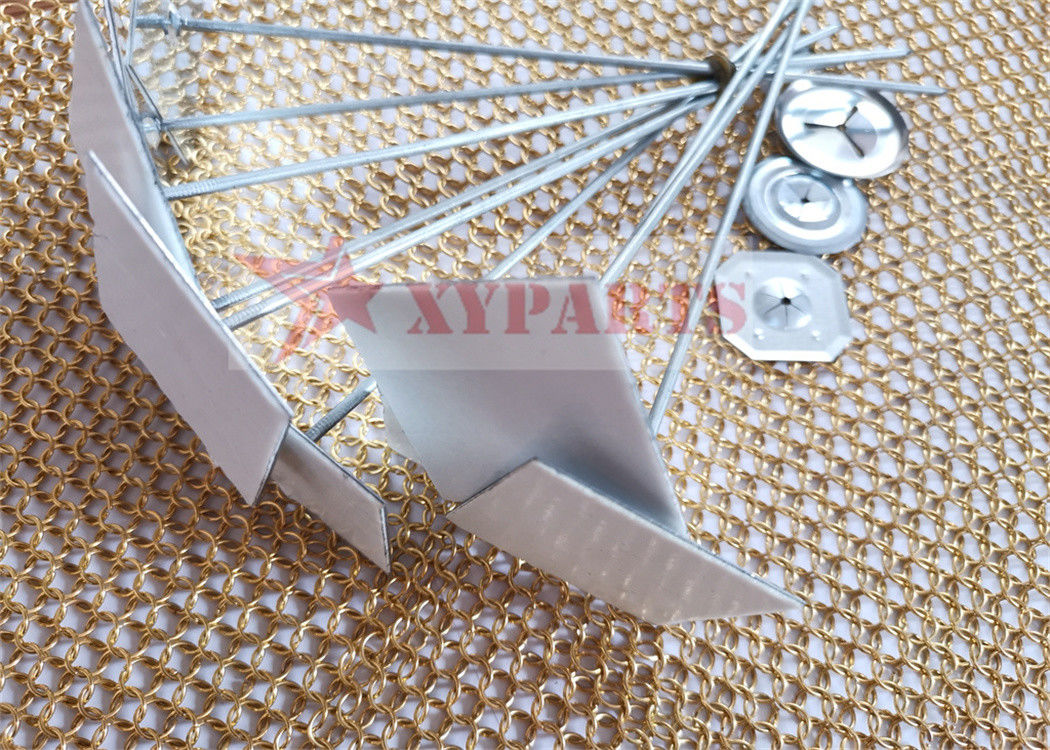

Images of Galvanized Steel Self Adhesive Insulation Hangers

250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers 0

Advantages of the Self Adhesive Insulation hangers

1. Environmentally-friendly
2. Light, dust free, fire retardant and easy to install
3. Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration and shielding
4. During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning
5. During Winter: heat protection, remarkable energy saving consumed by warm air conditioning
