High Hardness Steel Square Base Insulation Stick Up Pin

I'm Online Chat Now

High Hardness Steel Square Base Insulation Stick Up Pin

High Hardness Steel Square Base Insulation Stick Up Pin
High Hardness Steel Square Base Insulation Stick Up Pin High Hardness Steel Square Base Insulation Stick Up Pin High Hardness Steel Square Base Insulation Stick Up Pin High Hardness Steel Square Base Insulation Stick Up Pin

Large Image :  High Hardness Steel Square Base Insulation Stick Up Pin

Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: self stick pins
Payment & Shipping Terms:
Minimum Order Quantity: 10000 self stick pins with 10000 self locking washer
Packaging Details: Inner Plastic Bag+ Outer Carton in standard for self adhesive pins
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 380000 sets per 30 days

High Hardness Steel Square Base Insulation Stick Up Pin

Description
Name: Insulation Stick Up Pin Application: Fiberglass Wool Batt
Pin Feature: Softly Wire And Easy Bending Base Type: 50 Mm Square Double Tape
Pin Length: 38mm -230mm In Standard Sample: Free Or To Be The Size
Services: ODM / OEM Factory Name: Xiangyi Parts
High Light:

Steel Insulation Stick Up Pin

,

Fiberglass Wool batt insulation stick pins

,

High Hardness stick pin insulation



Fiberglass Wool Batt High Hardness Steel Square Base Insulation Stick Up Pin




Specification details of Sqaure Base Insulation Stick Up Pin

modle term  High hardness steel base  pin diameter  pin length
HH038 50mm  12 ga, 3mm 38mm
HH045 50mm 12 ga, 3mm 45mm
HH063 50mm 12 ga, 3mm 63mm
HH090 50mm 12 ga, 3mm 90mm
HH100 50mm 12 ga, 3mm 100mm
HH110 50mm 12 ga, 3mm 110mm
HH130 50mm 12 ga, 3mm 130mm
HH140 50mm 12 ga, 3mm 140mm
HH160 50mm 12 ga, 3mm 160mm
HH180 50mm 12 ga, 3mm 180mm
HH203 50mm 12 ga, 3mm 203mm
HH230 50mm 12 ga, 3mm 230mm

Noted for Sqaure Base Insulation Stick Up Pin

  • for the pin diameter, we choosed galvanbized anneaded steel wire and aluminum wire for making pins.stainless steel softly wire for custom orders
  • for the pin length, the length can be meet 300mm.



Technical data of Sqaure Base Insulation Stick Up Pin

Adhesive
Base
White, cross-linked, closed-cell polyethylene foam

Coating
Modified acrylate adhesive on both sides

Liner
Siliconized paper

Thickness
1 mm



Power (FINAT-TM 1, on stainless steel, one side covered with 50 microns polyester film)
1 minute
>18 N/25 mm
20 minutes
tear
24 hours
tear



Applications of Sqaure Base Insulation Stick Up Pin

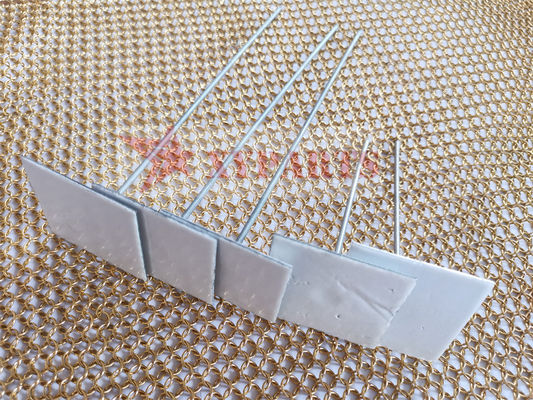

High Hardness Steel Square Base Insulation Stick Up Pin 0

square base insulation stick up pins that is both fast and easy to install.
Suitable for fixing all types of insulation to concrete, brick, stone or block base material.Insulation fastening solutions for concrete and masonry, suitable for insulation materials such as mineral wool, EPS, XPS and fibreglass.



During construction, The bottom plate is glued to the surface of the air tube, and then the rock cotton plate is fixed after the glue is cured. The top is stuck with a self locking washer to the rock cotton plane, press according to the thickness of the rock cotton plate, and then bend nail hook.


Images of Sqaure Base Insulation Stick Up Pin

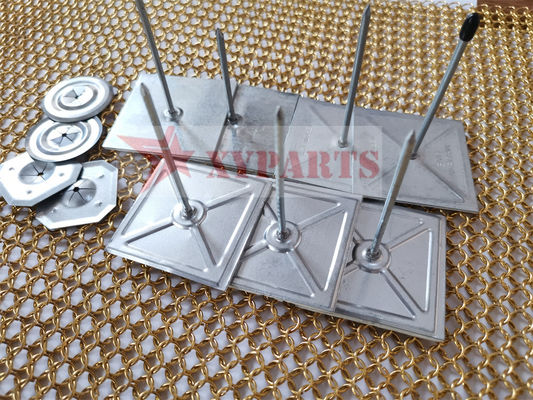

High Hardness Steel Square Base Insulation Stick Up Pin 1



Fixed parts for Sqaure Base Insulation Stick Up Pin

speed clips type size material center hole diameter surface treatment
round type self locking washer 15mm galvanized steel, stainless steel, aluminum 2.5mm





















mild steel:

zinc coated



sttainless steell: polished



aluminum alloy:

Anti-ultraviolet coating black color

round type self locking washer 20mm galvanized steel, stainless steel, aluminum 2mm-3mm
round type self locking washer 25mm galvanized steel, stainless steel, aluminum 2mm-5mm
round type self locking washer 32mm galvanized steel, stainless steel, aluminum 2mm-5mm
round type self locking washer 38mm galvanized steel, stainless steel, aluminum 2mm-5mm
round type self locking washer 50mm galvanized steel, stainless steel, aluminum 3mm-8mm
square type self locking washer 32mmx32mm galvanized steel, stainless steel, aluminum 2.7mm, 3mm
square type self locking washer 29mmx31mm galvanized steel, stainless steel, aluminum 2.5mm,
square type self locking washer 65mmx65mm galvanized steel, stainless steel, aluminum 2.7mm, 3mm

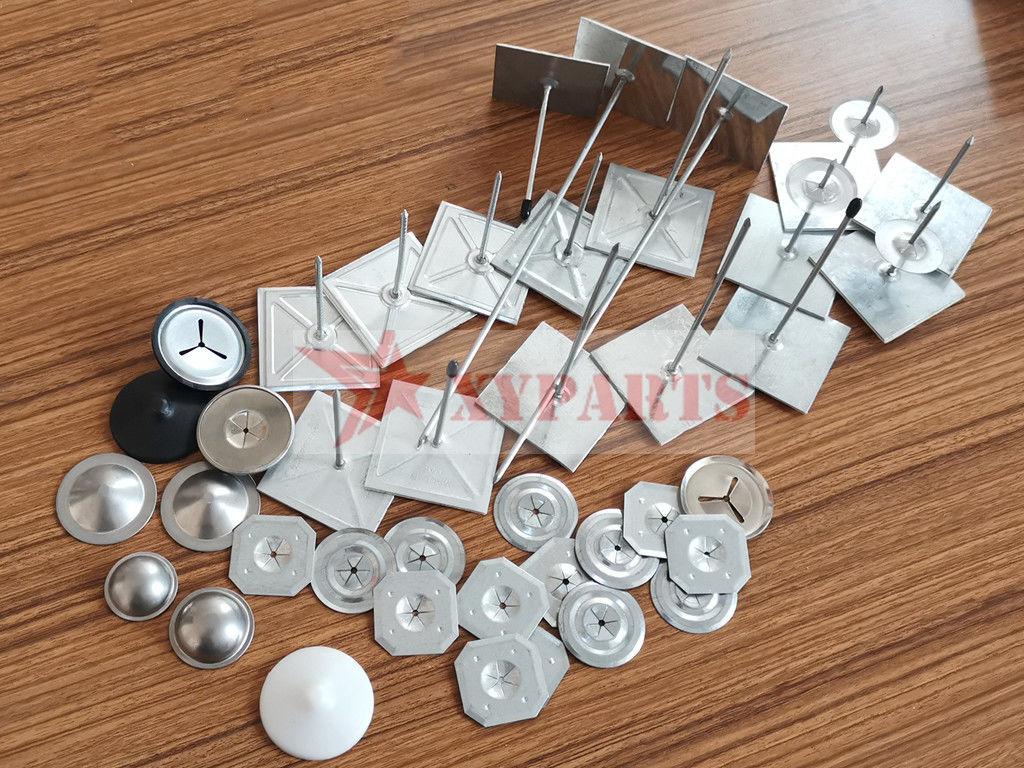

High Hardness Steel Square Base Insulation Stick Up Pin 2


HEBEI XIANGYI METAL PRODUCT CO.,LTD

HEBEI XIANGYI specializes in the production and operation of various standard and non-standard insulation fasteners. Our company established in 2011 and covers an area of more than 13,000 square meters, with a construction area of more than 9,000 square meters. We have more than 50 sets of fastener production equipment. hebei xiangyi has perfect testing equipment and supporting facilities for production, safety and environmental protection. We have passed the ISO 9001-2015 international quality system certification and have a strict product quality control system. HEBEI XIANGYI adheres to the mission of "With first-class management and technology to provide users with high-quality products. Serve our customers with advanced marketing concepts."

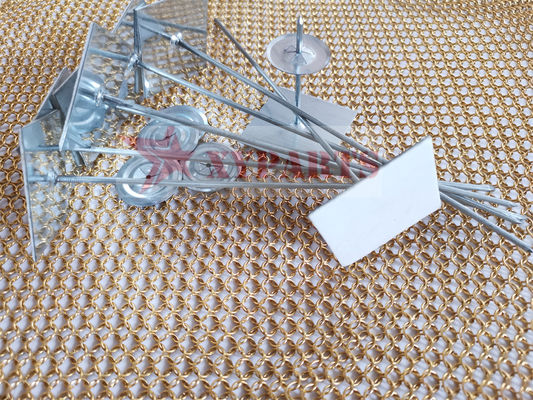

High Hardness Steel Square Base Insulation Stick Up Pin 3

High Hardness Steel Square Base Insulation Stick Up Pin 4

Why choose our HEBEI XIANGYI insulation fasteners?

1.We choose the best quality materials for making insulation fasteners
2.We do copper plating, zinc coated and phosphating pretreatment for the raw material using drawing machine.
3.We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard(BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
4.We use the automatic riveting machine to install .
5.After rust prevention, XIANGYI insulation fasteners can suitable for long time ship on the sea.
6.Short delivery time because of our reasonable production flow management
