Perforated Acoustical Insulation Impaling Clips

Perforated Acoustical Insulation Impaling Clips
Perforated Acoustical Insulation Impaling Clips Perforated Acoustical Insulation Impaling Clips Perforated Acoustical Insulation Impaling Clips Perforated Acoustical Insulation Impaling Clips Perforated Acoustical Insulation Impaling Clips

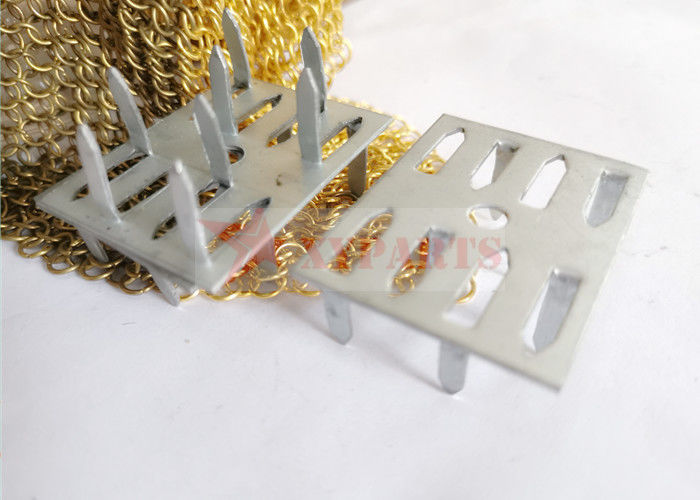

Large Image :  Perforated Acoustical Insulation Impaling Clips

Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: 38 / 50-XY
Payment & Shipping Terms:
Minimum Order Quantity: 3000 pcs
Packaging Details: carton package
Delivery Time: 12 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 280000 pcs within 30 days

Perforated Acoustical Insulation Impaling Clips

Description
Product Name: Acoustic Perforated Impaling Clips Usage: Attached 703 Board
Material Thickness: 1mm Clip Size: 38/50-15, 38/54-20
Materical: SS304 , MS, GS Finished: Zinc Plated
Company Type: Manufacturer Sample: Free
High Light:

Perforated acoustical insulation impaling clips

,

SS304 acoustical insulation impaling clips

,

OEM impaling clips for acoustic panels



Stainless Steel Metal Acoustic Perforated Impaling Clips For Attached 703 Board




Technical specification of the acoustic perforated impaling clips



molde Clip size height material thickness  materials
XY-3850 38 x 50 mm  15 mm  1 mm SS , MS , GS
XY-3854 38 x 54 mm  20 mm  1 mm



standard materials 1.Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2.Steel:C45(K1045), C46(K1046),C20
3.Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4.Bronze: C51000, C52100, C54400, etc
5.Iron: 1213, 12L14,1215
6.Aluminum: Al6061, Al6063
Installation guide The impaling clips are installed on the wall by either 1 drywall screw (not included) or attached with adhesive (Multi-Seal 180). 4-6 impaling clips are recommended per standard 2' x 4' panel making sure one impaling clip is placed in each corner.
others details of impaling clips Color:Plain, blue plated, white plated, yellow plated,black.
Standard:ISO,GB,DIN,JIS,ANSI
Cetificate:ISO9001-2008,SGS,ROHS
Function:Aatomobile,electronic,mechinery
Customized size and spec /OEM available

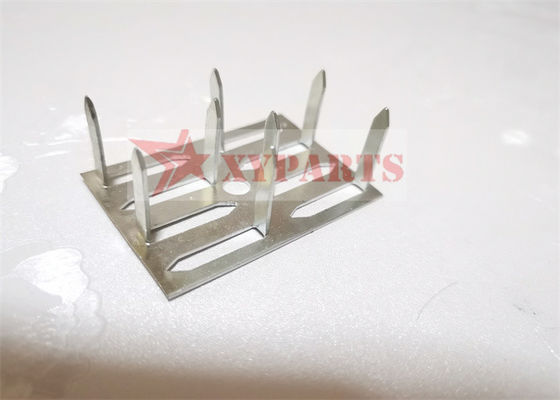

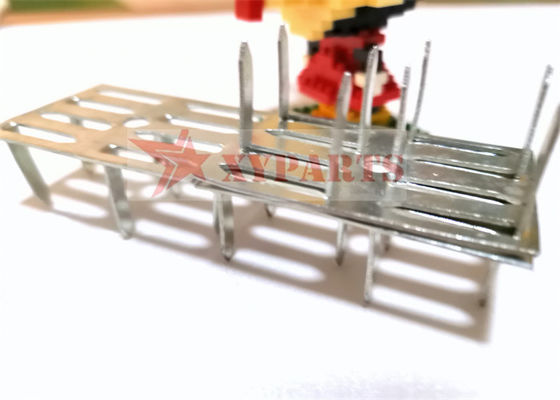

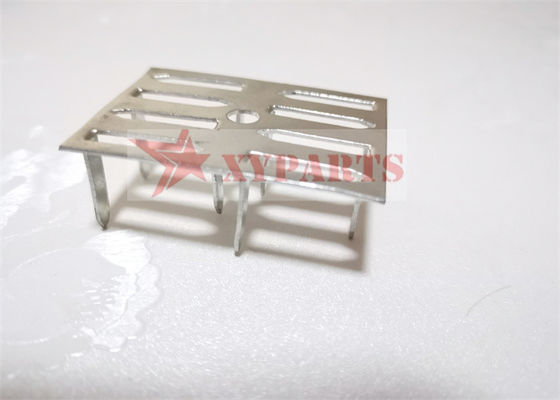

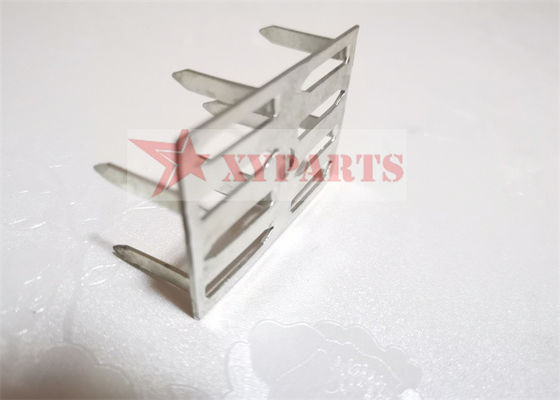

Image details of acoustic perforated impaling clips

Perforated Acoustical Insulation Impaling Clips 0




Package details of the acoustic perforated impaling clips

impaling clip size standard loading per carton  carton size
38mm x 50mm 1000 pcs / 15kgs  41cm x28 cm x 17cm
38mm x 54mm 1000 pcs /15.5kgs  41cm x28 cm x 17cm



we also accept customized package for the acoustic perforated impaling clips




XIANGYI METAL

Perforated Acoustical Insulation Impaling Clips 1

Perforated Acoustical Insulation Impaling Clips 2
