|Production:||Automated Production||Advantage:||Pollution-free, Anti-rust,easy Install|
|Function:||Fixing Pins Insulation Materials||Pin Length:||15mm-280mm|
|Base SIZE:||50MM Or Customization||Sample:||Free|
50MM Rock Wool Insulation Pins,
Perforated Rock Wool Insulation Pins,
Aluminum rockwool pin
Perforated rock wool Insulation pins are secured with General Purpose Adhesive, specially formulated to bond to metal, masonry and other sound substrates. Surfaces must be clean and dry before adhesive is applied. Some protective coatings are not compatible with adhesives and it is recommended that the user make test bonds before proceeding with the application.
Most important technical points as follows:
1. why must choose anneaded metal wire?
soft wire is easily for bending when fixing rock wool materials with self locking washer.
2. why we choose 2.7mm or 3mm wire to make the nails?
2.7mm and 3mm thickness wire is standard size for insulation pins. at same time, the pin length is decide the pin diameter.
3. why we choose hardness metal sheet for making the square base?
hardness metal sheet is more firmly , no-shedding, nondeformable.
Specifications of rock wool perforated base pins
|tape base||base thickness||pin diameter||pin length||material|
|50x50mm||0.4mm||12ga/3mm||38mm-230mm||mild steel / stainless steel|
|40x40mm||0.4mm||2.5mm/2.7mm||15mm-120mm||mild steel / stainless steel|
|35x35mm||0.4mm||2mm, 2.2mm||15mm-65mm||mild steel / stainless steel|
|accept custom||accept custom||accept custom||mild steel / stainless steel|

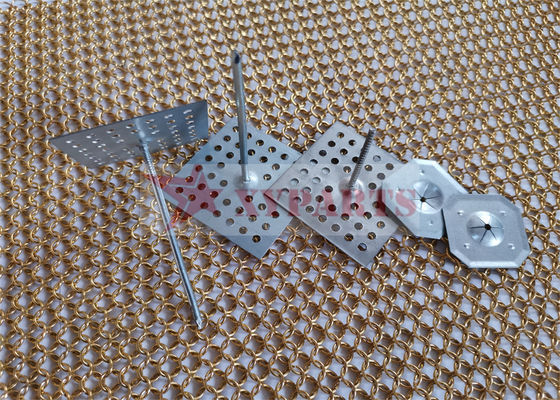

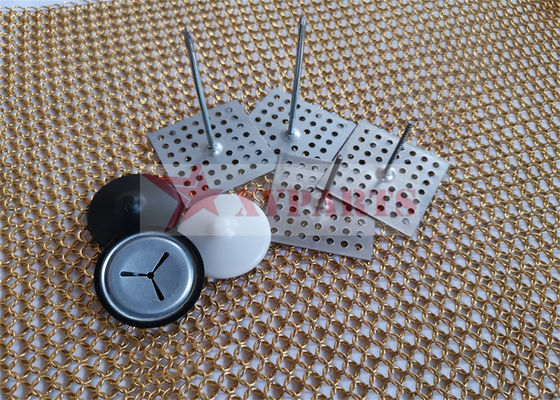

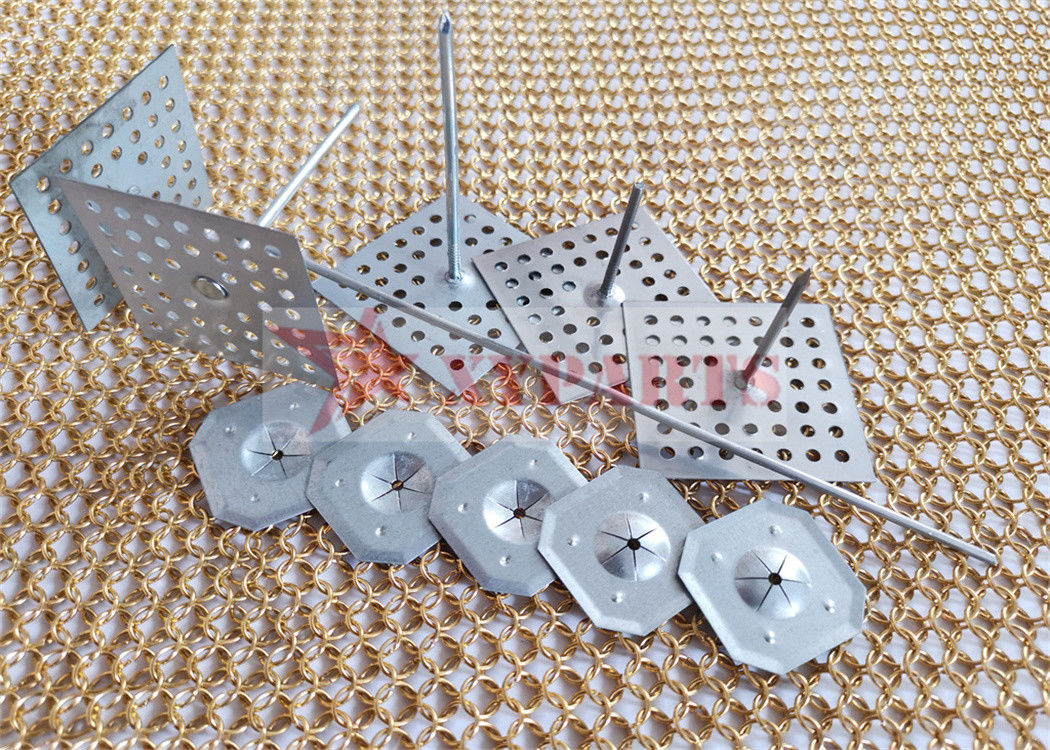

Images of rock wool perforated base pins
Package details of rock wool perforated base pins
|perforated base insulation pins||38mm||1800||35×35×35CM||16.4kgs|
|perforated base insulation pins||45mm||1500||35×35×35CM||14.7kgs|
|perforated base insulation pins||63mm||1000||35×35×35CM||10.8kgs|
|perforated base insulation pins||114mm||500||35×35×35CM||6.6kgs|
|perforated base insulation pins||203mm||300||35×35×35CM||5.1kgs|
