Product Details:
|
| Production: | Air-Duct Insulation Pins | Base Tpye: | Cupped Head |
|---|---|---|---|
| Base Size: | 25mm/30mm | Pin Diameter: | 2.7mm, 3mm, 3.4mm |
| Length In Common: | 10mm, 15mm, 25mm, 38mm | PIN TYPES: | Weld Nails |
| Company Types: | Manufacturer | ODM/OEM: | Support |
| High Light: | CD Weld Air Duct Insulation Pins,HVAC Air Duct Insulation Pins,Mini cup head weld pins |
||
Quick details of the air-duct insulation pins
| Material: | Carbon steel, stainless steel, copper |
| Keywords: | 12 ga metal insulation pin |
| Packaging Details | Packing can be customized as per equirements |
| Pin length: | 1-1/2",2-1/2",3-1/2",4-1/2",5-1/2" |
| Production workmanship: | Automated production |
| Report: | Material test report and dimension measurement report |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Surface treatment: | zinc coated/ copper plated |
| Washer Dia.: | 25mm/30mm for your choose |
| Type: | cupped head CD weld pins |
Destripations of air-duct insulation pins
Mini-Cup Head Capacitor Discharge Weld Pins are manufactured to be a single robust fastener. The precision attachment of cap and shank allows for better contact when welding. The optional protected adhesive on the underside of the cap acts as a superior insulator over traditional paper washers.
Specifications details of air-duct insulation pins
| cup base size | pin diameter | pin length | material | ODM/OEM |
| 25mm | 3mm, 3.4mm | 10mm, 15mm, 20mm, 25mm, 38mm | MS, SS, CO | Support |
| 30mm | 3mm, 3.4mm | 10mm, 15mm, 20mm, 25mm, 38mm | MS. SS,CO | support |

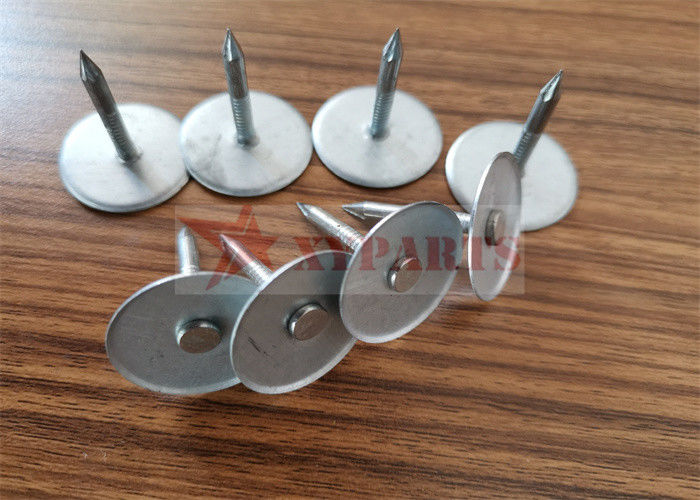

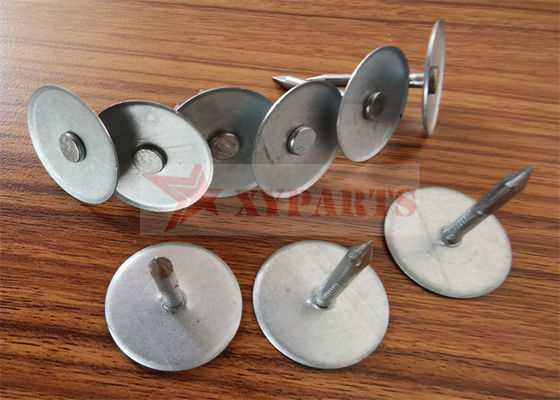

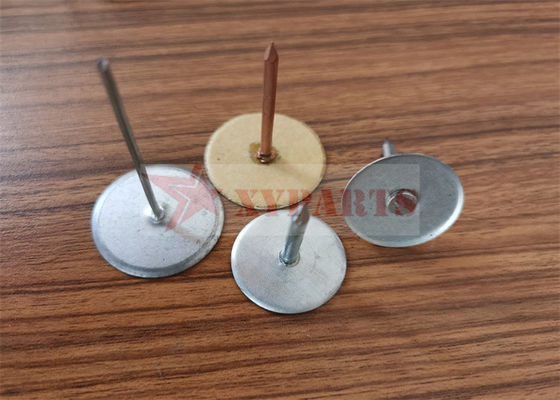

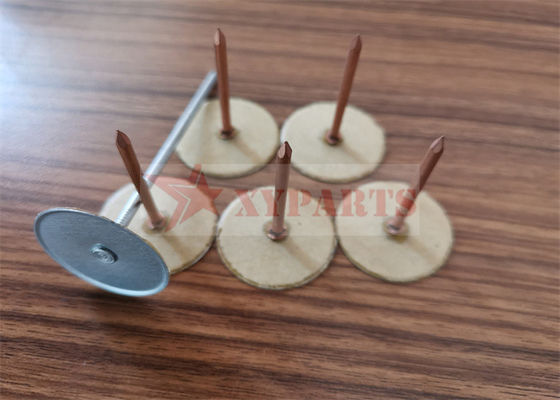

Images of air-duct insulation pins
Applications introduction of the Air-Duct Insulation Pins
| recommended for | pin length before welding |
| 1/2" insulation(all densities) | 12.67mm |
| 1" insulation(1-1/2"ib density) | 17.63mm |
| 1" foam | 25.55mm |
| 1"insulation(3ib densities) | 23.72mm |
| 1-1/2" insulation(all densities) | 28.42mm |
| 2"insulation(1-1/2"-2" ib density) | 37.95mm |
| 2"insulation(3ib densities) | 48.77mm |
| 3"insulation(all densities) | 69.85mm |
| 4" insulation(all densities) | 95.00mm |
