Product Details:
Place of Origin: CHINA
Brand Name: HUIHAO CUSTOM
Certification: ISO9001-2015
Model Number: speed clips
Payment & Shipping Terms:
Minimum Order Quantity: 10000 sets
Packaging Details: 100 pcs per bag or 60 pcs per bag or 500pcs per bags+ carton packages.
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500000 sets per 30 days

Stainless Steel Solar Panel Clips And J Hook For Fixing Wire Mesh

Description
Product Name: Solar Panel Clips And J Hook J Nail Size: 2.5mmx95mm
Washer Size: 29mmx31mm, 30mmx30mm, 31mmx62mm Application: Fixing Mesh On Solar Panel
Finished: Black Color Anti-ultraviolet Coating Company Type: Manufacturer
Sample: Support OEM/ODM: Support
High Light:

Stainless Steel Solar Panel Clips

,

OEM Solar Panel Clips

,

ISO9001 speed clips



Stainless Steel Solar Panel Clips And J Hook For Fixing Wire Mesh




Main technical details of solar panel clips

  • For the j hook nails, the material is must choose anneaded steel wire /stainless steel wire or soft aluminum wire. it is very important for the fixing wire mesh. soft wire is easily for bending.
  • For the speed locking washer, we must choose hardness material to make sure to lock firmly and nondeformable. at the same time, we must concider left time, so uv coated for aluminum washer or choose stainless steel material to make rustproof.

Specification details of the solar panel clips-J hook nails



type material thickness length surface treatment
J pins aluminum 2.4mm 95 mm, 114 mm polished
J pins stainless steel 2.4mm 114 mm , 120 mm polished

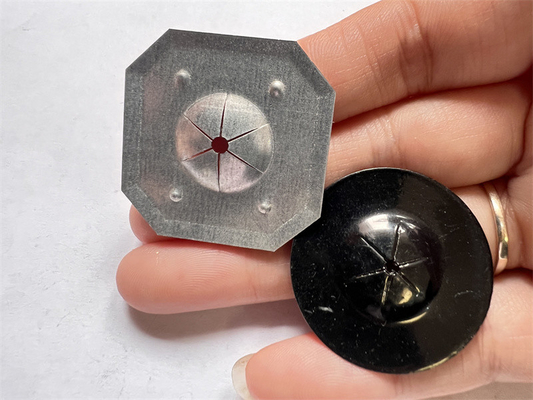

specification details of the Solar panel aluminum anchor pins-self locking washer



type material thickness size finished
square self locking washer aluminum alloy, stainless steel
zinc coated steel


0.4mm for SS
0.6MM for AL


29mmx31mm uv finished
round self locking washer 32mm uv finished
slot self locking washer 50mmx30mm uv finished
custom custom To request

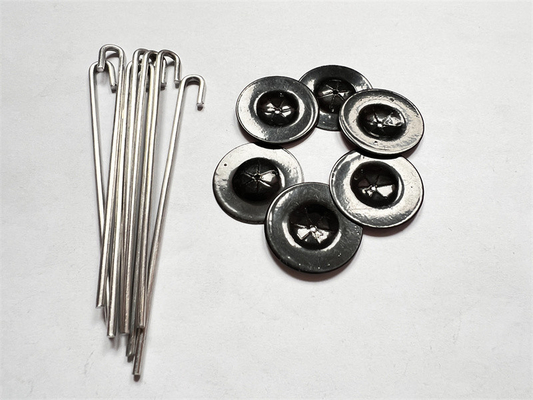

Images details of solar panel clips

Stainless Steel Solar Panel Clips And J Hook For Fixing Wire Mesh 0


Usages of the solar panel clips

Slide the speed washer onto the shaft of the clip assembly until snug. Tighten speed washer to panel edge to immobilize the mesh. Cut of the clip assembly rod flush with the exterior of the speed washer by cutter.
