M8 Plug Tube Galvanized Steel Rockwool Insulation Pins

M8 Plug Tube Galvanized Steel Rockwool Insulation Pins
M8 Plug Tube Galvanized Steel Rockwool Insulation Pins M8 Plug Tube Galvanized Steel Rockwool Insulation Pins M8 Plug Tube Galvanized Steel Rockwool Insulation Pins M8 Plug Tube Galvanized Steel Rockwool Insulation Pins

Large Image :  M8 Plug Tube Galvanized Steel Rockwool Insulation Pins

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: XY-GS-M8
Payment & Shipping Terms:
Minimum Order Quantity: 10000 SETS
Packaging Details: CARTON+ PALLET
Delivery Time: 7 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 400000SETS PER 28 DAYS

M8 Plug Tube Galvanized Steel Rockwool Insulation Pins

Description
Name: M8 PLUG TUBE Insulation Pins Material: Galvanized Steel. Stainless Steel,
Type: OUTER WALL METAL PLUG PINS Sample: SUPPORT
Company Type: FACTORY Odm/oem: Support
High Light:

M8 rockwool insulation pins

,

Galvanized rockwool insulation pins

,

oem rockwool pins



M8 Plug Tube Galvanized Steel Rock Wool Insulation Pins With 35mm Round Base




Features OF M8 Galvanized Steel Rock wool insulation pins

A. Anti-aging: the thermal insulation nails can keep original type and elasticity for a long time.

B. Anti-temperature shock: it will not harden under higher temperature.

C. Higher bearing capacity of thermal insulation nails: the thermal insulation nails can fix bigger benzene board area.

D. Anti-corrosion: the material is made by galvanized steel or stainless steel ,so the thermal insulation nails will not get rusty to corrode wall.

E. Well-insulated: this type of thermal insulation nails can keep warm to maximum effect


Specifications details of M8 Galvanized Steel Rock wool insulation pins



HVAC System Installation Galvanized Steel Metal Rock Wool Insulation Pins 2

To fix fire-resistant soft or pressure-resistant insulating materials, such as:  Mineral / glass wool,Light building boards made of wood wool Foam glass tiles.

Also suitable for:

  • Polystyrene boards,
  • Coir matting,
  • Building materials,
  • Concrete,
  • Hollow blocks made from lightweight concrete,
  • Vertically perforated brick,
  • Perforated sand-lime brick,
  • Solid sand-lime brick,
  • Natural stone with dense structure,
  • Aerated concrete,
  • Solid brick made from lightweight concrete
Pin size Plug diameter Plug length Round base Plate size Washer thickness Carton
8*50 8mm 50mm 30/35mm 0.7mm 250pcs
8*60 8mm 60mm 30/35mm 0.7mm 250pcs
8*90 8mm 90mm 30/35mm 0.7mm 250pcs
8*110 8mm 110mm 30/35mm 0.7mm 250pcs
8*140 8mm 140mm 30/35mm 0.7mm 250pcs
8*170 8mm 170mm 30/35mm 0.7mm 250pcs
8*230 8mm 230mm 30/35mm 0.7mm 250pcs
8*300 8mm 300mm 30/35mm 0.7mm 250pcs

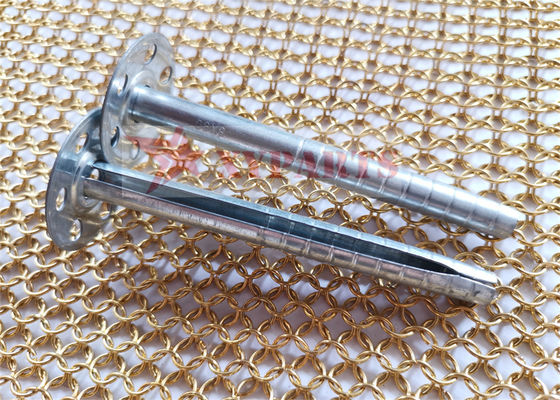

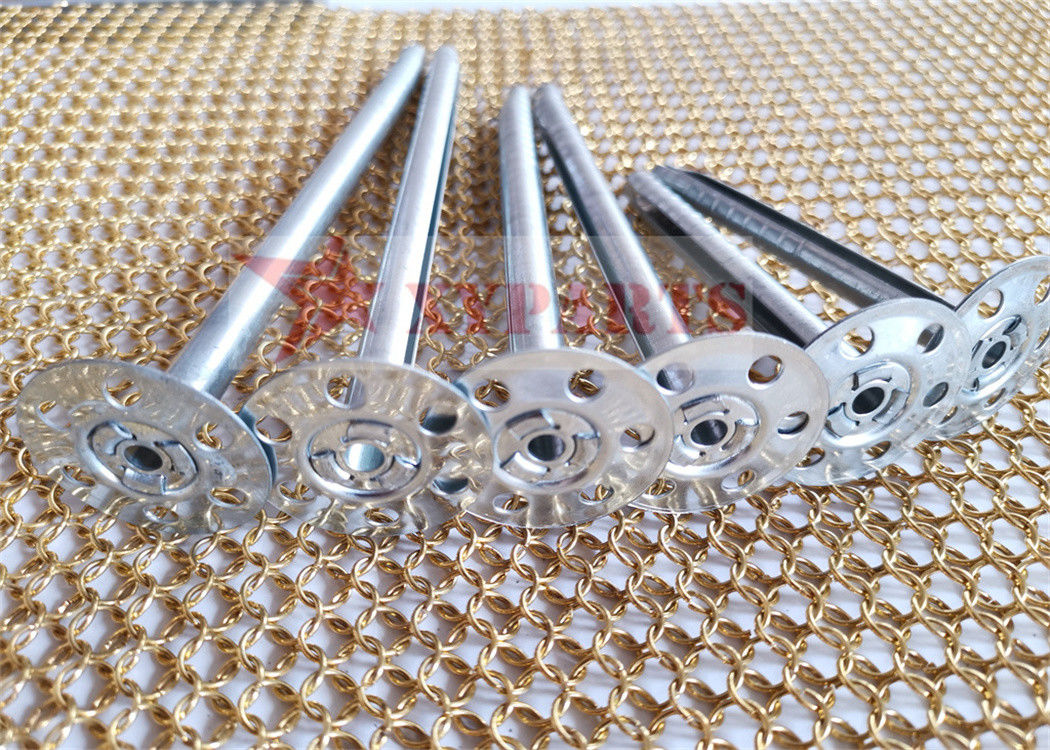

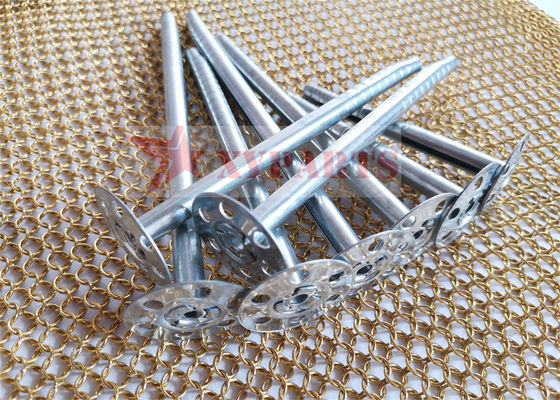

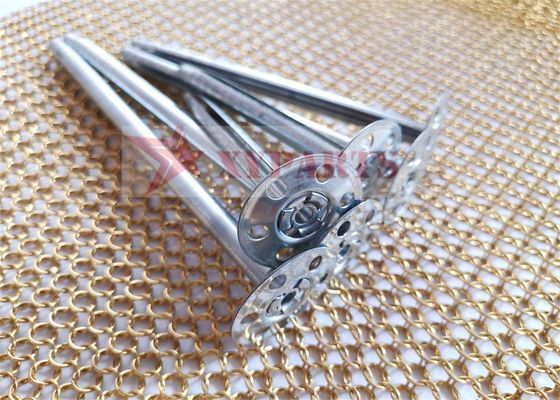

Images of M8 Galvanized Steel Rock wool insulation pins



M8 Plug Tube Galvanized Steel Rockwool Insulation Pins 1

M8 Plug Tube Galvanized Steel Rockwool Insulation Pins 2


Usage of Galvanized steel rock wool insulation pins/expansion nails

70mm insulation fasteners for 20-40mm insulation panels
90mm insulation fasteners for 40-60mm insulation boards
110mm insulation anchors for 60-80mm insulation slabs
130mm insulation anchors for 80-100mm insulation slabs
150mm insulation fixings for 100-120mm insulation slabs
180mm insulation fixings for 120-150mm insulation boards

M8 Plug Tube Galvanized Steel Rockwool Insulation Pins 3
  • Highly versatile in a wide range of construction materials
  • Fix with hammer or SDS drill adapter
  • Fixes into concrete and masonry with tiny pilot hole
  • Fixes directly into lightweight block without pre-drilling

Related tools

High Quality Insulation Pin Plastic Dowel for outer wall




XIANGYI METAL INTRODUCTION



M8 Plug Tube Galvanized Steel Rockwool Insulation Pins 5


FAQ



Q1. How about the Delivery time?
A. About 20-35 days.
Q2. What kind of payments does jenor support?
A. T/T,L/C ,D/Pare accepted or other methods negotiable.
Q3. Can you produce according to customers' design?
A. Sure, we are professional manufacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.
